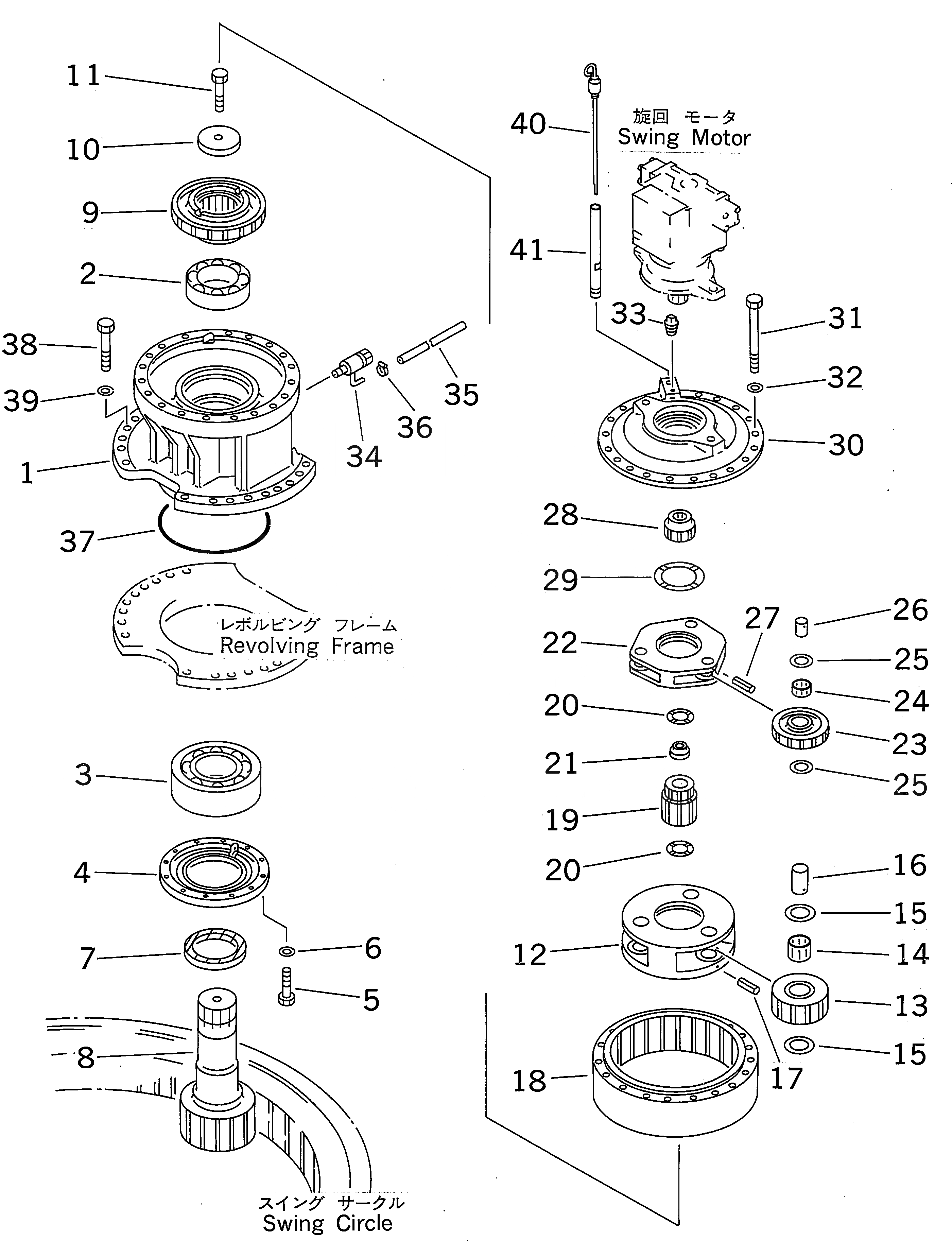

Запчасти Komatsu PC400ST-6LC МЕХАНИЗМ ПОВОРОТА(№-) ПОВОРОТН. КРУГ И КОМПОНЕНТЫ

1

208-26-62170

CASE

2

06000-23124

BEARING

3

06000-22326

BEARING

4

208-26-52262

COVER

|4

208-26-52261

COVER

5

01010-81040

BOLT

|5

01010-51040

BOLT

6

01643-31032

WASHER

7

208-26-61290

SEAL

|7

07012-00150

SEAL

8

208-26-52242

SHAFT

9

208-26-61150

COUPLING

10

208-26-52230

PLATE

11

205-32-51211

BOLT

12

207-27-62170

CARRIER,2ND

13

207-27-62140

GEAR

14

207-27-61230

BEARING

15

20Y-27-21250

WASHER

16

207-27-61250

PIN

17

20Y-27-21290

PIN

18

207-27-62150

GEAR

19

207-27-62130

GEAR

20

20Y-27-13310

WASHER

21

207-26-61180

GUIDE

22

208-26-62140

CARRIER,1ST

23

208-26-62120

GEAR

24

20Y-27-21260

BEARING

25

20Y-27-21240

WASHER

26

20Y-27-21220

PIN

27

20Y-27-21280

PIN

28

208-26-62110

GEAR

29

20Y-27-11250

SPACER

30

208-26-62161

COVER

|30

208-26-62160

COVER

31

207-27-52341

BOLT

32

01643-31845

WASHER

33

07042-00312

PLUG

|33

07042-00108

PLUG

34

07730-40004

VALVE

35

207-26-31220

TUBE

36

07281-00197

CLAMP

37

07000-05335

O-RING

38

01010-52485

BOLT

39

01643-32460

WASHER

40

208-26-62180

GAUGE

41

208-26-62190

FILLER
