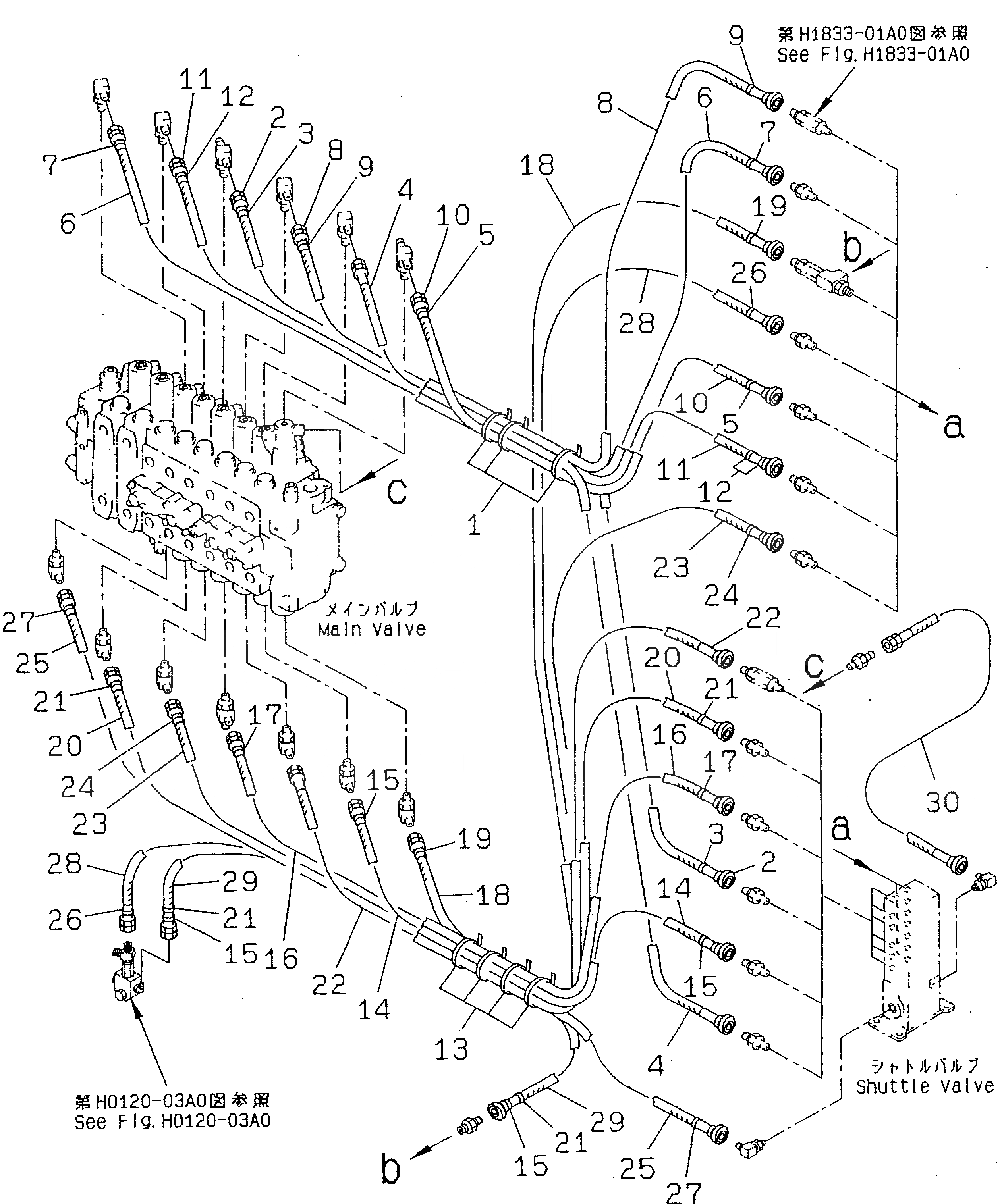

Запчасти Komatsu PC400ST-6LC ОСНОВН. ЛИНИЯ PPC (КЛАПАН ЛИНИИ PPC) (НИЖН. РАЗГРУЗКА ПОГРУЗ.)(№-) ГИДРАВЛИКА

1

08034-00536

BAND

2

20Y-62-22660

HOSE¤ 470MM,(BOOM RAISE)

3

20Y-62-22850

BAND¤ GREEN

4

207-62-63420

HOSE¤ 920MM,(LEFT TRAVEL¤ FORWARD)

5

20Y-62-22830

BAND¤ WHITE

6

20Y-62-22680

HOSE¤ 520MM,(BUCKET CURL)

7

20Y-62-22840

BAND¤ BLACK

8

20Y-62-22670

HOSE¤ 355MM,(SWING TO LEFT)

9

20Y-62-22790

BAND¤ RED

10

20Y-62-22660

HOSE¤ 470MM,(ARM OUT)

11

20Y-62-22720

HOSE¤ 535MM,(RIGHT TRAVEL¤ FORWARD)

12

20Y-62-22820

BAND¤ BLUE

13

08034-00536

BAND

14

20Y-62-22720

HOSE¤ 535MM

15

20Y-62-22790

BAND¤ RED

|15

20Y-62-22790

BAND¤ RED

16

20Y-62-22740

HOSE¤ 675MM

17

20Y-62-22860

BAND¤ BROWN

18

20Y-62-22750

HOSE¤ 620MM

19

20Y-62-22820

BAND¤ BLUE

20

20Y-62-22760

HOSE¤ 840MM

21

20Y-62-22830

BAND¤ WHITE

|21

20Y-62-22830

BAND¤ WHITE

22

20Y-62-22770

HOSE¤ 700MM

23

20Y-62-22780

HOSE¤ 650MM

24

20Y-62-22850

BAND¤ GREEN

25

20Y-62-16540

HOSE¤ 800MM

26

20Y-62-22810

BAND¤ YELLOW

27

20Y-62-22840

BAND¤ BLACK

28

207-62-63410

HOSE¤ 570MM

29

20Y-62-22660

HOSE¤ 470MM

30

20Y-62-22680

HOSE¤ 520MM
