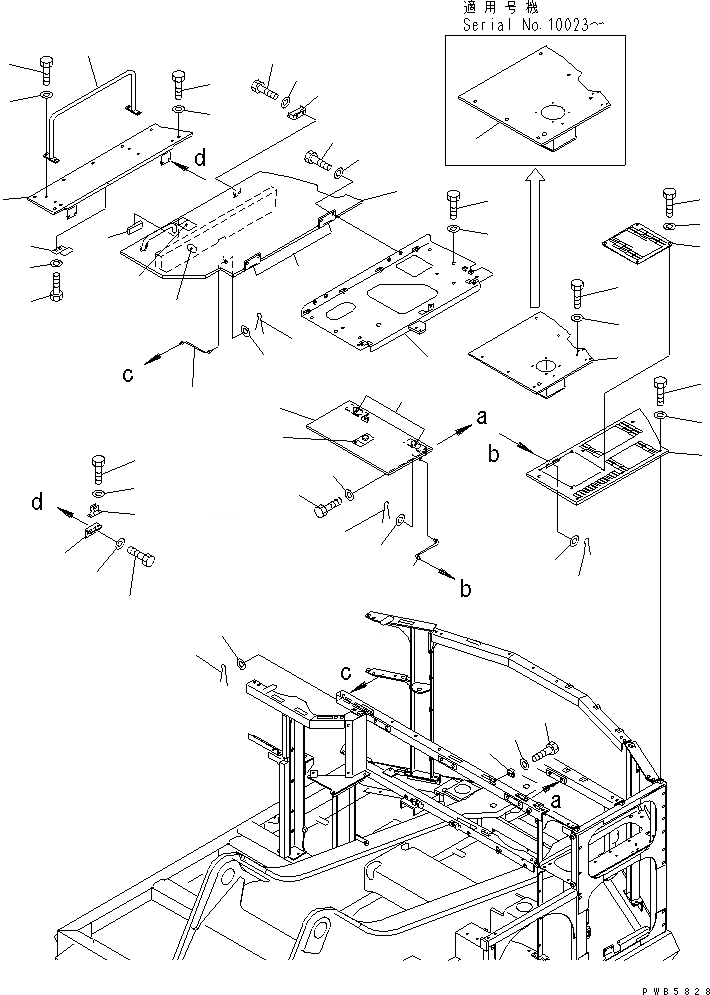

Запчасти Komatsu PC400ST-6 КАПОТ(№8-) ЧАСТИ КОРПУСА
1
2
3
4
4
5
6
7
7A
7B
8
9
9
10
10
11
12
13
14
15
16
17
18
19
19A
19B
19C
20
21
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
36
36
37
37
37
37
38
39
40
1
208-54-67322
COVER
2
01010-81230
BOLT
|2
01010-51230
BOLT
3
175-54-34170
WASHER
|3
01643-31232
WASHER
4
208-54-67335
COVER
|4
208-54-67334
COVER
5
01010-51230
BOLT
6
175-54-34170
WASHER
|6
01643-31232
WASHER
7
208-54-67340
COVER
7A
205-46-63280
HINGE
7B
426-54-11961
LOCK
8
203-54-56630
ROD
9
04050-11612
PIN
10
01643-30623
WASHER
11
20Y-54-29650
BRACKET
12
01010-81220
BOLT
|12
01010-51220
BOLT
13
01643-31232
WASHER
14
01010-81230
BOLT
|14
01010-51230
BOLT
15
01643-31232
WASHER
16
208-54-67354
COVER
17
01010-81230
BOLT
|17
01010-51230
BOLT
18
175-54-34170
WASHER
19
208-54-67362
COVER
19A
205-46-63280
HINGE
19B
208-54-67912
SHEET
19C
426-54-11961
LOCK
20
208-54-67390
BAR
21
04050-13022
PIN
22
01643-31445
WASHER
23
208-54-67372
COVER
24
01010-81230
BOLT
|24
01010-51230
BOLT
25
175-54-34170
WASHER
|25
01643-31232
WASHER
26
208-54-67460
HANDRAIL
27
01010-81230
BOLT
|27
01010-51230
BOLT
28
01643-31232
WASHER
29
208-54-67580
COVER
30
01010-81230
BOLT
|30
01010-51230
BOLT
31
01643-31232
WASHER
32
207-54-61141
PLATE
33
20Y-54-12941
PLATE
34
207-54-31870
BRACKET
35
20Y-54-12920
CLAMP
36
01010-81020
BOLT
|36
01010-51020
BOLT
37
01643-31032
WASHER
38
01010-81220
BOLT
|38
01010-51225
BOLT
39
01643-31232
WASHER
40
20Y-54-12760
SEAL
