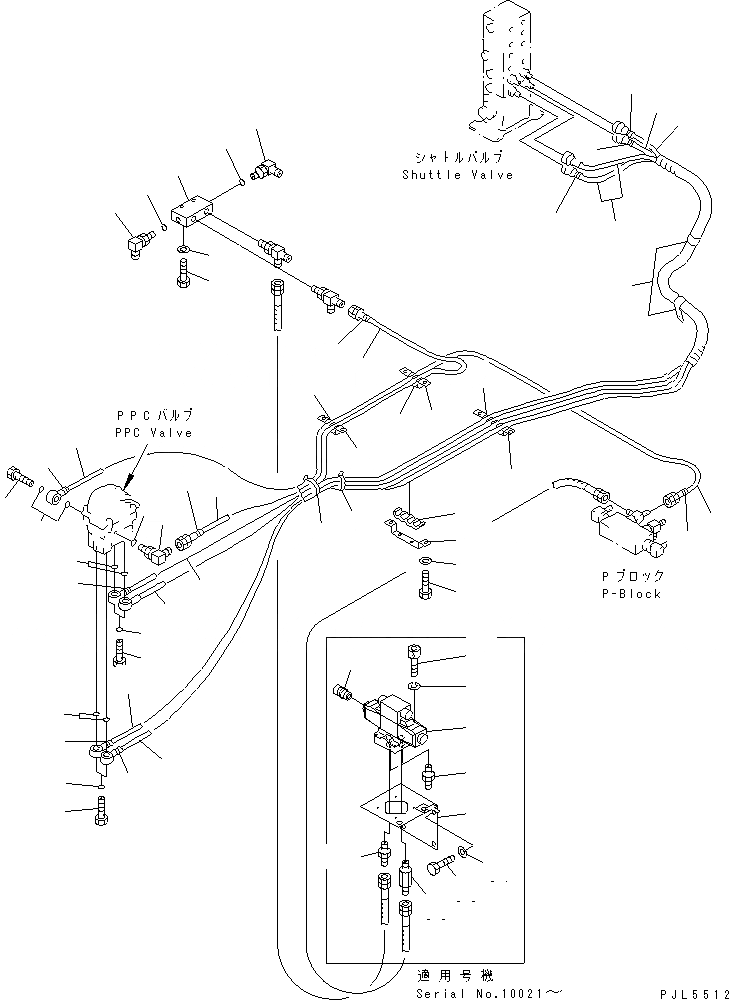

Запчасти Komatsu PC400ST-6 PPC ЛИНИЯ ХОДА (НИЖН. КРЕПЛЕНИЕ)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

08034-00536

BAND

2

207-62-62720

HOSE¤ 2950MM

3

207-62-62730

HOSE¤ 3000MM

4

207-62-62740

HOSE¤ 3050MM

5

20Y-62-22170

CLAMP

6

20Y-62-22790

BAND¤ RED

7

20Y-62-22820

BAND¤ BLUE

8

20Y-62-22850

BAND¤ GREEN

9

20Y-62-22870

HOSE¤ 1100MM

10

20Y-62-22790

BAND¤ RED

11

20Y-62-22880

HOSE¤ 980MM

12

20Y-62-22820

BAND¤ BLUE

13

20Y-62-22170

CLAMP

14

702-16-53240

PLUG

15

07000-02018

O-RING

16

07235-10311

ELBOW

17

07002-01423

O-RING

18

08034-00519

BAND

19

20Y-62-18890

BOLT

20

07000-02015

O-RING

21

20Y-62-22180

CLAMP

22

01010-81016

BOLT

23

01643-31032

WASHER

24

20Y-62-15831

BLOCK

25

07235-10311

ELBOW

26

07002-01423

O-RING

27

07235-10311

ELBOW

28

07002-01423

O-RING

29

01010-81045

BOLT

30

01643-31032

WASHER

31

209-60-12830

VALVE ASS'Y

32

21T-06-12530

CONNECTOR

33

01252-40535

BOLT

34

01601-20513

WASHER

35

208-72-67870

BRACKET

36

01010-81020

BOLT

37

01643-31032

WASHER

38

21T-62-77410

CONNECTOR

39

566-35-14370

UNION
