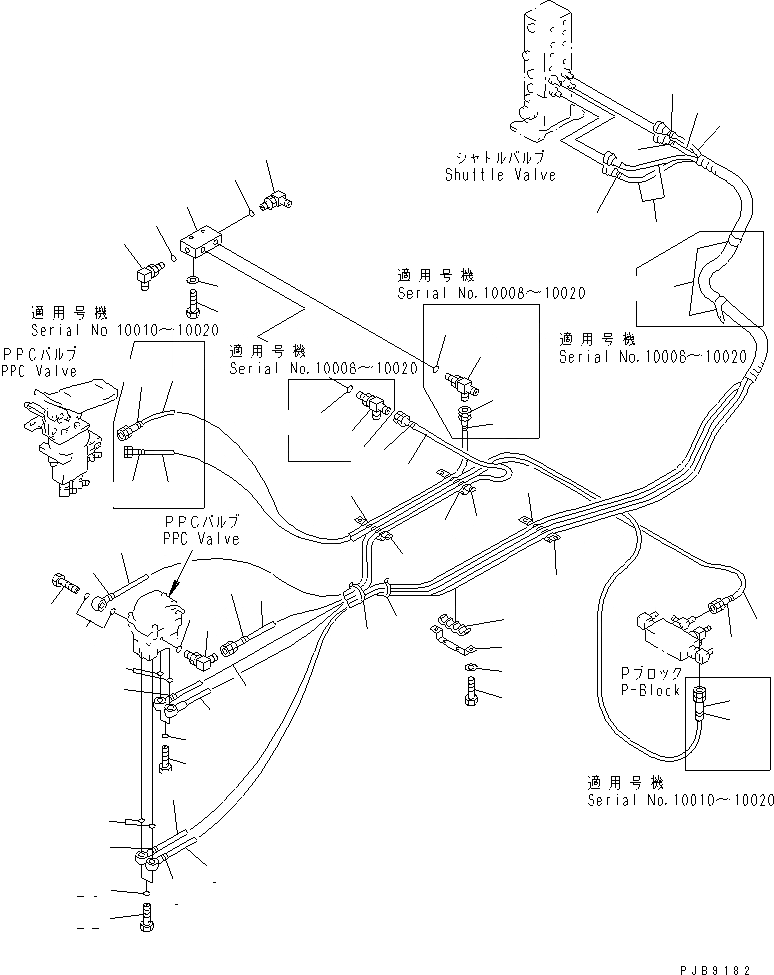

Запчасти Komatsu PC400ST-6 PPC ЛИНИЯ ХОДА ( АКТУАТОР)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

08034-00536

BAND

2

207-62-62720

HOSE¤ 2950MM

3

207-62-62730

HOSE¤ 3000MM

4

207-62-62740

HOSE¤ 3050MM

5

20Y-62-22170

CLAMP

6

20Y-62-22790

BAND¤ RED

7

20Y-62-22820

BAND¤ BLUE

8

20Y-62-22850

BAND¤ GREEN

9

20Y-62-22870

HOSE¤ 1100MM

10

20Y-62-22790

BAND¤ RED

11

20Y-62-22880

HOSE¤ 980MM

12

20Y-62-22820

BAND¤ BLUE

13

20Y-62-22170

CLAMP

|13

20Y-62-23370

HOSE¤ 1200MM

14

20Y-62-22790

BAND¤ RED

15

20Y-62-23380

HOSE

16

20Y-62-22810

BAND¤ YELLOW

17

702-16-53240

PLUG

18

07000-02018

O-RING

19

07235-10311

ELBOW

20

07002-01423

O-RING

21

08034-00519

BAND

22

20Y-62-18890

BOLT

23

07000-02015

O-RING

24

20Y-62-22180

CLAMP

25

01010-81016

BOLT

26

01643-31032

WASHER

27

20Y-62-15831

BLOCK

28

07235-10311

ELBOW

29

07002-01423

O-RING

30

07235-10311

ELBOW

31

07002-01423

O-RING

32

01010-81045

BOLT

33

01643-31032

WASHER

34

04434-52712

CLIP

35

21T-62-29960

TEE

36

07002-01423

O-RING
