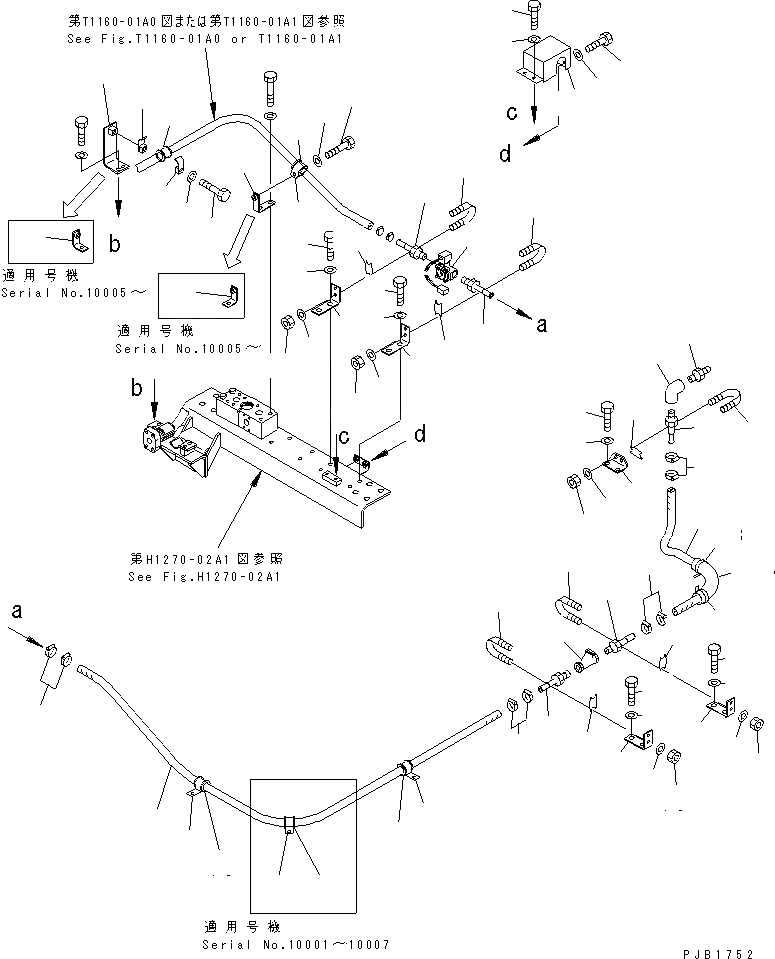

Запчасти Komatsu PC400ST-6 ВОДН. ЛИНИЯ (ШАССИ) ГИДРАВЛИКА

1

208-72-68970

VALVE ASS'Y

2

208-72-68830

JOINT

|2

208-72-68830

JOINT

3

208-72-68961

HOSE

|3

208-72-68960

HOSE

4

07281-00359

CLAMP

5

208-72-68850

BRACKET

6

01010-81235

BOLT

7

01643-31232

WASHER

8

07283-22244

CLIP

9

07283-52232

SEAT

10

01599-01011

NUT

11

01643-31032

WASHER

12

04434-53412

CLIP

|12

04434-53412

CLIP

13

07095-20627

CUSHION

|13

07095-20627

CUSHION

14

11T-61-18920

BRACKET

15

01010-81230

BOLT

16

01643-31232

WASHER

17

07283-22244

CLIP

18

07283-52232

SEAT

19

01599-01011

NUT

20

01643-31032

WASHER

21

07323-A0600

ELBOW

22

07325-30600

NIPPLE

23

207-62-51270

BRACKET

|23

208-72-68820

BRACKET

24

207-62-51270

BRACKET

|24

208-72-68980

BRACKET

25

07094-10620

CLAMP

26

07095-00628

CUSHION

27

01010-81270

BOLT

28

01643-31232

WASHER

29

07283-22244

CLIP

30

07283-52232

SEAT

31

01599-01011

NUT

32

01643-31032

WASHER

33

208-62-67540

ELEMENT

34

208-72-68990

HOSE

34A

205-62-53780

COVER

34B

08034-00536

BAND

35

208-72-68480

COVER

36

01010-81220

BOLT

37

01643-31232

WASHER
