Запчасти Komatsu PC400LCSE-8R МОТОР ХОДА (/) Y

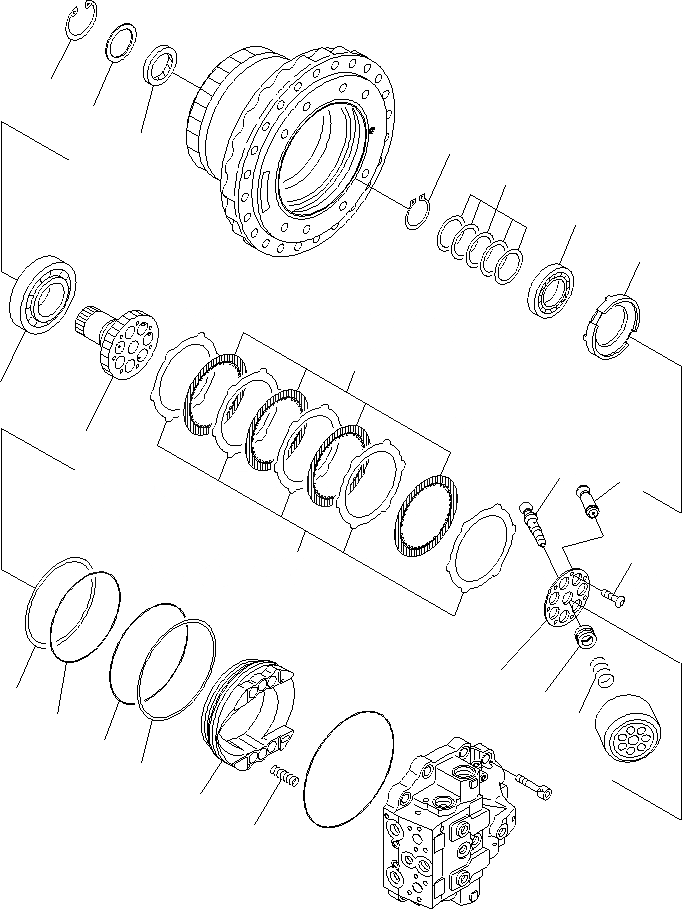

Схема запчастей Komatsu PC400LCSE-8R - МОТОР ХОДА (/) Y
9
8
7
6
5
3
4
17
16
1
2
10
15
14
13
11
12
18
20
19
21
22
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

|$1

706-8J-01421

MOTOR ASS'Y (L.H)

|$2

706-8J-01411

MOTOR ASS'Y (R.H)

|$3

706-8J-01030

MOTOR ASS'Y

|$4

706-8J-01012

MOTOR ASS'Y

|$5

THIS ASSEMBLY CONSISTS OF ALL PARTS

|$6

SHOWN IN FIGS.Y1641-01A0 TO Y1641-03A0.

1

706-8J-41610

SHAFT, DRIVE

2

706-8J-41010

BEARING

3

706-77-42890

BEARING

4

706-8J-41810

RETAINER

5

706-8J-41660

SPACER KIT

|$12

SPACER, 2.1MM

|$13

SPACER, 2.3MM

|$14

SPACER, 2.5MM

|$15

SPACER, 2.7MM

|$16

SPACER, 1.9MM

6

04064-06525

RING

7

706-8J-42330

OIL SEAL

|$19

706-8J-41620

SEAL, OIL

8

706-8J-41820

SPACER

9

04065-09030

RING, SNAP

10

706-8J-41280

SHAFT, CENTER

11

706-8J-41270

RING, CENTER

12

706-8J-41290

SPRING

13

706-8J-41260

RETAINER

14

708-23-12350

SCREW

15

706-8J-42170

PISTON SUB ASS'Y

|$28

706-8J-41161

PISTON SUB ASS'Y

16

706-7K-91340

PLATE

17

706-7K-91350

DISC

18

706-8J-91110

PISTON, BRAKE

19

07000-15230

O-RING

20

07001-05230

RING, BACK-UP

21

708-8H-15220

O-RING

22

706-8J-91120

RING, BACK-UP

23

706-8J-91130

SPRING
