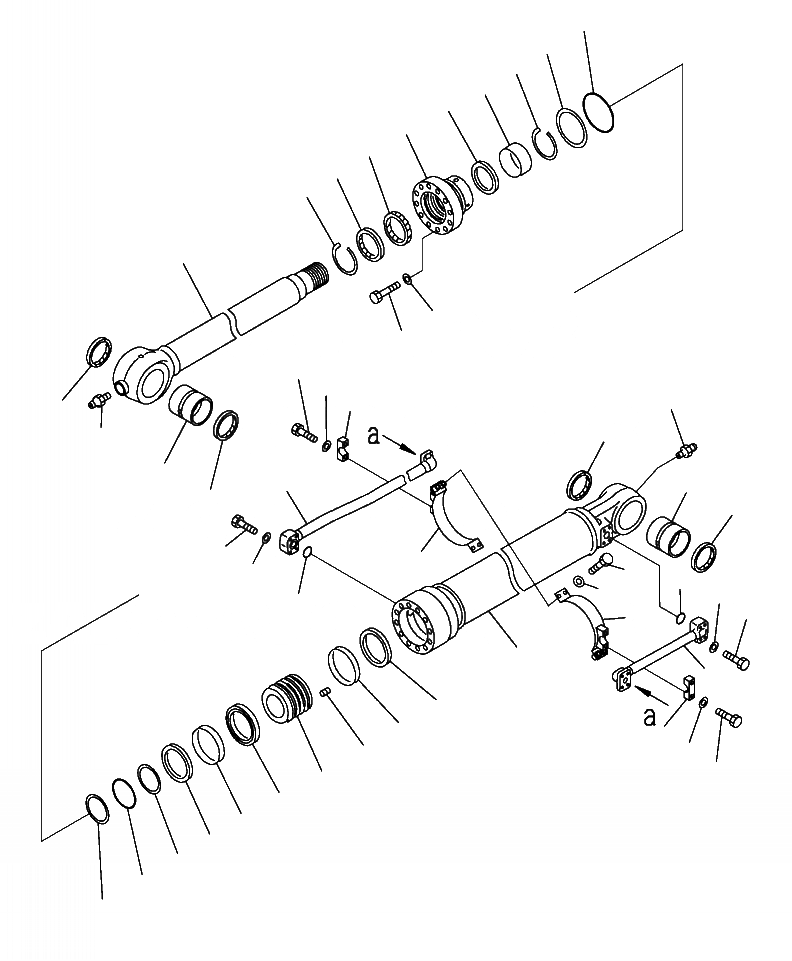

Запчасти Komatsu PC400LC-8 T-A ЦИЛИНДР КОВША РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

707-01-0F702

CYLINDER

1

707-13-16870

CYLINDER

2

707-76-10290

BUSHING

3

07145-00100

SEAL, DUST

4

07020-00000

FITTING, GREASE

5

707-58-11810

ROD

6

707-76-10140

BUSHING

7

208-70-73530

SEAL, DUST

8

07020-00000

FITTING, GREASE

9

707-27-16580

HEAD

10

198-63-94170

SEAL, DUST

11

07179-13126

RING, SNAP

12

707-52-90850

BUSHING

13

707-75-11040

RING, SNAP

14

707-51-11030

PACKING, ROD

15

707-51-11640

RING, BUFFER

16

707-35-91640

RING, BACK-UP

17

07000-15150

O-RING

18

01010-82085

BOLT

19

707-88-75310

WASHER

20

707-36-16580

PISTON

21

01310-01216

SCREW

22

707-44-16180

RING, PISTON

23

707-39-16120

RING, WEAR

24

707-44-16910

RING

25

07001-05100

RING, BACK-UP

26

07000-15100

O-RING

27

707-86-12580

TUBE

28

707-86-12570

TUBE

29

07372-21060

BOLT

30

01643-51032

WASHER

31

07000-13035

O-RING

32

707-88-25390

BRACKET

33

07372-21240

BOLT

34

01643-51232

WASHER

35

707-88-10150

CLAMP

36

01010-81245

BOLT

37

01643-31232

WASHER

|$38

707-99-72240

SERVICE KIT
