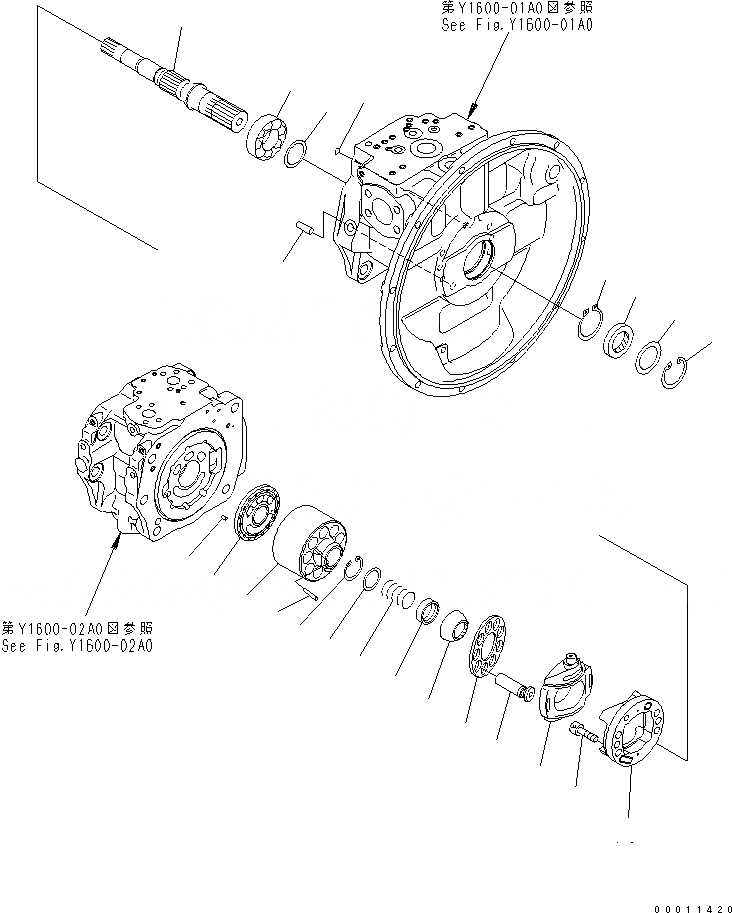

Запчасти Komatsu PC400LC-7-M1 ОСНОВН. НАСОС (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-2H-00022

PUMP ASS'Y

|1

708-2H-01022

PUMP SUB ASS'Y

1

708-2H-32110

SHAFT

2

708-1H-22150

BEARING

3

708-17-05010

WASHER KIT

|3

WASHER¤ 3.0MM

|3

WASHER¤ 3.1MM

|3

WASHER¤ 3.2MM

4

708-17-12780

RING,SNAP

5

708-27-22811

SEAL,OIL

6

708-2H-22160

SPACER

7

04065-08225

RING,SNAP

|8

708-2H-04620

CYLINDER BLOCK ASS'Y

8

BLOCK,CYLINDER

9

PLATE,VALVE

10

708-18-13230

PIN

11

04065-05820

RING

12

708-2H-33140

SEAT

13

708-2H-33150

SPRING

14

708-2H-23141

SEAT

15

708-2H-23350

GUIDE,RETAINER

16

708-2H-23360

PIN

17

708-2H-33342

RETAINER,SHOE

18

708-2H-33311

PISTON SUB ASS'Y

|19

708-2H-04630

CRADLE SUB ASS'Y

19

CRADLE

20

CAM,ROCKER

21

04020-01434

PIN,DOWEL

22

07000-B1009

O-RING

23

01252-61235

BOLT
