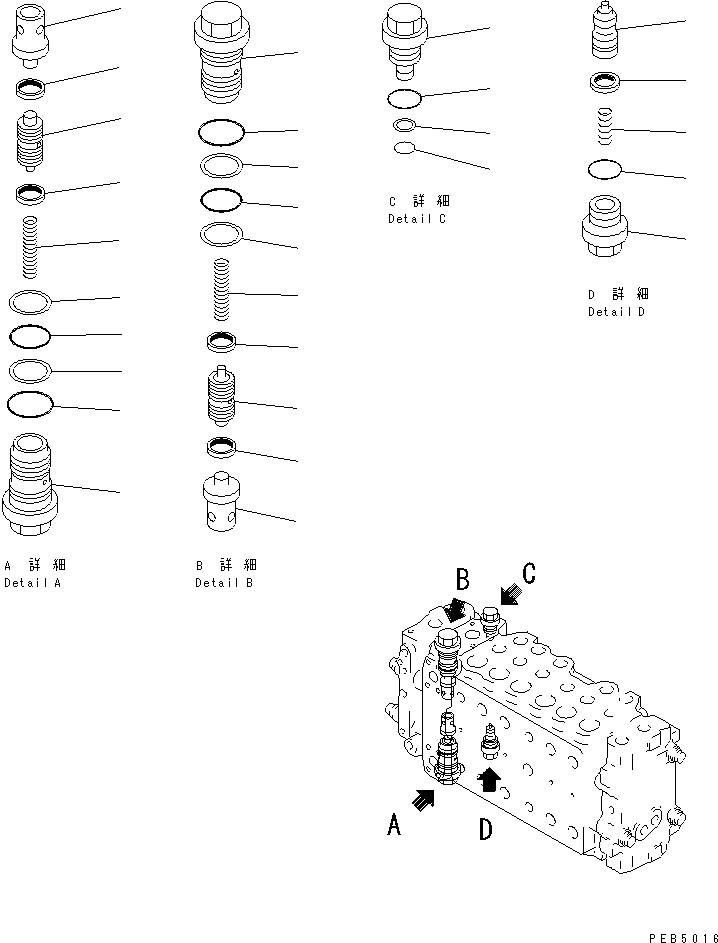

Запчасти Komatsu PC400LC-6Z ОСНОВН. КЛАПАН (-АКТУАТОР) (/) (- DEG. СПЕЦ-Я.)(№9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$6

723-47-17300

CONTROL VALVE

|$7

723-47-17204

CONTROL VALVE

|$8

723-47-17203

CONTROL VALVE

|$9

723-47-17202

CONTROL VALVE

|$10

723-47-17201

CONTROL VALVE

|$11

723-47-17200

CONTROL VALVE

|$13

BODY SUB ASS'Y

1

723-46-41110

VALVE

|$15

723-46-47300

VALVE ASS'Y

2

SLEEVE

3

PISTON SUB ASS'Y

4

SPRING

5

SEAL

6

723-46-41820

O-RING

7

723-46-41950

RING

8

07002-53634

O-RING

|$23

723-46-44300

VALVE ASS'Y

9

SLEEVE

10

PISTON SUB ASS'Y

11

SPRING

12

SEAL

13

723-46-41820

O-RING

14

723-46-41950

RING

15

07002-53634

O-RING

16

709-74-91510

PLUG

17

709-20-61730

O-RING

18

07000-51009

O-RING

19

07001-01009

RING,BACK-UP

|$35

723-40-85200

VALVE ASS'Y,SUCTION

20

SLEEVE

21

VALVE

22

SPRING

23

SEAL

24

709-20-61730

O-RING
