Запчасти Komatsu PC400LC-6Z ОСНОВН. ЛИНИЯ PPC (КЛАПАН ЛИНИИ PPC)(№-) ГИДРАВЛИКА

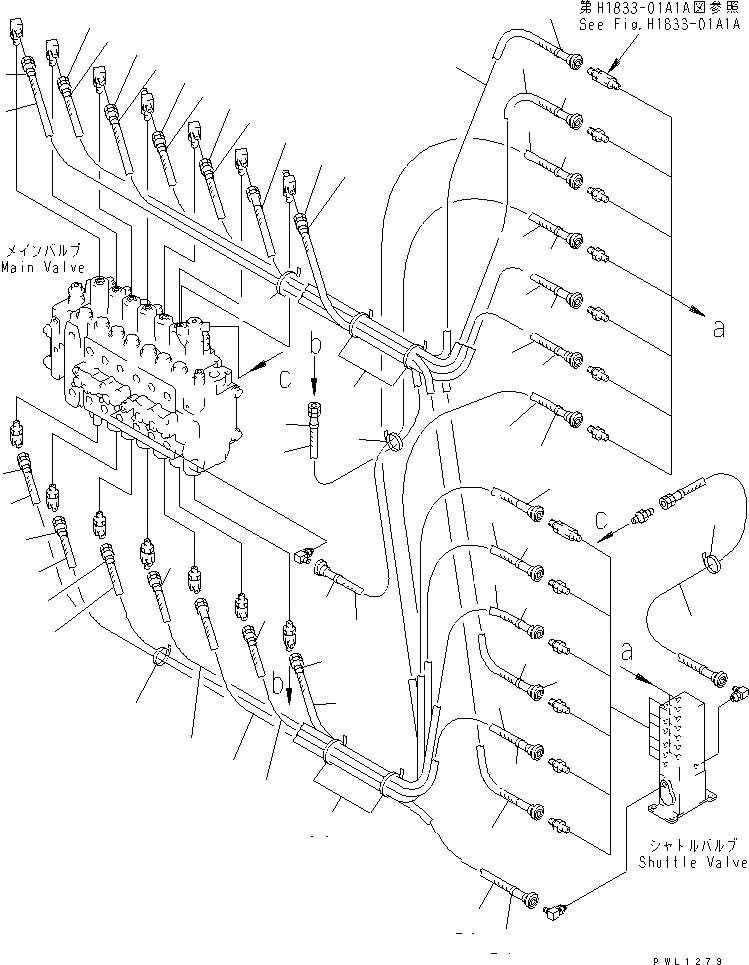

Схема запчастей Komatsu PC400LC-6Z - ОСНОВН. ЛИНИЯ PPC (КЛАПАН ЛИНИИ PPC)(№-) ГИДРАВЛИКА
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
32

Артикул

Название

Примечание

Количество

1

203-62-52260

HOSE, 1300MM

2

207-62-63421

HOSE, 920MM

3

207-62-63630

HOSE, 470MM

4

20Y-62-22661

HOSE, 470MM

5

20Y-62-22671

HOSE, 355MM

6

20Y-62-22681

HOSE, 520MM

7

20Y-62-22691

HOSE, 315MM

8

20Y-62-22721

HOSE, 535MM

9

20Y-62-22790

BAND, RED

10

20Y-62-22810

BAND, YELLOW

11

20Y-62-22820

BAND, BLUE

12

20Y-62-22830

BAND, WHITE

13

20Y-62-22840

BAND, BLACK

14

20Y-62-22850

BAND, GREEN

15

20Y-62-22860

BAND, BROWN

16

08034-00536

BAND

17

207-62-63640

HOSE, 620MM

18

20Y-62-22721

HOSE, 535MM

19

20Y-62-22741

HOSE, 675MM

20

20Y-62-22761

HOSE, 840MM

21

20Y-62-23861

HOSE, 1050MM

22

20Y-62-22781

HOSE, 650MM

23

20Y-62-23831

HOSE, 800MM

24

20Y-62-22840

BAND, BLACK

25

20Y-62-22790

BAND, RED

26

20Y-62-22820

BAND, BLUE

27

20Y-62-22830

BAND, WHITE

28

20Y-62-22850

BAND, GREEN

29

20Y-62-22860

BAND, BROWN

30

08034-00536

BAND

31

20Y-62-22681

HOSE, 520MM

32

08034-00536

BAND

Выбрано товаров: 32
