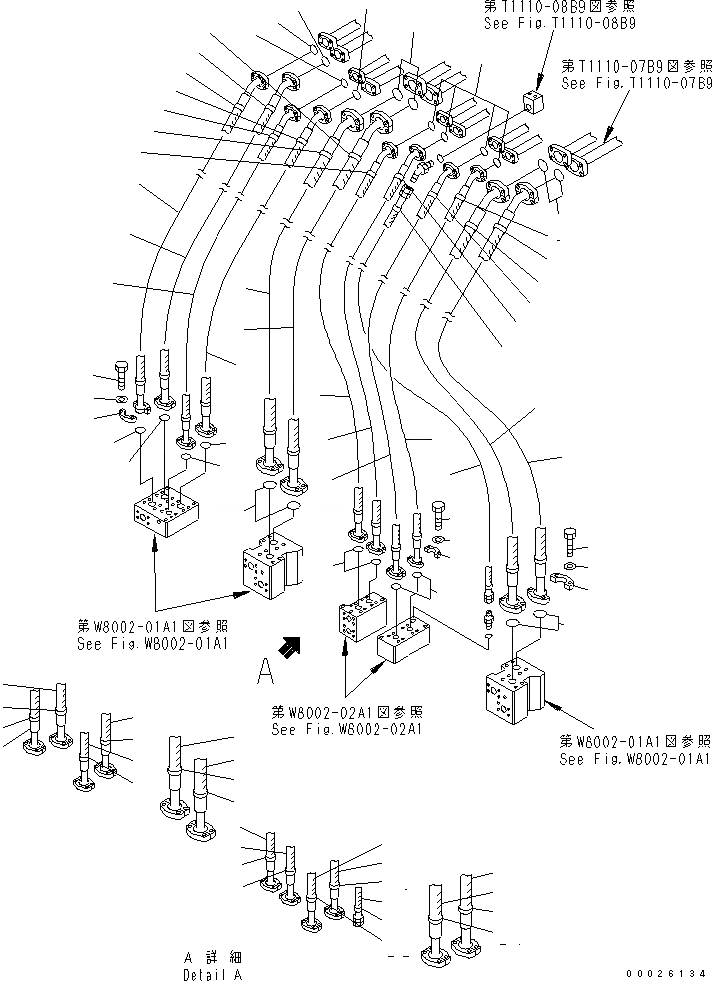

Запчасти Komatsu PC400LC-6Z PIPE LOOPER ТРУБЫ (ШЛАНГИ)(№9-) РАЗНОЕ
№
Артикул
Название
Примечание
Количество
1
07083-41251
HOSE
2
07083-41252
HOSE
3
07083-41052
HOSE
4
07083-41053
HOSE
5
07083-40651
HOSE
6
07083-40652
HOSE
7
07083-40653
HOSE
8
07621-40656
HOSE
9
07000-13038
O-RING
10
07000-13032
O-RING
11
07000-13025
O-RING
12
07371-51260
FLANGE
13
07371-31049
FLANGE
14
07371-30640
FLANGE
15
01010-81245
BOLT
16
01643-31232
WASHER
17
07372-21035
BOLT
18
01643-51032
WASHER
19
20Y-62-22790
BAND, RED
20
20Y-62-22810
BAND, YELLOW
21
20Y-62-22820
BAND, BLUE
22
20Y-62-22830
BAND, WHITE
23
20Y-62-22840
BAND, BLACK
24
20Y-62-22850
BAND, GREEN
25
20Y-62-22860
BAND, BROWN
1
07083-41251
HOSE
2
07083-41252
HOSE
3
07083-41052
HOSE
4
07083-41053
HOSE
5
07083-40651
HOSE
6
07083-40652
HOSE
7
07083-40653
HOSE
8
07621-40656
HOSE
9
07000-13038
O-RING
10
07000-13032
O-RING
11
07000-13025
O-RING
12
07371-51260
FLANGE
13
07371-31049
FLANGE
14
07371-30640
FLANGE
15
01010-81245
BOLT
16
01643-31232
WASHER
17
07372-21035
BOLT
18
01643-51032
WASHER
19
20Y-62-22790
BAND, RED
20
20Y-62-22810
BAND, YELLOW
21
20Y-62-22820
BAND, BLUE
22
20Y-62-22830
BAND, WHITE
23
20Y-62-22840
BAND, BLACK
24
20Y-62-22850
BAND, GREEN
25
20Y-62-22860
BAND, BROWN
Выбрано товаров: 50
