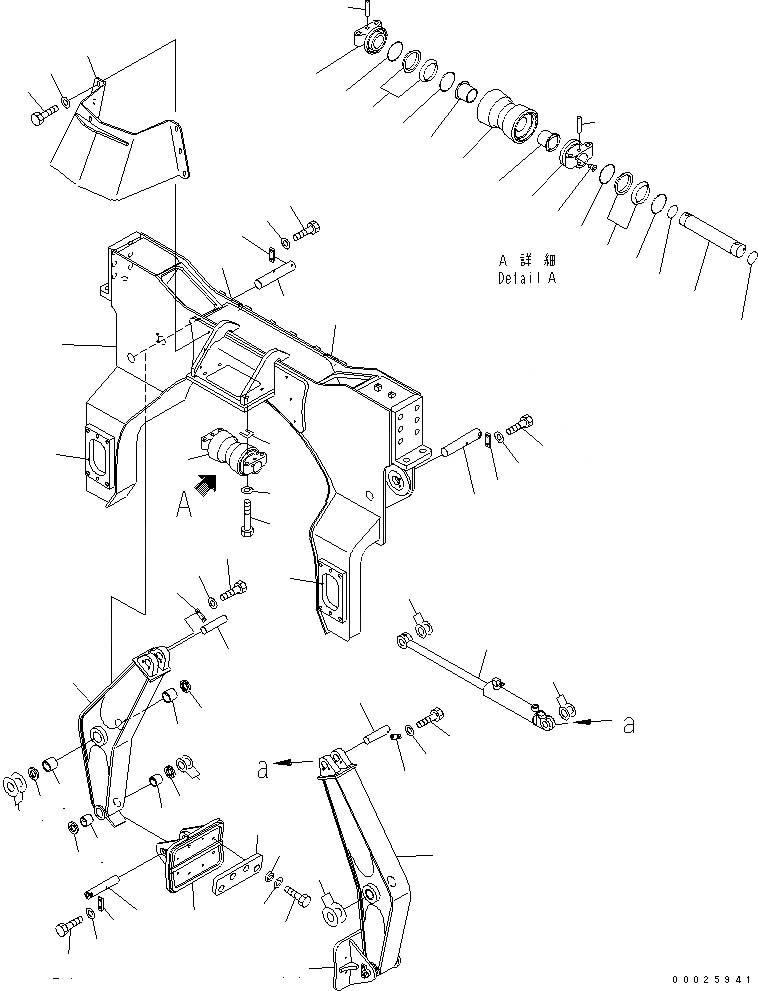

Запчасти Komatsu PC400LC-6Z PIPE LOOPER (ПЕРЕДН. SДОПОЛНИТ.LE И ЦИЛИНДР)(№9-) РАЗНОЕ

1

208-871-1411

SADDLE

2

208-871-2830

JOINT (WELDED)

3

208-871-3490

PLATE (WELDED)

|$8

208-871-0010

ARM

4

208-871-1160

ARM

5

20T-70-81250

BUSHING

6

20S-70-81290

BUSHING

7

07145-00050

SEAL

8

07145-00040

SEAL

9

114-72-21880

PIN

10

04082-00212

LOCK

11

01010-81230

BOLT

12

01643-31232

WASHER

13

424-46-12541

SHIM, 0.5MM

14

208-871-1151

CLAMP

15

6202-83-6770

BOSS

16

417-43-16210

WASHER

17

01010-81025

BOLT

18

208-871-3160

CUSHION

19

20D-47-21140

PIN

20

04082-00212

LOCK

21

01010-81230

BOLT

22

01643-31232

WASHER

23

20R-70-11260

SPACER, 1.0MM

24

201-936-1260

PIN

25

04082-00212

LOCK

26

01010-81230

BOLT

27

01643-31232

WASHER

28

20R-70-11260

SPACER, 1.0MM

29

707-00-0Y710

CYLINDER ASS'Y

|$47

208-871-2910

ROLLER ASS'Y

30

208-871-2920

ROLLER

31

22U-30-11450

BUSHING

32

22U-30-11420

SHAFT

33

20Y-30-13170

O-RING

|$53

20Y-30-00380

FLOATING SEAL ASS'Y

34

SEAL

35

O-RING

36

22U-30-11430

COLLAR

37

20Y-30-16330

PLUG

38

22U-30-11440

COLLAR

39

20Y-30-16170

PIN

40

01011-81800

BOLT

41

01643-31845

WASHER

42

195-03-11570

SHIM, 1.0MM

43

208-871-2930

COVER

44

01010-81230

BOLT

45

01643-31232

WASHER
