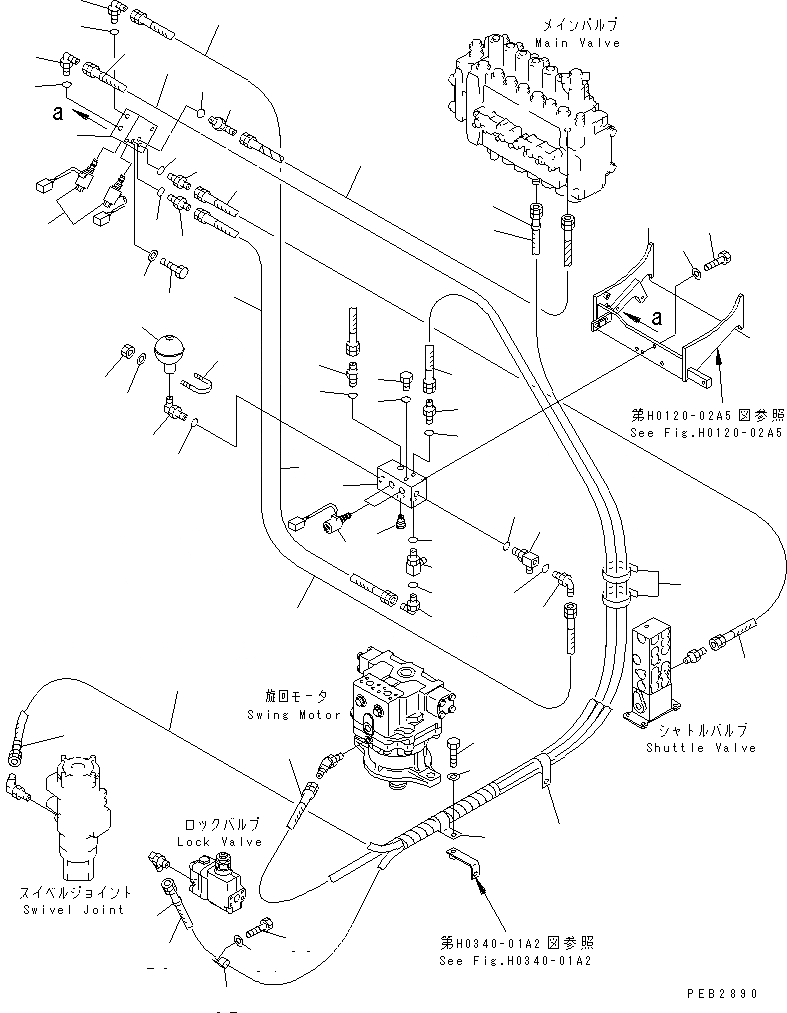

Запчасти Komatsu PC400LC-6Z СОЛЕНОИДНЫЙ КЛАПАН(№-999) ГИДРАВЛИКА

|$2

20Y-60-22171

VALVE ASS'Y

1

VALVE ASS'Y

2

20Y-60-22122

SOLENOID VALVE

3

20Y-60-22140

CHECK VALVE

4

07002-01423

O-RING

5

07040-11409

PLUG

6

205-62-55270

NIPPLE

7

07002-01423

O-RING

8

07230-20315

UNION

9

07002-02034

O-RING

10

207-62-56220

TEE

11

07002-02034

O-RING

12

207-62-33920

ELBOW

13

07002-01423

O-RING

14

01010-51030

BOLT

15

01643-31032

WASHER

16

20Y-60-11430

ACCUMULATOR

17

203-62-65281

ELBOW

18

07002-02034

O-RING

19

07283-23450

CLIP

20

01599-01011

NUT

21

01643-31032

WASHER

22

07102-20304

HOSE

23

07102-20305

HOSE

24

20Y-62-23210

HOSE

25

20Y-62-22980

HOSE, 600MM

26

07102-20319

HOSE

27

07102-20320

HOSE

28

07102-20321

HOSE

29

20Y-62-22790

BAND, RED

30

20Y-62-22810

BAND, YELLOW

31

08034-00519

BAND

32

04434-51812

CLIP

33

01010-51225

BOLT

34

01643-31232

WASHER

35

208-06-19170

CLIP

36

20Y-970-3780

BLOCK

37

20Y-60-11713

SOLENOID VALVE

37

20Y-60-11673

SOLENOID ASS'Y

38

205-62-55270

NIPPLE

39

07002-01423

O-RING

40

07235-10311

ELBOW

40

207-62-33920

ELBOW

41

07002-02034

O-RING

42

01010-51080

BOLT

43

01643-31032

WASHER

44

01010-51230

BOLT

45

01643-31232

WASHER
