Запчасти Komatsu PC400LC-6LC FIG NO. H8-A ОСНОВН. ЛИНИЯ PPC КЛАПАН ЛИНИИ PPC ГИДРАВЛИКА

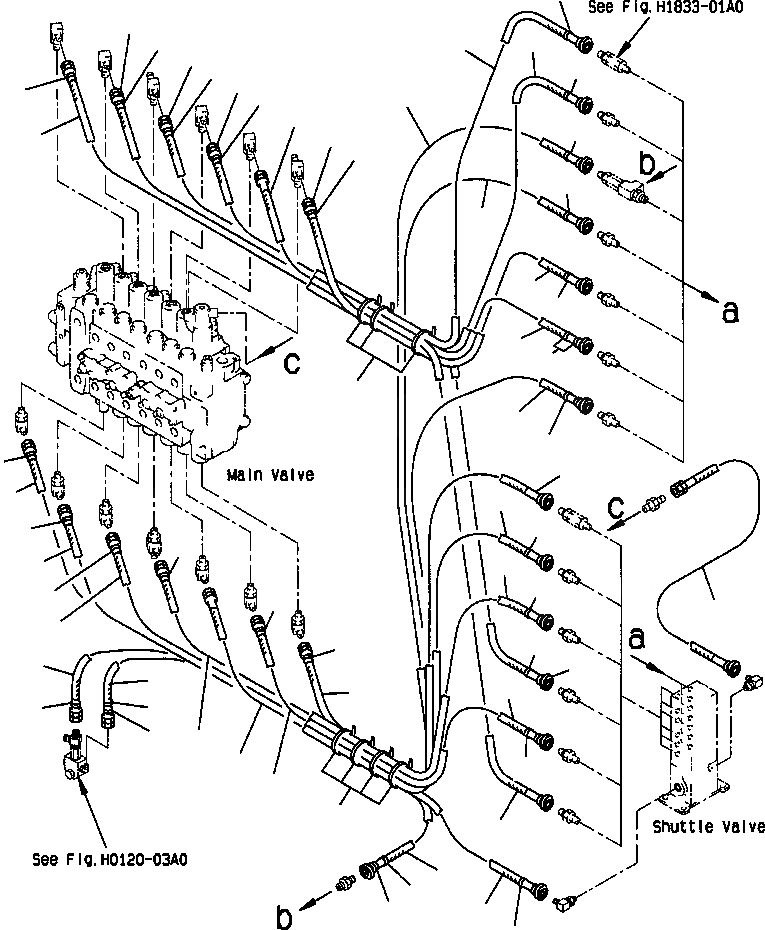

Схема запчастей Komatsu PC400LC-6LC - FIG NO. H8-A ОСНОВН. ЛИНИЯ PPC КЛАПАН ЛИНИИ PPC ГИДРАВЛИКА
9
11
12
6
8
2
3
7
8
7
18
9
4
19
10
6
5
26
28
10
5
11
12
1
23
24
27
22
20
25
21
21
17
16
20
17
15
24
30
23
3
19
28
2
29
14
18
26
21
15
16
22
15
14
13
4
29
21
15
25
27

Артикул

Название

Примечание

Количество

1

08034-00536

BAND

2

20Y-62-22660

HOSE, 470MM (BOOM RAISE)

3

20Y-62-22850

BAND, GREEN

4

207-62-63420

HOSE, 920MM (LEFT TRAVEL, FORWARD)

5

20Y-62-22830

BAND, WHITE

6

20Y-62-22680

HOSE, 520MM (BUCKET CURL)

7

20Y-62-22840

BAND, BLACK

8

20Y-62-22670

HOSE, 355MM (SWING TO LEFT)

9

20Y-62-22790

BAND, RED

10

20Y-62-22660

HOSE, 470MM (ARM OUT)

11

20Y-62-22720

HOSE, 535MM (RIGHT TRAVEL, FORWARD)

12

20Y-62-22820

BAND, BLUE

13

08034-00536

BAND

14

20Y-62-22720

HOSE, 535MM

15

20Y-62-22790

BAND, RED

16

20Y-62-22740

HOSE, 675MM

17

20Y-62-22860

BAND, BROWN

18

20Y-62-22750

HOSE, 620MM

19

20Y-62-22820

BAND, BLUE

20

20Y-62-22760

HOSE, 840MM

21

20Y-62-22830

BAND, WHITE

22

20Y-62-22770

HOSE, 700MM

23

20Y-62-22780

HOSE, 650MM

24

20Y-62-22850

BAND, GREEN

25

20Y-62-16540

HOSE, 800MM

26

20Y-62-22810

BAND, YELLOW

27

20Y-62-22840

BAND, BLACK

28

207-62-63410

HOSE, 570MM

29

20Y-62-22660

HOSE, 470MM

30

20Y-62-22680

HOSE, 520MM

Выбрано товаров: 30
