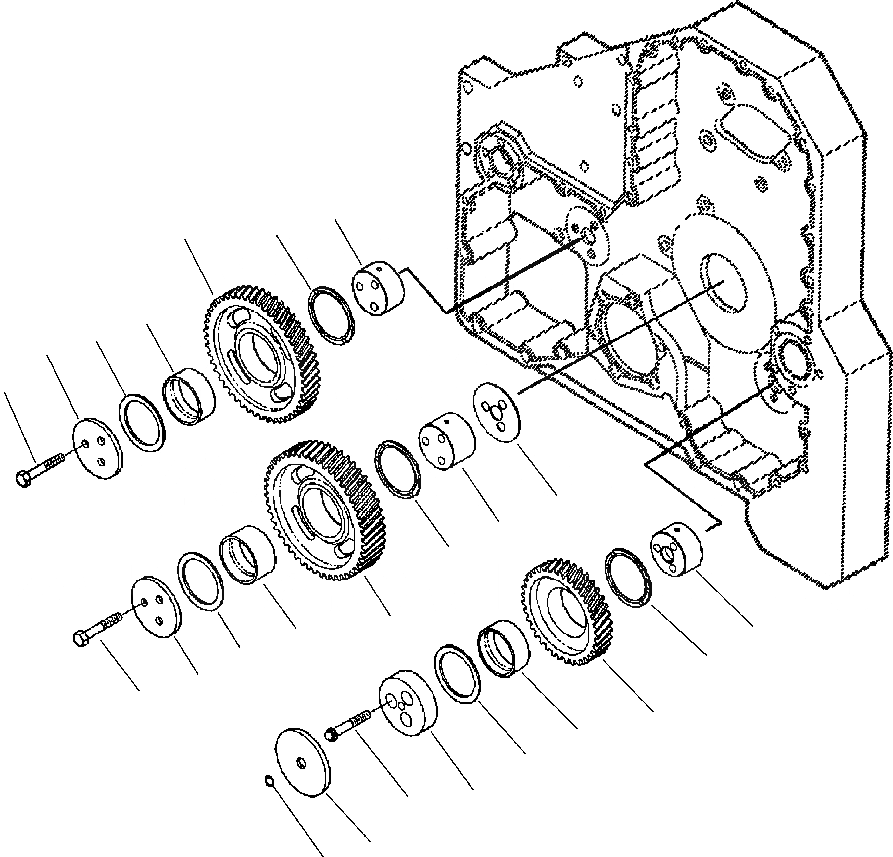

Запчасти Komatsu PC400LC-6LC ПРОМЕЖУТОЧНАЯ ШЕСТЕРНЯS ДЛЯ МАТЕРИАЛERIAL РУКОЯТЬR ДВИГАТЕЛЬ

|$0

1304 958 H91

CAMSHAFT IDLER GEAR ASSEMBLY

1

NSS

GEAR, IDLER

2

1246 146 H1

BUSHING

3

1246 147 H1

SHAFT, ILDER

4

1246 148 H1

RETAINER, GEAR

5

1246 151 H2

BEARING, THRUST

6

1304 950 H1

PLATE, WEAR

7

1304 951 H1

BOLT (M10x1.50x60)

|$8

1304 960 H91

WATER PUMP IDLER GEAR ASSEMBLY

8

NSS

GEAR, IDLER

9

1246 153 H1

BUSHING

10

1246 148 H1

RETAINER, GEAR

11

1246 151 H2

BEARING, THRUST

12

1304 951 H1

BOLT (M10x1.50x60)

13

1246 154 H1

SHAFT, IDLER

|$15

1295 194 H91

HYDRAULIC PUMP IDLER GEAR ASSEMBLY

14

NSS

GEAR, IDLER

15

1246 146 H1

BUSHING

16

1246 151 H2

BEARING, THRUST

17

1295 197 H1

SHAFT, IDLER

18

1295 195 H1

RETAINER, GEAR

19

1295 196 H1

BOLT (M10x1.50x70)

20

1294 035 H2

SEAL, RECTANGULAR RING

21

1294 036 H1

SPACER, MOUNTING
