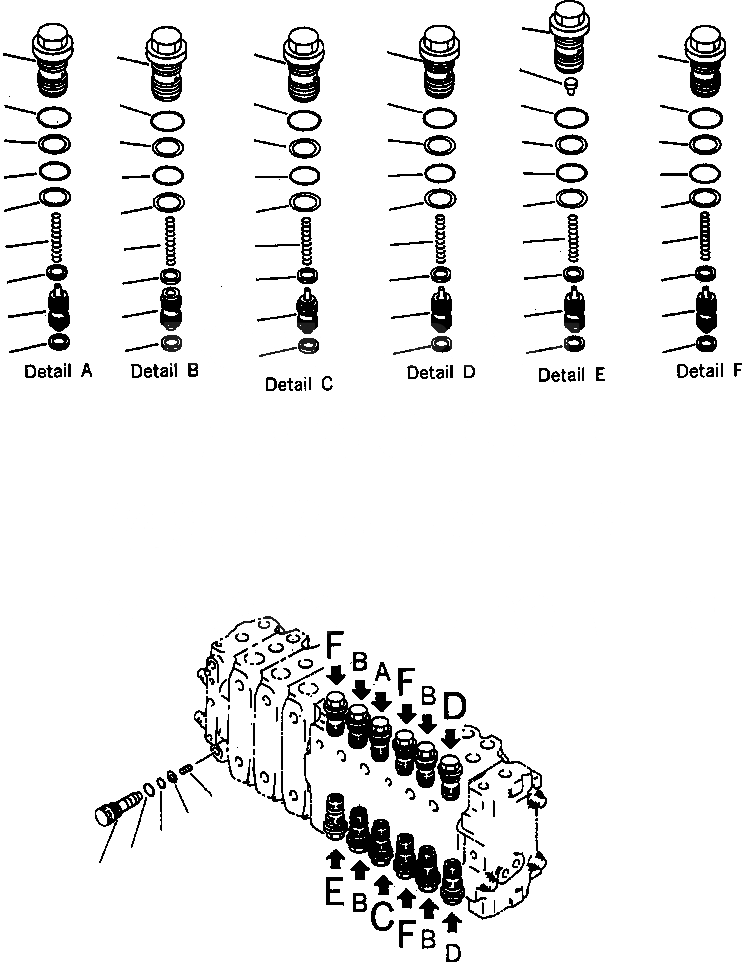

Запчасти Komatsu PC400LC-6LC FIG NO. H-A ОСНОВН. КЛАПАН АКТУАТОР (/) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|$1
723-46-40100
VALVE ASSEMBLY
1
NSS
SLEEVE
2
NSS
PISTON SUB ASSEMBLY
3
NSS
SPRING
4
NSS
SEAL
5
700-93-11320
O-RING
6
723-46-41950
RING
7
07002-13634
O-RING
|$9
723-46-40300
VALVE ASSEMBLY
8
NSS
SLEEVE
9
NSS
PISTON
10
NSS
SPRING
11
NSS
SEAL
12
700-93-11320
O-RING
13
723-46-41950
RING
14
07002-13634
O-RING
|$17
723-46-40601
VALVE ASSEMBLY
15
NSS
SLEEVE
16
NSS
PISTON SUB ASSEMBLY
17
NSS
SPRING
18
NSS
SEAL
19
700-93-11320
O-RING
20
723-46-41950
RING
21
07002-13634
O-RING
|$25
723-46-44100
VALVE ASSEMBLY
22
NSS
SLEEVE
23
NSS
PISTON SUB ASSEMBLY
24
NSS
SPRING
25
NSS
SEAL
26
700-93-11320
O-RING
27
723-46-41950
RING
28
07002-13634
O-RING
|$33
723-46-45200
VALVE ASSEMBLY
29
NSS
SLEEVE
30
NSS
VALVE SUB ASSEMBLY
31
NSS
SPRING
32
NSS
SEAL
33
700-93-11320
O-RING
34
723-46-41950
RING
35
07002-13634
O-RING
36
NSS
RETAINER
|$42
723-46-45100
VALVE ASSEMBLY
37
NSS
SLEEVE
38
NSS
PISTON SUB ASSEMBLY
39
NSS
SPRING
40
NSS
SEAL
41
700-93-11320
O-RING
42
723-46-41950
RING
43
07002-13634
O-RING
|$50
723-46-15100
PLUG ASSEMBLY
44
NSS
PLUG
45
NSS
SCREW
46
07002-11423
O-RING
47
07000-11007
O-RING
48
07001-01007
RING, BACK-UP
Выбрано товаров: 55
