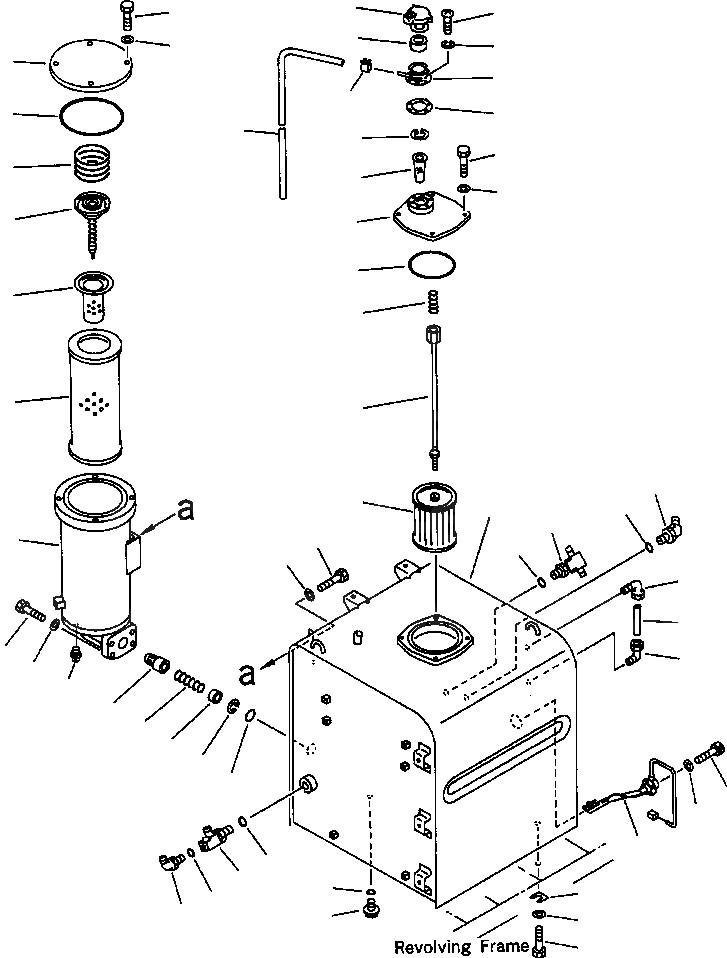

Запчасти Komatsu PC400LC-6LC FIG NO. H-A ГИДР. БАК. ГИДРАВЛИКА

|$0

208-60-00130

TANK ASSEMBLY, HYDRAULIC

1

208-60-68110

TANK

2

203-60-31160

TUBE

3

203-60-31100

ELBOW

4

07044-12412

PLUG

5

07002-02434

O-RING

6

207-60-61171

COVER

7

07000-05180

O-RING

8

01010-51225

BOLT

9

01643-31232

WASHER

|$10

207-06-61140

STRAINER ASSEMBLY

10

207-60-61150

ROD ASSEMBLY

11

12R-60-11230

SPRING

12

207-60-51200

STRAINER

13

17A-60-11310

CAP ASSEMBLY

14

20Y-60-21470

ELEMENT

15

20Y-60-21460

NECK

16

205-60-51460

GASKET

17

01220-40516

SCREW

18

01601-20513

WASHER

19

07056-10045

STRAINER

20

04065-04718

RING

21

07270-61512

TUBE

22

07285-00155

CLIP

23

7861-92-4210

SENSOR

24

01252-40612

BOLT

25

01641-20608

WASHER

26

01010-51635

BOLT

27

01643-31645

WASHER

28

195-03-11570

SHIM, 1.0 MM

29

208-60-61131

CASE

30

208-60-61140

COVER

31

07000-05210

O-RING

32

01010-51235

BOLT

33

01643-31232

WASHER

34

12R-60-11390

SPRING

35

12R-60-11300

VALVE ASSEMBLY

36

206-60-41221

STRAINER

37

07063-01383

ELEMENT

38

205-60-71230

POPPET

39

706-76-71190

SPRING

40

04065-05020

RING

41

207-60-51170

SPACER

42

07042-30211

PLUG

43

01010-51230

BOLT

44

01643-31232

WASHER

45

07000-02060

O-RING

46

01010-51245

BOLT

47

01643-31232

WASHER

48

207-62-62780

TEE

49

07002-02434

O-RING

50

07235-10522

ELBOW

51

07002-02437

O-RING

52

07236-11034

ELBOW

53

07002-03334

O-RING

54

209-62-27580

TEE

55

07002-02034

O-RING
