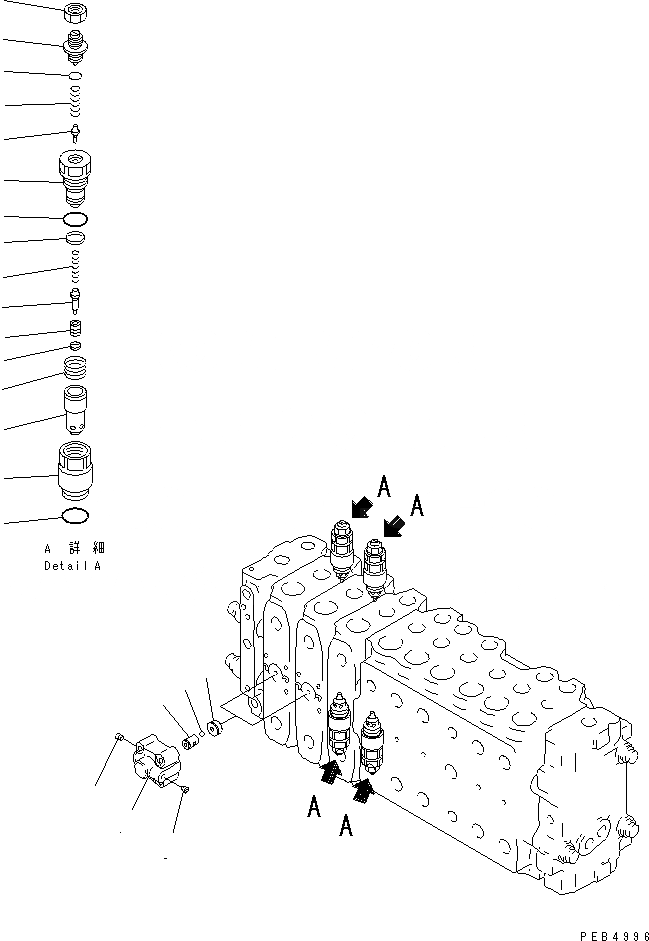

Запчасти Komatsu PC400LC-6 ОСНОВН. КЛАПАН (-АКТУАТОР) (7/7) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-49-19401

CONTROL VALVE

|1

723-49-19400

CONTROL VALVE

|1

723-49-19102

CONTROL VALVE

|1

723-49-19101

CONTROL VALVE

|1

723-49-19100

CONTROL VALVE

|1

723-49-17102

CONTROL VALVE

|1

723-49-17101

CONTROL VALVE

|1

723-49-17100

CONTROL VALVE

|$$9

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1666-01A0 TO Y1666-17A0.

|1

723-40-66300

VALVE ASS'Y

1

CASE

2

SEAT

3

SEAT

4

BALL

5

PLUG

|6

709-70-74700

VALVE ASS'Y,SUCTION AND SAFETY

6

SLEEVE

7

SLEEVE

8

POPPET

9

PISTON

10

PLUG

11

POPPET

12

SCREW

13

SPRING

14

SPRING

15

SPRING

16

SEAL

17

SEAL

18

709-25-11390

O-RING

19

O-RING

20

O-RING

21

NUT
