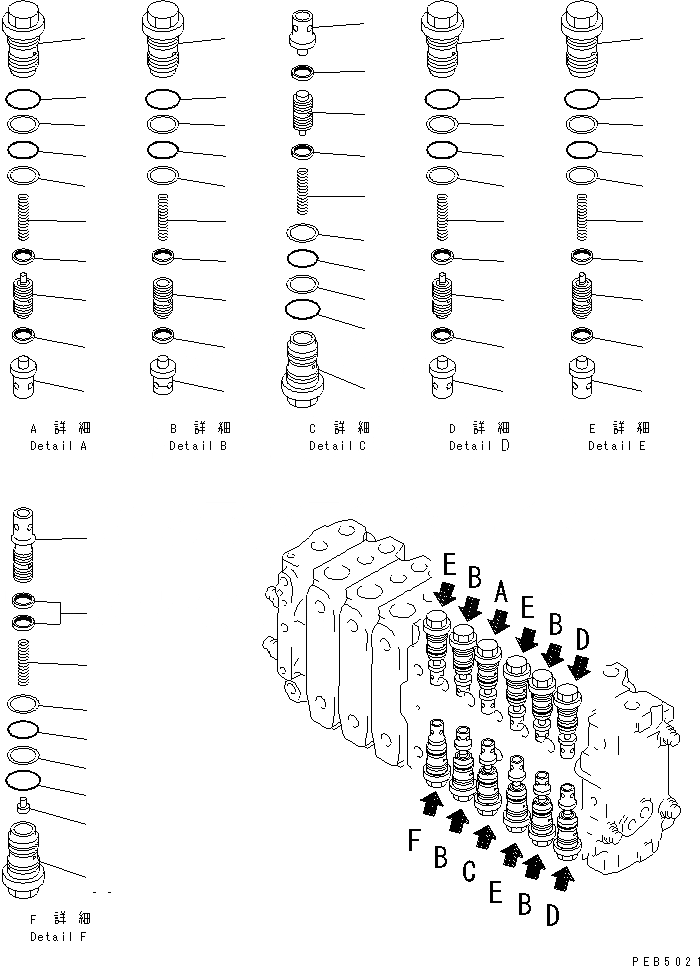

Запчасти Komatsu PC400LC-6 ОСНОВН. КЛАПАН (-АКТУАТОР) (/7)(№-9) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-49-19100

CONTROL VALVE

|1

723-49-17102

CONTROL VALVE

|1

723-49-17101

CONTROL VALVE

|1

723-49-17100

CONTROL VALVE

|$$5

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1666-01A0 TO Y1666-17A0.

|1

BODY SUB ASS'Y

|1

BODY SUB ASS'Y

|1

BODY SUB ASS'Y

1

723-46-41110

VALVE

2

723-46-41120

VALVE

|3

723-46-40100

VALVE ASS'Y

3

SLEEVE

4

PISTON SUB ASS'Y

5

SPRING

6

SEAL

7

700-93-11320

O-RING

8

723-46-41950

RING

9

07002-13634

O-RING

|10

723-46-40300

VALVE ASS'Y

10

SLEEVE

11

PISTON

12

SPRING

13

SEAL

14

700-93-11320

O-RING

15

723-46-41950

RING

16

07002-13634

O-RING

|17

723-46-40601

VALVE ASS'Y

17

SLEEVE

18

PISTON SUB ASS'Y

19

SPRING

20

SEAL

21

700-93-11320

O-RING

22

723-46-41950

RING

23

07002-13634

O-RING

|24

723-46-44100

VALVE ASS'Y

24

SLEEVE

25

PISTON SUB ASS'Y

26

SPRING

27

SEAL

28

700-93-11320

O-RING

29

723-46-41950

RING

30

07002-13634

O-RING

|31

723-46-45100

VALVE ASS'Y

31

SLEEVE

32

PISTON SUB ASS'Y

33

SPRING

34

SEAL

35

700-93-11320

O-RING

36

723-46-41950

RING

37

07002-13634

O-RING

|38

723-46-45200

VALVE ASS'Y

38

SLEEVE

39

VALVE SUB ASS'Y

40

SPRING

41

SEAL

42

700-93-11320

O-RING

43

723-46-41950

RING

44

07002-13634

O-RING

45

723-46-41980

RETAINER
