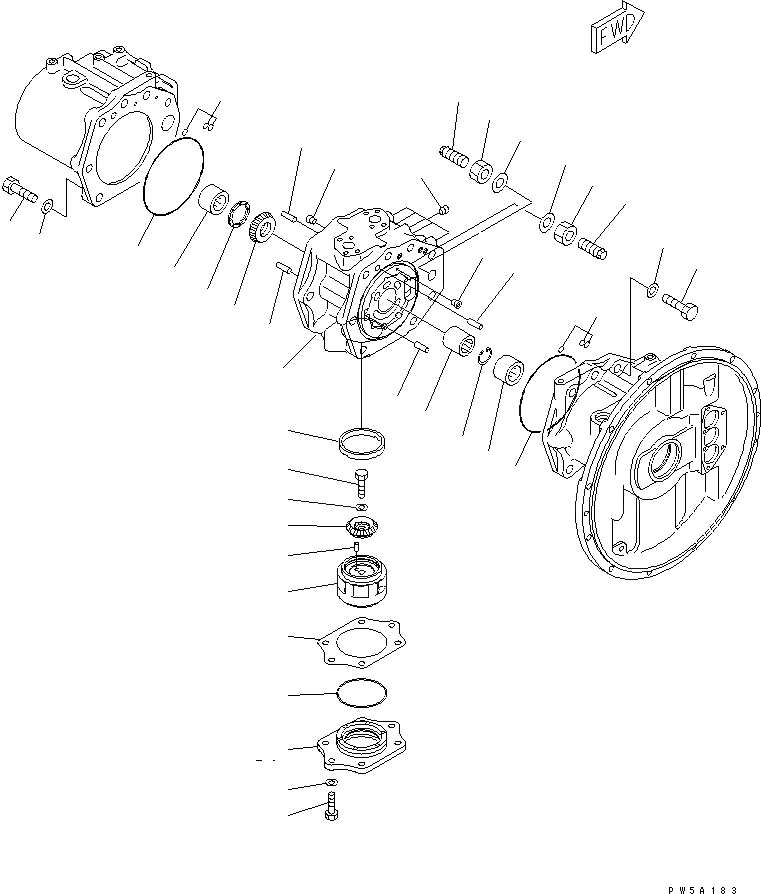

Запчасти Komatsu PC400LC-6 ОСНОВН. НАСОС (/9)(№-999) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-2H-00120

PUMP ASS'Y

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-09A0.

|1

708-2H-01121

PUMP SUB ASS'Y

|1

708-2H-04180

CAP ASS'Y

1

CAP,END

2

PLUG

3

07000-05180

O-RING

4

07000-B2012

O-RING

5

04020-01434

PIN

6

01010-61860

BOLT

7

01643-31845

WASHER

8

708-1H-12261

BEARING

9

708-2H-12420

RING

10

708-2H-22140

COUPLING

11

708-2H-24320

SCREW

12

01583-52414

NUT

13

01643-32460

WASHER

14

708-18-13230

PIN

15

708-2H-21810

IMPELLER

16

708-2H-21820

GEAR,BEVEL

17

01010-61440

BOLT

18

01643-31445

WASHER

19

04020-00820

PIN

20

708-2H-21850

BUSHING

21

708-2H-21860

BEARING,THRUST

22

708-2H-21830

GEAR,BEVEL

23

708-2H-21630

COVER

24

07000-12105

O-RING

25

708-2H-05010

SHIM KIT

|25

SHIM¤ 0.1MM

|25

SHIM¤ 0.2MM

|25

SHIM¤ 0.5MM

26

01010-81235

BOLT

27

01643-31232

WASHER
