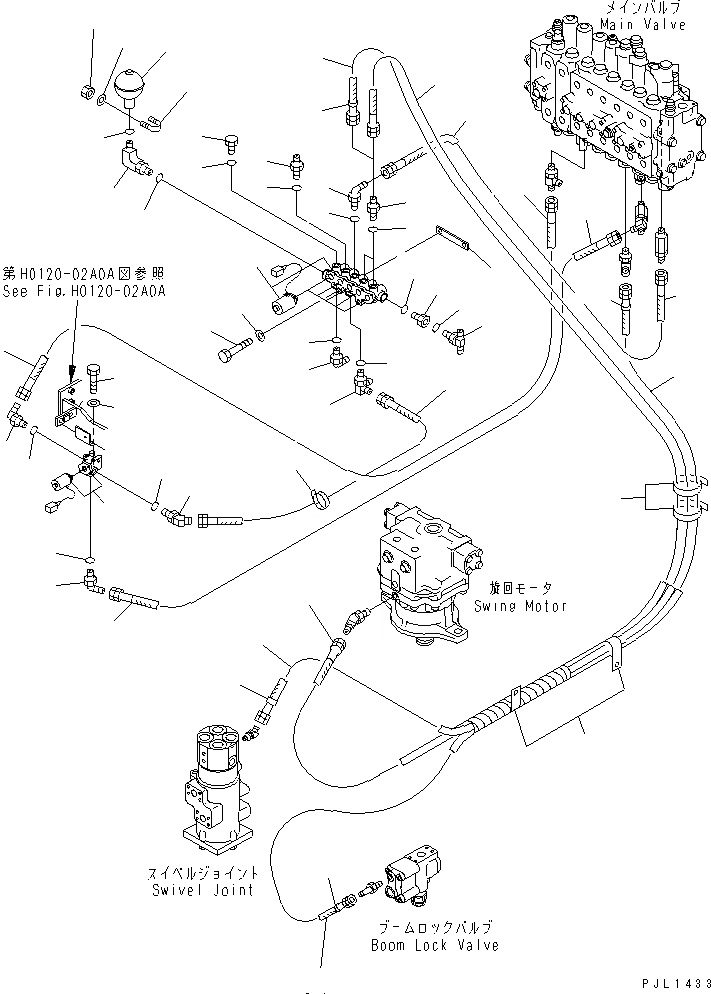

Запчасти Komatsu PC400LC-6 СОЛЕНОИДНЫЙ КЛАПАН (ПОГРУЗ.)(№-) ГИДРАВЛИКА

1

206-60-51102

VALVE ASS'Y,(SEE FIG.Y1860-01A0B)

2

205-62-55270

NIPPLE

3

07002-11423

O-RING

4

07235-10210

ELBOW

5

07002-11423

O-RING

6

07230-20210

UNION

7

07040-11409

PLUG

8

07002-11423

O-RING

9

07235-10315

ELBOW

10

20Y-62-23520

TEE

11

07002-12034

O-RING

12

20Y-62-21940

FILTER ASS'Y

13

07002-12034

O-RING

14

20Y-62-11780

TEE

15

07002-11423

O-RING

16

01011-81000

BOLT

|16

21T-09-11580

BOLT

17

01643-31032

WASHER

18

207-60-61230

PLATE

19

20Y-60-11410

ACCUMULATOR

20

203-62-65281

ELBOW

21

07002-12034

O-RING

22

07283-23450

CLIP

23

01599-01011

NUT

24

01643-31032

WASHER

25

207-60-61201

VALVE ASS'Y,(SEE FIG.Y1861-01A0A)

26

01010-80825

BOLT

27

01643-30823

WASHER

28

07235-10210

ELBOW

29

22X-61-18550

ELBOW

30

07002-11423

O-RING

31

206-62-43240

HOSE

32

07102-20319

HOSE

33

07102-20317

HOSE

34

07102-20316

HOSE

35

20Y-62-22790

BAND¤ RED

36

20Y-62-22810

BAND¤ YELLOW

37

08034-00519

BAND

38

208-06-19170

CLIP

39

07102-20203

HOSE

40

07102-20305

HOSE

41

206-62-43240

HOSE

42

08034-00519

BAND
