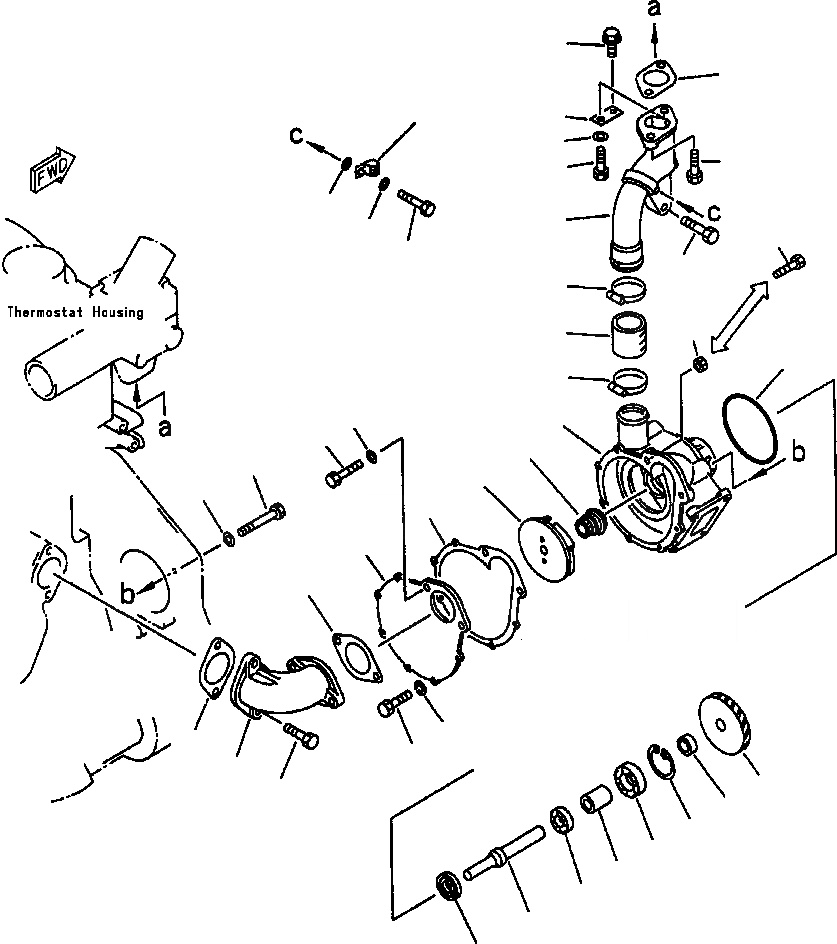

Запчасти Komatsu PC400LC-5 ВОДЯНАЯ ПОМПА СИСТЕМА ОХЛАЖДЕНИЯ

|$0

6151-61-1101

PUMP, WATER

1

6151-61-1111

BODY

2

6151-61-1310

SHAFT

3

6150-61-1510

SEAL, OIL

4

06030-06004

BEARING, BALL

5

6151-61-1360

SPACER

6

06030-06304

BEARING, BALL

7

04065-05220

RING, SNAP

8

6150-61-1350

SPACER

9

6150-61-1410

GEAR

10

6150-61-1520

SEAL, WATER PUMP

11

6151-61-1210

IMPELLER, WATER PUMP

12

6151-61-1151

COVER

13

6151-61-1161

GASKET

14

01010-80816

BOLT

15

01602-20825

WASHER, LOCK

16

01010-31030

BOLT - SHIPPING ONLY

17

01580-01008

NUT - SHIPPING ONLY

18

01641-21016

WASHER - SHIPPING ONLY

19

07000-62115

O-RING

20

01011-51010

BOLT

21

01640-21016

WASHER

22

6151-61-6311

CONNECTOR

23

6150-61-1821

GASKET

24

01010-81030

BOLT

25

01010-81035

BOLT

26

6150-61-6550

CONNECTOR

27

6141-64-7270

HOSE

28

07281-00709

CLAMP

29

6150-61-6830

GASKET

30

01010-81030

BOLT

31

6136-81-4540

PLATE

32

01010-81035

BOLT

33

01640-21016

WASHER

34

01010-81040

BOLT

35

01010-81045

BOLT

36

01640-21016

WASHER

37

01643-31032

WASHER
