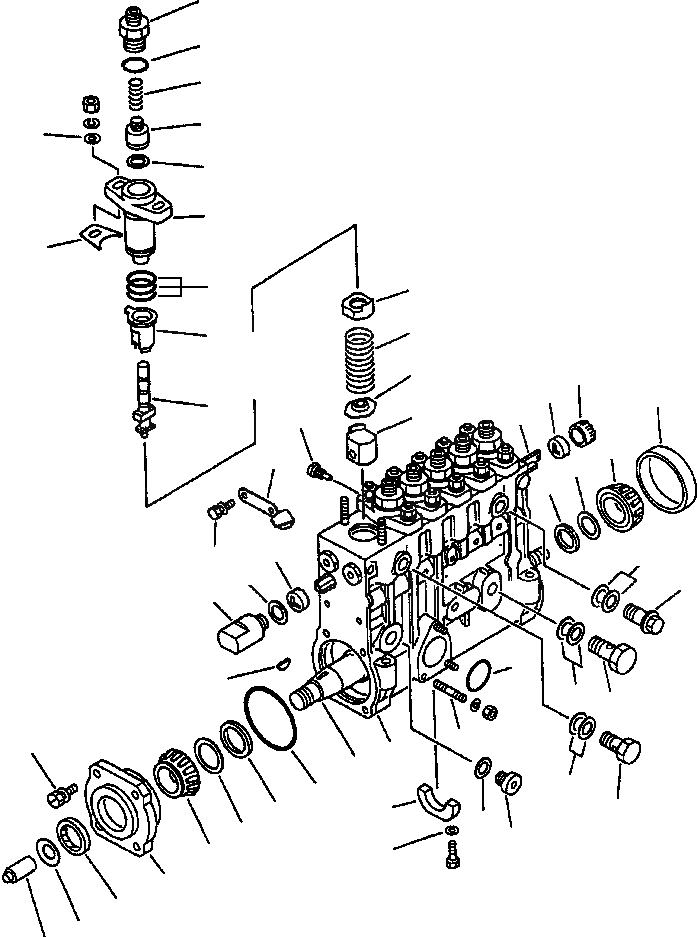

Запчасти Komatsu PC400LC-5 ТОПЛИВН. НАСОС ТОПЛИВН. СИСТЕМА

|$0

6151-73-1210

PUMP, FUEL INJECTION

|$1

ND090100-6710

BODY ASSEMBLY

1

ND090110-3741

HOUSING, PUMP

2

ND949043-0010

STUD

3

ND090130-0500

HOLDER, DELIVERY VALVE

4

ND090136-0770

SPRING, DELIVERY

5

ND949140-2570

O-RING

6

ND090140-1430

VALVE SUB-ASSEMBLY, DELIVERY

7

ND090150-3250

ELEMENT, PUMP

8

ND090160-0060

SLEEVE, CONTROL

9

ND090212-0471

RACK, CONTROL

10

ND090163-0160

SEAT, UPPER

11

ND090164-0250

SPRING, PLUNGER

12

ND090165-0150

SEAT, LOWER

13

ND090170-0230

TAPPET ASSEMBLY

14

ND090438-0390

SHIM, (1.75 MM)

|$16

ND090438-0400

SHIM, (1.80 MM)

|$17

ND090438-0410

SHIM, (1.85 MM)

|$18

ND090438-0420

SHIM, (1.90 MM)

|$19

ND090438-0430

SHIM, (1.95 MM)

|$20

ND090438-0440

SHIM, (2.00 MM)

|$21

ND090438-0450

SHIM, (2.05 MM)

|$22

ND090438-0460

SHIM, (2.10 MM)

|$23

ND090438-0470

SHIM, (2.15 MM)

|$24

ND090438-0480

SHIM, (2.20 MM)

|$25

ND090438-0490

SHIM, (2.25 MM)

|$26

ND090438-0500

SHIM, (2.30 MM)

|$27

ND090438-0510

SHIM, (2.35 MM)

|$28

ND090438-0520

SHIM, (2.40 MM)

15

ND949013-5880

WASHER

16

ND949140-3940

O-RING

17

ND090139-0020

O-RING

18

ND949018-1730

WASHER

19

ND090191-1090

CAMSHAFT

20

ND949101-0140

BEARING, ROLLER

21

ND090193-0050

RING, ADJUST

22

ND090194-0070

PLATE, (0.10 MM)

|$37

ND090194-0080

PLATE, (0.15 MM)

|$38

ND090194-0090

PLATE, (0.30 MM)

|$39

ND090194-0100

PLATE, (0.50 MM)

23

ND949150-1420

SEAL, OIL

24

ND090201-0430

COVER, BEARING

25

ND91518-06161

BOLT

26

ND090433-0020

RETAINER, BEARING

27

ND090361-0100

BEARING, CENTER

28

ND090248-0010

WASHER

29

ND090215-0060

SCREW

30

ND090317-0140

PLUG

31

ND090193-0060

RING, ADJUST

32

ND090118-0250

NEEDLE, TIMING

33

ND090222-0070

WASHER

34

ND949180-0020

SCREW

35

ND949140-0380

O-RING

36

ND949101-0130

BEARING, ROLLER

37

ND090194-0300

PLATE, (0.10 MM)

|$55

ND090194-0310

PLATE, (0.15 MM)

|$56

ND090194-0320

PLATE, (0.30 MM)

|$57

ND090194-0330

PLATE, (0.50 MM)

38

ND949047-0620

BOLT

39

ND090114-0110

BUSHING, CONTROL

40

ND090367-0040

BUSHING, CONTROL

41

ND949018-0350

WASHER, (1 MM)

42

ND090018-0410

COVER, CONTROL PACK

43

ND090012-0140

NUT, ROUND

44

ND949014-0070

WASHER

45

ND949018-1550

WASHER

46

ND090222-0070

WASHER

47

ND090310-0080

VALVE ASSEMBLY, OVER FLOW

48

ND90458-05750

KEY, WOODRUFF
