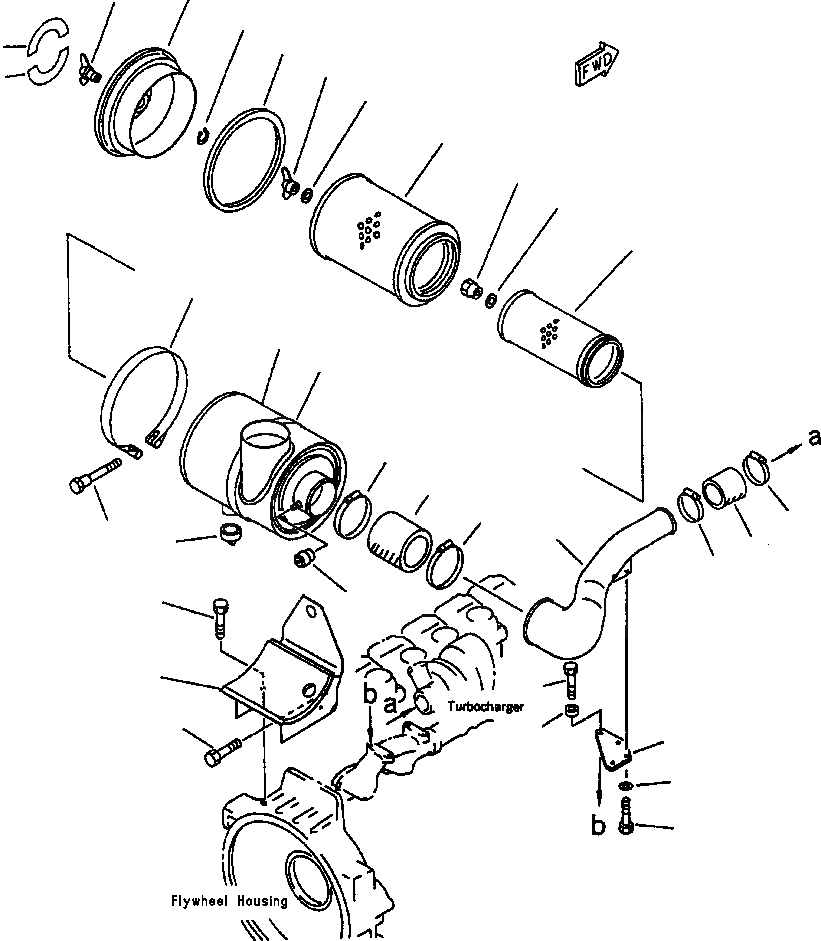

Запчасти Komatsu PC400LC-5 ВОЗДУХООЧИСТИТЕЛЬ КРЕПЛЕНИЕ И ПАТРУБКИ - заводской номер 888 И UP ГОЛОВКА ЦИЛИНДРОВ

|$0

6151-81-7750

CLEANER, AIR

1

6151-81-7850

BODY

|$2

600-181-1600

ELEMENT ASSEMBLY, AIR CLEANER

2

NSS

ELEMENT, INNER - AIR CLEANER

3

600-181-4370

NUT

4

600-181-7511

WASHER

|$6

600-181-1660

ELEMENT ASSEMBLY, OUTER

5

NSS

ELEMENT, OUTER - AIR CLEANER

6

561-02-62550

NUT

7

600-181-4440

GASKET

|$10

600-181-1980

COVER ASSEMBLY

8

600-181-1690

COVER

9

600-181-1770

GASKET

10

561-02-62370

NUT ASSEMBLY

11

561-02-12380

CLIP

12

600-181-1370

VALVE

13

6151-13-4260

DUCT

14

6151-11-4451

HOSE

15

07281-01159

CLAMP

16

6151-13-4420

HOSE

17

07281-01589

CLAMP

18

6151-13-4650

BRACKET

19

01010-81045

BOLT

20

6631-11-5630

SPACER

21

01010-81030

BOLT

22

01640-21016

WASHER

23

6151-13-4560

BRACKET

24

01010-81660

BOLT

25

01010-81025

BOLT

26

6151-11-4840

BAND ASSEMBLY

|$30

6691-21-6550

PIN

|$31

6691-21-6560

PIN (WITH THREAD)

27

6643-11-4641

BOLT

28

08670-12001

INDICATOR, AIR CLEANER SERVICE

29

09639-00305

PLATE, INSTRUCTION

30

09638-50305

PLATE, CAUTION
