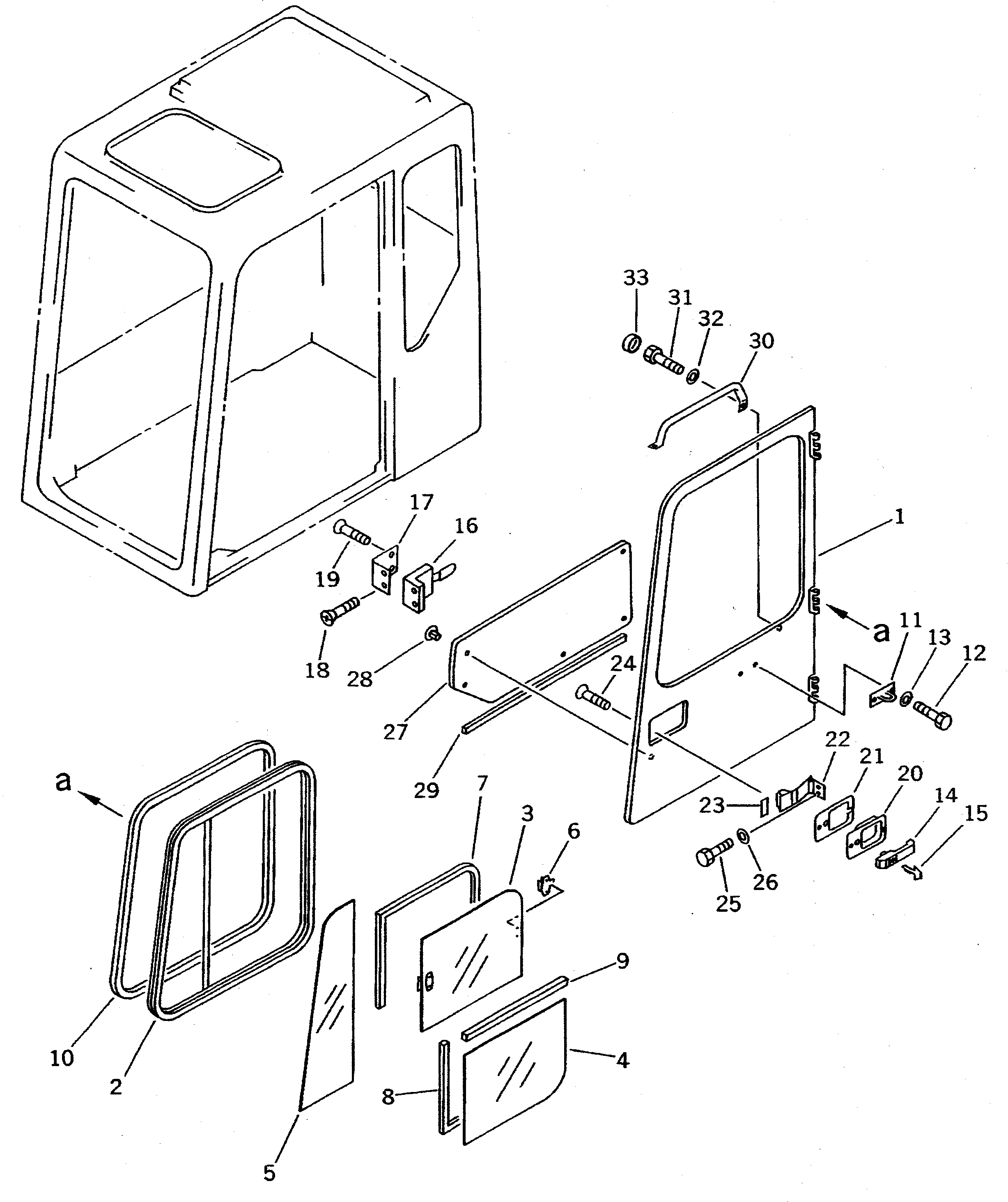

Запчасти Komatsu PC400LC-5 КАБИНА (/) (ДВЕРЬ ASSEMBLY) (СПЕЦ-Я TBG) ЧАСТИ КОРПУСА

|$0

20Y-54-K1100

OPERATOR'S CAB ASS'Y

|$2

20Y-54-K1830

DOOR ASS'Y

1

20Y-54-K1450

DOOR

|$4

20Y-54-K1460

WINDOW ASS'Y,SLIDING

2

20Y-54-K2760

SASH

3

20Y-54-K2780

GLASS,UPPER

4

20Y-54-K2770

GLASS,LOWER

5

20Y-54-K2790

GLASS,SIDE

6

20Y-54-K2810

CATCH

7

20Y-54-K4250

SEAL,UPPER

8

20Y-54-K4260

SEAL,LOWER

9

20Y-54-K4270

SEAL

10

20Y-54-K1470

SEAL,GLAZING

11

20Y-54-K1480

BRACKET

12

01010-50820

BOLT

13

01641-20812

WASHER

14

20Y-54-K4280

HANDLE

15

20Y-54-K4240

KEY

16

20Y-54-K1590

CATCH,LOCK

17

20Y-54-K1610

PLATE

18

01224-40625

SCREW

19

01224-40620

SCREW

20

20Y-54-K1490

PLATE

21

20Y-54-K1520

SEAL,RUBBER

22

20Y-54-K1570

PLATE

23

20Y-54-K1580

STRIP,FOAM

24

20Y-54-K1510

SCREW

25

01016-20515

BOLT

26

01641-20508

WASHER

27

20Y-54-K1540

LINING

28

20Y-54-K1550

BUTTON

29

20Y-54-K4010

SHEET

30

20Y-54-K1560

HANDLE

31

01010-50820

BOLT

32

01641-20812

WASHER

33

20Y-54-K3420

CAP
