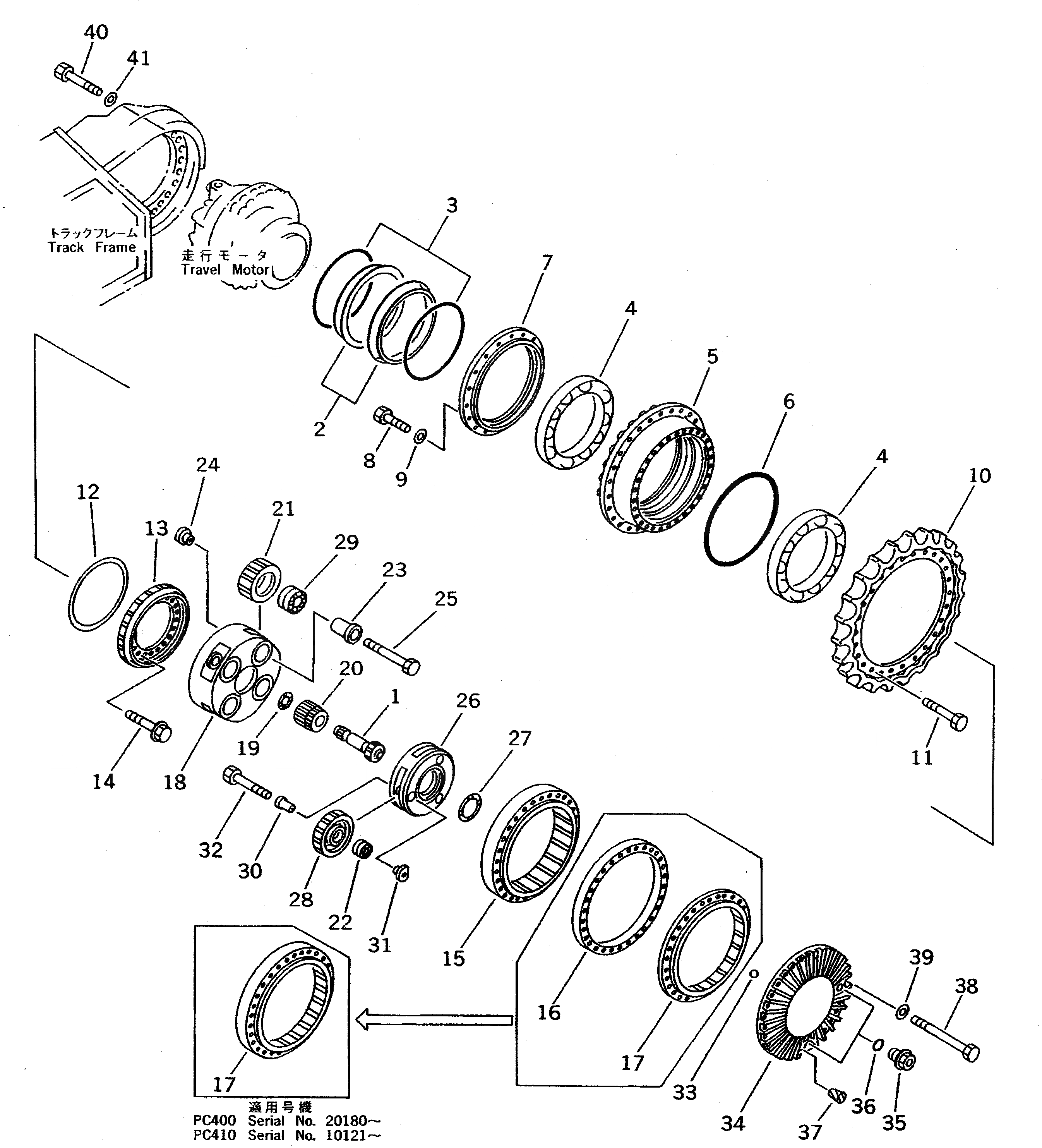

Запчасти Komatsu PC400LC-5 КОНЕЧНАЯ ПЕРЕДАЧА И ЗВЕЗДОЧКА(№-) ХОДОВАЯ
№
Артикул
Название
Примечание
Количество
|1
208-27-00104
FINAL DRIVE ASS'Y
|1
208-27-00103
FINAL DRIVE ASS'Y
|1
208-27-00102
FINAL DRIVE ASS'Y
|1
208-27-00101
FINAL DRIVE ASS'Y
|1
208-27-00100
FINAL DRIVE ASS'Y
1
208-27-52110
SHAFT
|2
17M-27-00102
FLOATING SEAL ASS'Y
|2
17M-27-00101
FLOATING SEAL ASS'Y
|2
17M-27-00100
FLOATING SEAL ASS'Y
2
RING,SEAL
|2
RING,SEAL
3
O-RING
|3
O-RING
4
208-27-51240
BEARING,BALL
5
208-27-52160
HUB
6
208-27-52350
O-RING
7
208-27-51211
COVER
8
01010-51240
BOLT
9
01643-31232
WASHER
10
208-27-31221
SPROCKET
11
207-27-51310
BOLT
12
208-27-00110
SPACER ASS'Y
|12
SPACER¤ 3.25MM
|12
SPACER¤ 3.30MM
|12
SPACER¤ 3.35MM
|12
SPACER¤ 3.40MM
|12
SPACER¤ 3.45MM
|12
SPACER¤ 3.50MM
|12
SPACER¤ 3.55MM
13
208-27-52170
RETAINER
14
208-27-52311
BOLT
|14
208-27-52310
BOLT
15
208-27-52150
GEAR
16
208-27-52290
SPACER
17
208-27-52281
GEAR
|17
208-27-52280
GEAR
18
208-27-52181
CARRIER
|18
208-27-52180
CARRIER
19
207-27-52270
SPACER
20
208-27-52130
GEAR
21
208-27-52140
GEAR
22
208-27-52220
BEARING,ROLLER
23
208-27-52250
PIN
24
208-27-52271
HOLDER
25
01011-52210
BOLT
26
208-27-52190
CARRIER
27
20Y-27-11250
SPACER
|27
205-27-71570
SPACER
28
208-27-52120
GEAR
29
208-27-52230
BEARING,ROLLER
30
208-27-52240
PIN
31
208-27-52260
HOLDER
32
01010-51265
BOLT
33
04260-01905
BALL
34
208-27-52210
COVER
35
07044-12412
PLUG
36
07002-02434
O-RING
37
07049-01215
PLUG
38
208-27-52341
BOLT
|38
208-27-52340
BOLT
39
01643-31845
WASHER
40
01011-52000
BOLT
41
01643-32060
WASHER
Выбрано товаров: 63
