Артикул
Название
Примечание
Количество

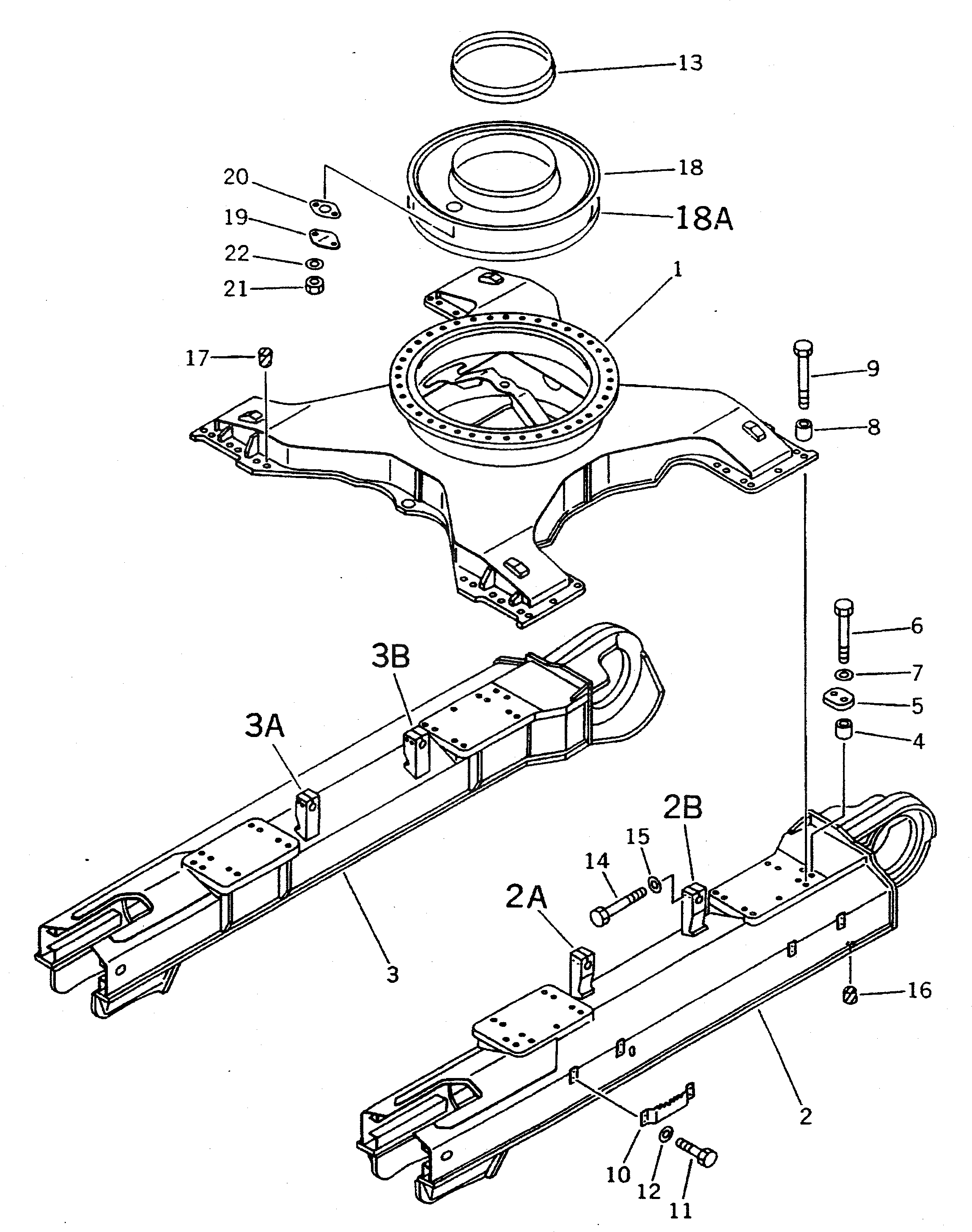

G-1
208-30-X4120
TRACK FRAME GROUP
1
208-30-58110
FRAME
2
208-30-58120
FRAME,L.H.
2A
208-30-51420
PLATE (WELDED)
2B
208-30-51410
PLATE (WELDED)
3
208-30-58130
FRAME,R.H.
3A
208-30-51410
PLATE (WELDED)
3B
208-30-51420
PLATE (WELDED)
4
208-30-31650
COLLAR
5
208-30-12160
PLATE
6
01011-63030
BOLT
7
01643-33080
WASHER
8
208-30-11971
SPACER
9
208-30-12130
BOLT
10
208-30-51260
BRACKET
11
01010-31640
BOLT
12
01643-31645
WASHER
13
205-30-71170
SEAL
14
01011-32000
BOLT
15
01643-32060
WASHER
16
07049-02430
PLUG,(FOR W/O. FULL ROLLER GUARD)
17
07049-03949
PLUG
G-2
208-30-X2260
COVER GROUP
18
208-30-51211
COVER
18A
207-30-51260
SEAL
19
205-30-71181
COVER
20
205-30-71191
GASKET
21
01580-11008
NUT
22
01643-31032
WASHER
Выбрано товаров: 29
