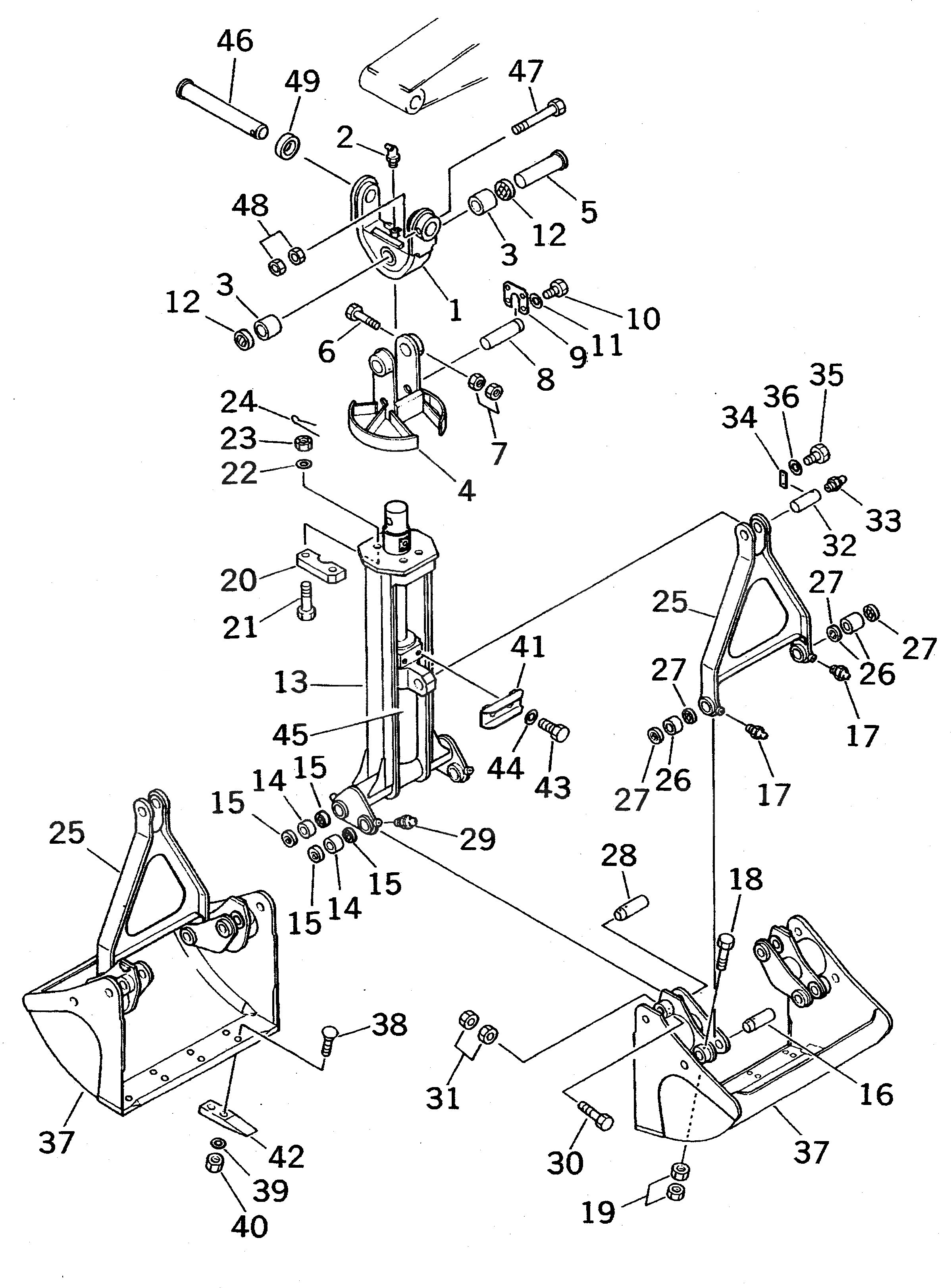

Запчасти Komatsu PC400LC-5 ГРЕЙФЕРН. КОВШ¤ .M (DIGGING ТИП)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

1

208-931-3110

BRACKET

2

07020-00675

FITTING,GREASE

3

208-931-1210

BUSHING

4

208-931-1120

HANGER

5

208-931-1190

PIN

6

01011-51670

BOLT

7

01580-11613

NUT

8

154-71-22470

PIN

9

175-71-21330

PLATE

10

01010-51435

BOLT

11

01643-31445

WASHER

12

07145-10085

SEAL

13

208-931-1130

FRAME

14

07144-10606

BUSHING

15

07145-10060

SEAL

16

208-931-1220

PIN

17

07020-00000

FITTING,GREASE

18

01011-51455

BOLT

19

01580-11411

NUT

20

208-931-1180

PLATE

21

01013-83035

BOLT

22

01643-33080

WASHER

23

01590-13033

NUT

24

04050-16055

PIN,COTTER

25

208-931-1140

LINK

26

07144-10606

BUSHING

27

07145-10060

SEAL

28

208-931-1220

PIN

29

07020-00000

FITTING,GREASE

30

01011-51455

BOLT

31

01580-11411

NUT

32

202-70-48510

PIN

33

07020-00000

FITTING,GREASE

34

04082-00514

LOCK

35

01010-51435

BOLT

36

01643-31445

WASHER

37

208-931-1150

BUCKET

38

02091-11405

BOLT

39

01643-32260

WASHER

40

02290-11422

NUT

41

208-931-1170

SUPPORT

42

208-931-1160

TOOTH

43

01010-51430

BOLT

44

01643-31445

WASHER

45

208-63-92100

CLAMSHELL,CYLINDER

46

208-70-33130

PIN

47

207-70-13340

BOLT

48

01580-12419

NUT

49

208-70-34270

COLLAR
