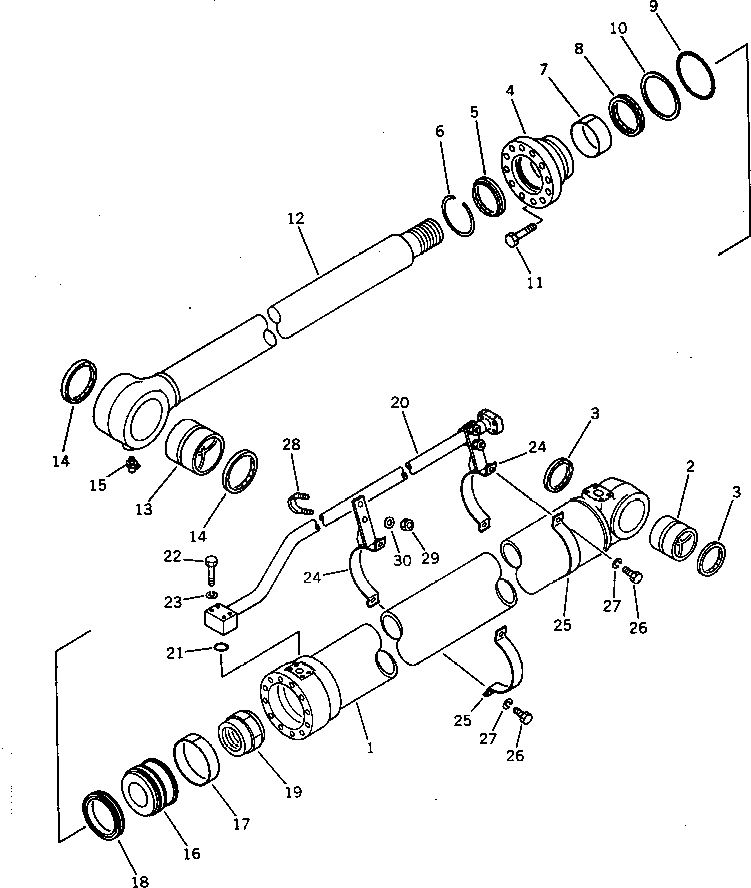

Запчасти Komatsu PC400LC-3 ЦИЛИНДР КОВША (ДЛЯ ПОГРУЗ.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

208-63-74100

CYLINDER ASS'Y,BUCKET¤ L.H.

|1

208-63-74200

CYLINDER ASS'Y,BUCKET¤ R.H.

1

208-63-74140

CYLINDER

2

707-76-80010

BUSHING

3

07145-00080

SEAL,DUST

4

707-27-13870

HEAD,CYLINDER

5

707-56-95510

SEAL,DUST

6

707-75-10030

RING,SNAP

7

707-52-10950

BUSHING

8

707-51-95211

PACKING,ROD

9

07000-12125

O-RING

10

07146-02126

RING,BACK-UP

11

01010-51655

BOLT

12

208-63-74120

ROD,PISTON

13

707-76-10130

BUSHING

14

07145-00100

SEAL,DUST

15

07020-00900

FITTING,GREASE

16

707-36-13461

PISTON

17

07155-01330

RING,WEAR

18

707-44-13080

RING,PISTON

19

707-68-10680

NUT

20

208-72-36450

TUBE,L.H.

|20

208-72-36440

TUBE,R.H.

21

07000-13030

O-RING

22

01010-50865

BOLT

23

01602-20825

WASHER,SPRING

24

707-88-97680

BAND

25

707-88-99310

BAND

26

01010-51035

BOLT

27

01602-21030

WASHER,SPRING

28

07283-23442

CLIP

29

01599-01011

NUT

30

01643-31032

WASHER
