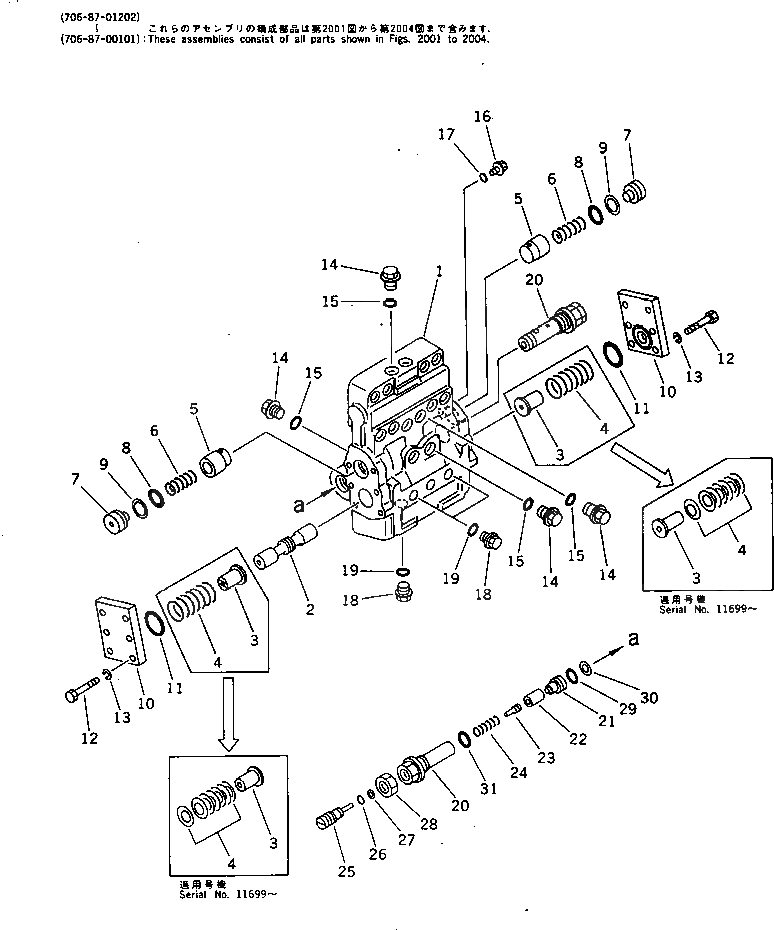

Запчасти Komatsu PC400LC-3 МОТОР ХОДА (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

706-87-01202

TRAVEL MOTOR ASS'Y

|$1

706-87-01201

TRAVEL MOTOR ASS'Y

|$2

706-87-01200

TRAVEL MOTOR ASS'Y

|$3

706-87-00101

TRAVEL MOTOR ASS'Y

|$4

702-67-01100

BRAKE VALVE ASS'Y

|$5

706-77-72801

BRAKE VALVE ASS'Y

1

BODY,VALVE

1

BODY,VALVE

2

SPOOL

3

706-77-72370

RETAINER

3

706-77-72190

RETAINER

4

706-76-71420

SPRING

4

706-77-72250

SPRING

5

706-77-72130

VALVE

6

706-77-72140

SPRING

7

706-77-72260

SEAT

8

07000-13038

O-RING

9

07001-03038

RING,BACK-UP

10

702-67-11120

COVER

10

706-77-72270

PLATE

11

07000-13050

O-RING

12

702-67-11130

BOLT

12

01010-51240

BOLT

13

01602-21236

WASHER,SPRING

14

706-77-72170

PLUG

15

07002-12434

O-RING

16

706-75-71420

PLUG

17

07002-10823

O-RING

18

706-73-71450

PLUG

19

07002-11423

O-RING

|$30

706-77-76900

C.O.R. VALVE ASS'Y

20

SLEEVE

21

SEAT,VALVE

22

VALVE

23

PISTON

24

SPRING

25

SCREW

26

O-RING

27

RING,BACK-UP

28

NUT

29

07000-22020

O-RING

30

07001-02020

RING,BACK-UP

31

07002-13034

O-RING
