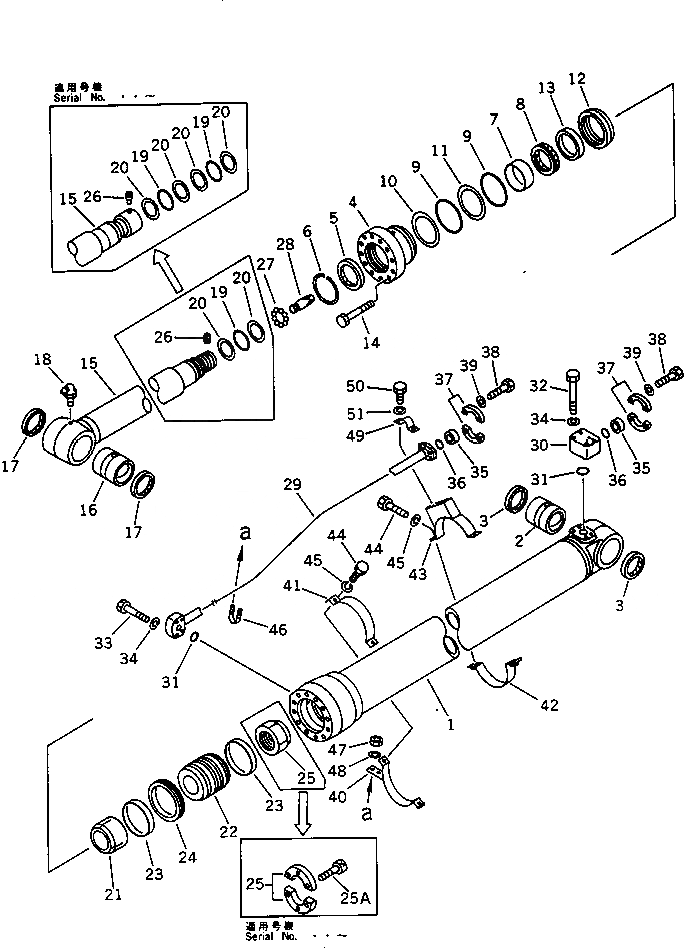

Запчасти Komatsu PC400LC-3 ЦИЛИНДР РУКОЯТИ(ДЛЯ ЭКСКАВАТ.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
208-63-62102
ARM CYLINDER ASS'Y
|$1
208-63-62101
ARM CYLINDER ASS'Y
|$2
208-63-62100
ARM CYLINDER ASS'Y
1
208-63-62140
CYLINDER
2
707-76-11130
BUSHING
3
07145-00110
SEAL,DUST
4
707-28-18370
HEAD,CYLINDER
5
195-63-93170
SEAL,DUST
6
707-75-12010
RING,SNAP
7
07177-01240
BUSHING
8
707-51-12110
PACKING,ROD
9
07000-15175
O-RING
10
707-35-91850
RING,BACK-UP
11
07001-05175
RING,BACK-UP
12
707-71-31250
COLLAR
13
707-71-11250
RING
14
01010-52475
BOLT
15
208-63-62122
ROD,PISTON
15
208-63-62121
ROD,PISTON
15
208-63-62120
ROD,PISTON
16
707-76-11130
BUSHING
17
07145-00110
SEAL,DUST
18
07020-00900
FITTING,GREASE
19
07000-12100
O-RING
19
07000-12095
O-RING
20
707-35-52940
RING,BACK-UP
20
07001-02095
RING,BACK-UP
21
707-71-51550
PLUNGER
21
707-71-51250
PLUNGER
22
707-36-18250
PISTON
22
707-36-18220
PISTON
23
707-39-18820
RING,WEAR
23
07156-01822
RING,WEAR
24
707-44-18180
RING,PISTON
24
707-44-18080
RING,PISTON
25
707-40-18870
SPACER
25
19M-63-52271
NUT
25A
01252-31455
BOLT
26
707-71-91040
SCREW
26
209-63-66290
SCREW
27
04260-00952
BALL
28
707-71-50351
PLUNGER
29
208-63-62170
TUBE
30
20D-62-17860
ELBOW
31
07000-13035
O-RING
32
01010-51070
BOLT
33
01010-51060
BOLT
34
01602-21030
WASHER,SPRING
35
07378-11000
HEAD
36
07000-13032
O-RING
37
07371-31049
FLANGE,SPLIT
38
07372-21035
BOLT
38
07372-21030
BOLT
39
01643-51032
WASHER
39
01602-21030
WASHER,SPRING
40
707-88-99850
BAND
41
707-88-99600
BAND
42
707-88-99840
BAND
43
707-88-99830
BAND
44
01010-51240
BOLT
45
01602-21236
WASHER,SPRING
46
07283-23442
CLIP
47
01599-01011
NUT
48
01643-31032
WASHER
49
07282-03411
CLAMP
50
01010-51025
BOLT
51
01602-21030
WASHER,SPRING
Выбрано товаров: 67
