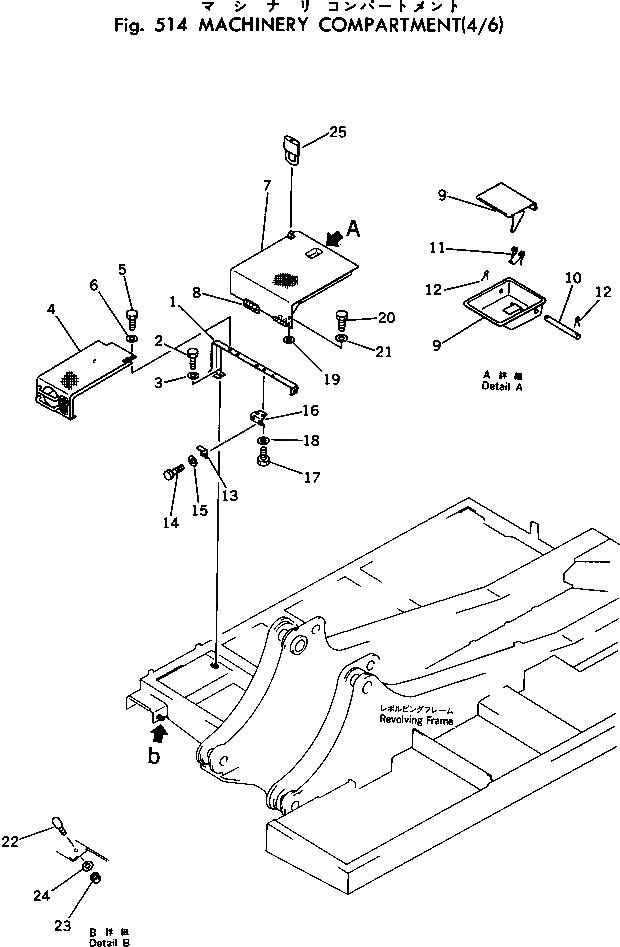

Запчасти Komatsu PC400LC-1 MACHINERY ОБСТАНОВКА (/) ОСНОВНАЯ РАМА И КАБИНА

1

208-54-12531

BRACKET

2

01010-51225

BOLT

3

01643-31232

WASHER

4

208-54-12512

COVER

4

208-54-12511

COVER

5

01010-51230

BOLT

6

01643-31232

WASHER

7

208-54-12521

COVER

8

203-54-22470

HINGE (WELDED)

9

09461-00021

LEVER

10

09461-00022

PIN

11

09461-00023

SPRING

12

04050-13018

PIN,COTTER

13

208-54-12550

PLATE

14

01010-51020

BOLT

15

01643-31032

WASHER

16

208-54-12540

BRACKET

17

01010-51020

BOLT

18

01643-31032

WASHER

19

175-03-32560

SPACER

20

01010-51230

BOLT

21

01643-31232

WASHER

22

205-54-63460

STOPPER

23

01580-10806

NUT

24

01643-30823

WASHER

25

09460-00000

LOCK
