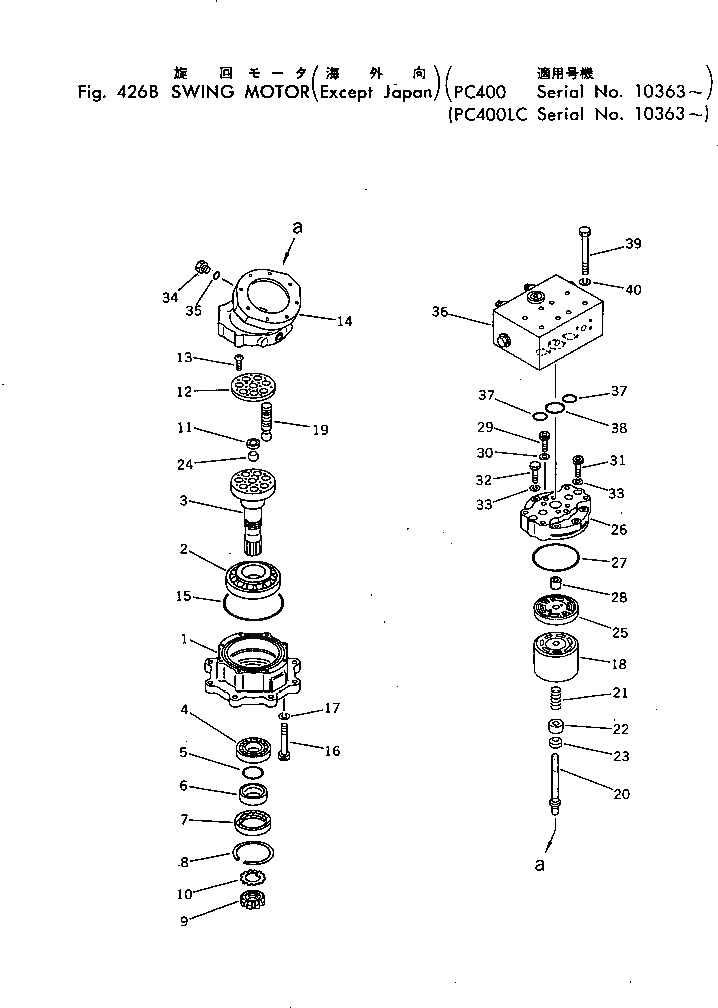

Запчасти Komatsu PC400LC-1 МОТОР ПОВОРОТА (КРОМЕ ЯПОН.)(№-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

|$0

706-77-03501

MOTOR ASS'Y

|$1

706-77-41001

MOTOR ASS'Y

1

COVER,FRONT

2

BEARING

3

SHAFT,DRIVE

4

BEARING

5

O-RING

6

RING

7

SEAL,OIL

8

RING,SNAP

9

NUT

10

WASHER,LOCK

11

HOLDER

12

RETAINER

13

SCREW

14

CASE,PUMP

15

O-RING

16

BOLT

17

WASHER,SPRING

18

BLOCK,CYLINDER

19

PISTON SUB ASS'Y

20

SHAFT,CENTER

21

SPRING

22

PLATE,THRUST

23

SEAT,BALL

24

BALL,CENTER

25

PLATE,VALVE

26

COVER,END

27

O-RING

28

BEARING

29

BOLT

30

GASKET,SEAL

31

BOLT

32

BOLT

33

WASHER,SPRING

34

07040-12012

PLUG

35

07002-02034

O-RING

36

706-77-73701

BRAKE VALVE ASS'Y

37

07000-13035

O-RING

38

07000-02055

O-RING

39

01011-51455

BOLT

40

01602-21442

WASHER,SPRING

1K

706-98-05010

DRIVE SHAFT KIT

2

BEARING

3

SHAFT,DRIVE

5

O-RING

7

SEAL,OIL

10

WASHER,LOCK

11

HOLDER

12

RETAINER

13

SCREW

15

O-RING

18

BLOCK,CYLINDER

19

PISTON SUB ASS'Y

20

SHAFT,CENTER

21

SPRING

22

PLATE,THRUST

23

SEAT,CENTER

24

BALL,CENTER

25

O-RING

29

BOLT

30

GASKET,SEAL
