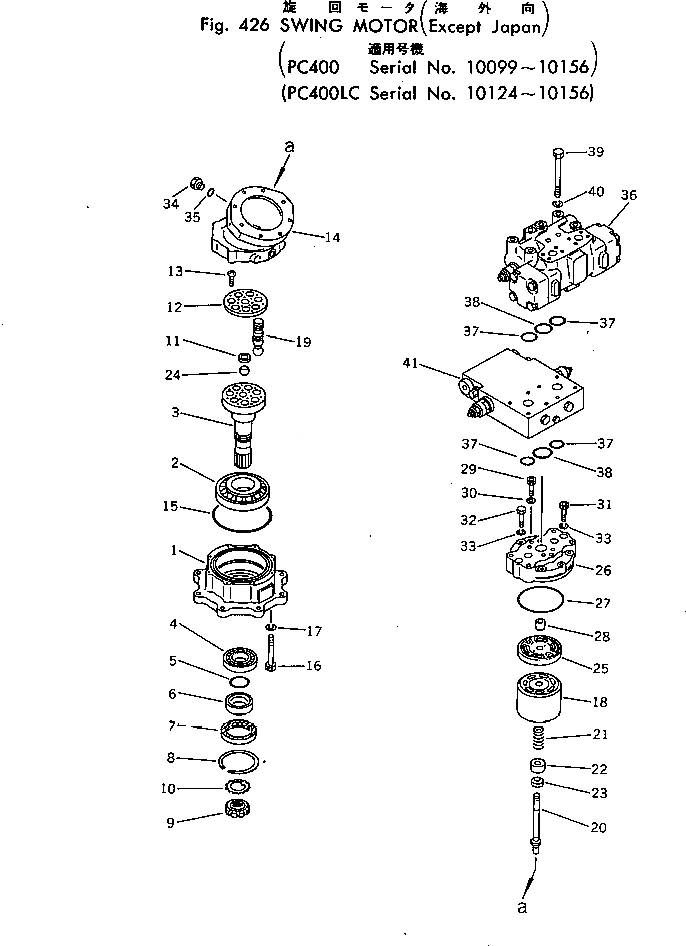

Запчасти Komatsu PC400LC-1 МОТОР ПОВОРОТА (КРОМЕ ЯПОН.)(№-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

|$0

706-77-05701

MOTOR ASS'Y

|$1

706-77-41001

MOTOR ASS'Y

1

COVER

2

BEARING (KIT)

3

SHAFT (KIT)

4

BEARING

5

O-RING (KIT)

6

RING

7

SEAL,OIL (KIT)

8

RING,SNAP

9

NUT

10

WASHER (KIT)

11

HOLDER (KIT)

12

RETAINER (KIT)

13

SCREW (KIT)

14

CASE

15

O-RING (KIT)

16

BOLT

17

WASHER,SPRING

18

BLOCK (KIT)

19

PISTON SUB ASS'Y (KIT)

20

SHAFT (KIT)

21

SPRING (KIT)

22

PLATE (KIT)

23

SEAT (KIT)

24

BALL (KIT)

25

PLATE

26

COVER

27

O-RING (KIT)

28

BEARING

29

BOLT (KIT)

30

GASKET (KIT)

31

BOLT

32

BOLT

33

WASHER,SPRING

34

07040-12012

PLUG

35

07002-02034

O-RING

36

706-77-72301

BRAKE VALVE ASS'Y

37

07000-13035

O-RING

38

07000-02055

O-RING

39

01011-51455

BOLT

40

01602-21442

WASHER,SPRING

41

706-77-79101

VALVE ASS'Y

1K

706-98-05010

DRIVE SHAFT KIT

2

BEARING

3

SHAFT

5

O-RING

7

SEAL

10

WASHER

11

HOLDER

12

RETAINER

13

SCREW

15

O-RING

18

BLOCK

19

PISTON SUB ASS'Y

20

SHAFT

21

SPRING

22

PLATE

23

SEAT

24

BALL

25

O-RING

29

BOLT

30

GASKET
