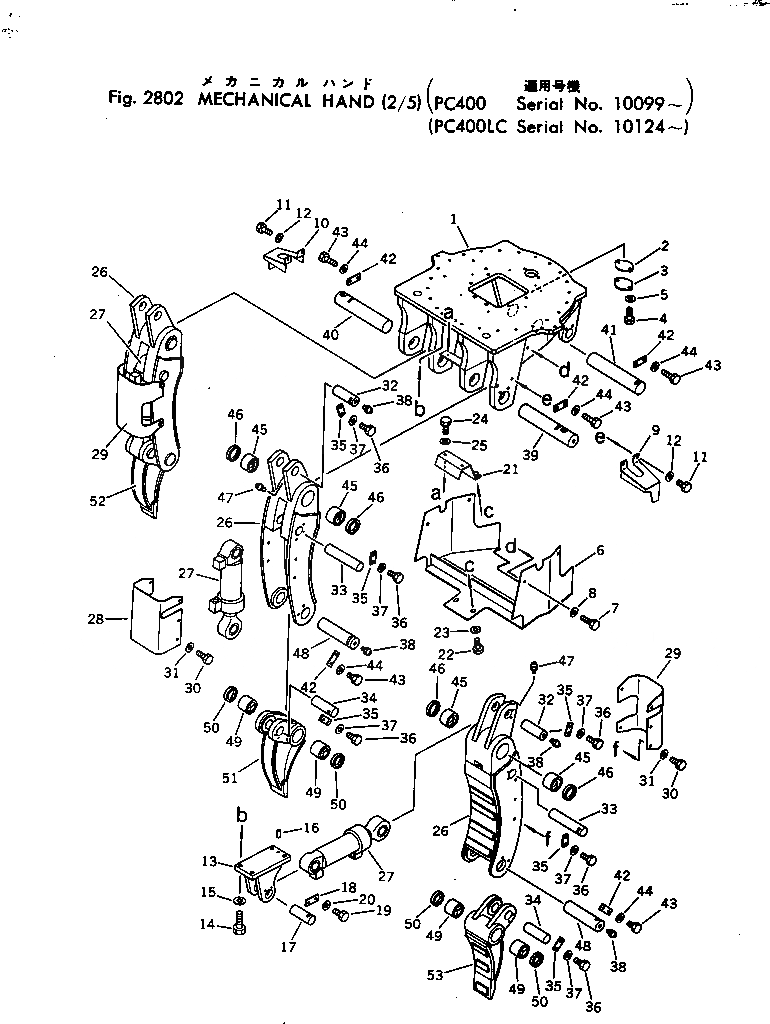

Запчасти Komatsu PC400LC-1 МЕХАНИЧ. HAND (/) ОПЦИОННЫЕ КОМПОНЕНТЫ (СПЕЦ. APPLICATION ЧАСТИ)

1

208-936-2260

BRACKET

2

203-46-31131

COVER

3

203-46-31181

GASKET

4

01010-51230

BOLT

5

01643-31232

WASHER

6

208-936-2820

COVER

7

01010-51235

BOLT

8

01643-31232

WASHER

9

208-936-2840

COVER,L.H.

10

208-936-2850

COVER,R.H.

11

01010-51225

BOLT

12

01643-31232

WASHER

13

208-936-2670

BRACKET

14

01010-52460

BOLT

15

01643-32460

WASHER

16

04020-01638

PIN,DOWEL

17

208-936-2680

PIN

18

04082-00212

LOCK

19

01010-51225

BOLT

20

01643-31232

WASHER

21

208-936-2830

BRACKET

22

01010-51235

BOLT

23

01643-31232

WASHER

24

01010-51025

BOLT

25

01643-31032

WASHER

26

208-936-2710

ARM

27

208-63-21100

CYLINDER ASS'Y

28

208-936-2860

COVER

29

208-936-2870

COVER

30

01010-51430

BOLT

31

01643-31445

WASHER

32

208-936-2690

PIN

33

208-936-2750

PIN

34

208-936-2760

PIN

35

04082-00212

LOCK

36

01010-51225

BOLT

37

01643-31232

WASHER

38

07020-00000

FITTING,GREASE

39

208-936-2730

PIN

40

208-936-2720

PIN

41

208-936-2740

PIN

42

04082-00514

LOCK

43

01010-51435

BOLT

44

01643-31445

WASHER

45

111-92-1171

BUSHING

46

07145-00085

SEAL

47

07020-00000

FITTING,GREASE

48

208-936-2810

PIN

49

11T-21-11140

BUSHING

50

07145-00075

SEAL

51

208-936-2770

LEVER,L.H.

52

208-936-2780

LEVER,R.H.

53

208-936-2790

LEVER
