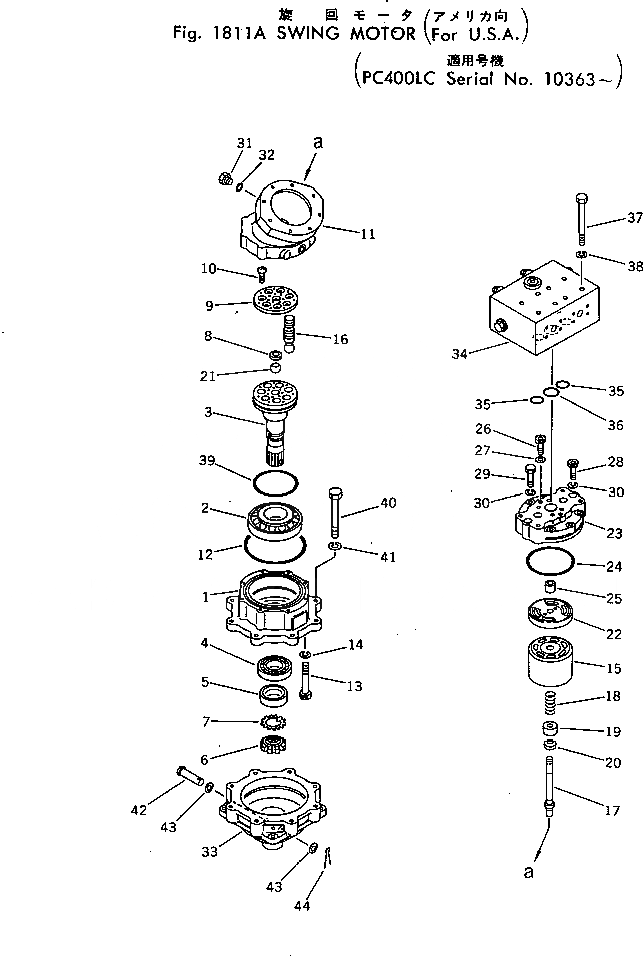

Запчасти Komatsu PC400LC-1 МОТОР ПОВОРОТА (ДЛЯ США)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ (СПЕЦ. APPLICATION ЧАСТИ)

|$0

706-77-05500

MOTOR ASS'Y

|$1

706-77-45000

MOTOR ASS'Y

1

COVER

2

BEARING

3

SHAFT

4

BEARING

5

RING

6

NUT

7

WASHER

8

HOLDER

9

RETAINER

10

SCREW

11

CASE

12

O-RING

13

BOLT

14

WASHER

15

BLOCK

16

PISTON SUB ASS'Y

17

SHAFT

18

SPRING

19

PLATE

20

SEAT

21

BALL

22

PLATE

23

COVER

24

O-RING

25

BEARING

26

BOLT

27

WASHER

28

BOLT

29

BOLT

30

WASHER

31

07040-12012

PLUG

32

07002-02034

O-RING

33

706-77-92000

PARKING BRAKE A.

34

706-77-73700

VALVE ASS'Y

35

07000-13035

O-RING

36

07000-02055

O-RING

37

01011-51445

BOLT

38

01602-21442

WASHER

39

07000-02135

O-RING

40

01010-81655

BOLT

41

01602-21648

WASHER

42

706-77-90160

PIN

43

01641-00812

WASHER

44

04050-02012

PIN
