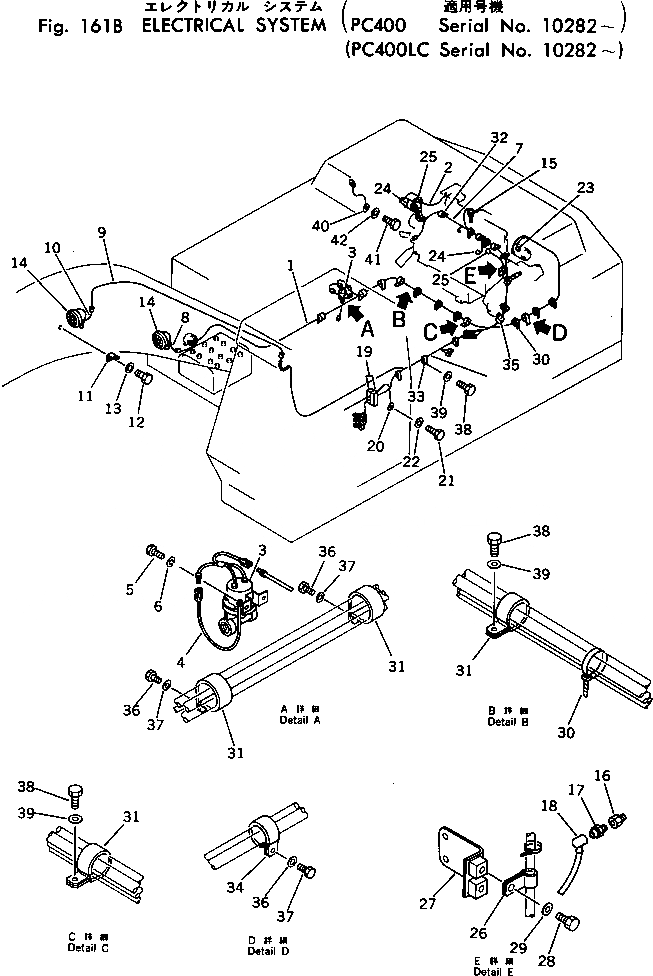

Запчасти Komatsu PC400LC-1 ЭЛЕКТРИКА(№8-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

208-06-11412

WIRE ASS'Y

2

175-06-39760

WIRE

3

205-06-51340

VALVE

4

205-06-51350

WIRE

5

01010-50816

BOLT

6

01602-20825

WASHER,SPRING

7

208-06-11431

WIRE ASS'Y

8

205-06-51390

CABLE

9

208-06-11351

WIRE

10

205-06-51390

CABLE

11

203-06-21290

PLATE

12

01010-51430

BOLT

13

01643-31445

WASHER

14

08128-32400

LAMP

14

08113-02480

BULB, 80W

14

08128-00003

HOLDER

15

08620-00000

SENSOR,THERMO

16

232-06-52390

NIPPLE

17

08073-00505

SWITCH,OIL PRESSURE

18

08038-00519

CAP

19

206-54-15750

SEAL

20

08028-15150

WIRE, 1500MM

21

01010-51020

BOLT

22

01643-31032

WASHER

23

154-06-13130

CAP

24

08038-00519

CAP

25

08038-02027

CAP

26

08035-01514

CLIP

27

208-06-12210

BRACKET

28

01010-51220

BOLT

29

01643-31232

WASHER

30

08034-00519

BAND

31

155-61-15350

CLIP

32

08035-01514

CLIP

33

208-06-12130

CLIP

34

08036-03014

CLIP

35

08036-02514

CLIP

36

01010-51220

BOLT

37

01643-31232

WASHER

38

01010-51220

BOLT

39

01643-31232

WASHER

40

08028-15055

WIRE, 550MM

41

01010-51020

BOLT

42

01643-31032

WASHER
