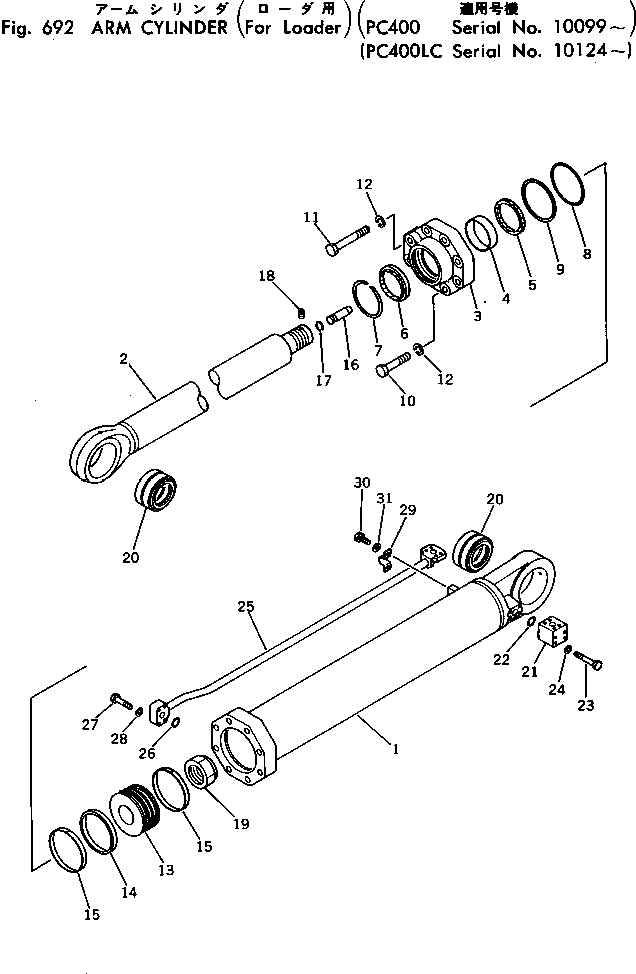

Запчасти Komatsu PC400LC-1 ЦИЛИНДР РУКОЯТИ(ДЛЯ ПОГРУЗ.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

208-63-65500

CYLINDER ASS'Y

1

208-63-65540

CYLINDER

2

208-63-65520

ROD,PISTON

3

707-27-20240

HEAD

4

707-52-11401

BUSHING

5

707-51-14110

PACKING

6

198-63-93170

SEAL,DUST

7

198-63-43530

RING,SNAP

8

07000-15200

O-RING

9

07001-05200

RING

10

01011-83005

BOLT

11

01011-83030

BOLT

12

01601-23075

WASHER,SPRING

13

707-36-20371

PISTON

14

707-44-20080

RING,PISTON

15

07156-02022

RING,WEAR

16

707-71-50350

SCREW

17

04260-00952

BALL

18

209-63-66290

SCREW

19

07165-18583

NUT

20

707-46-11010

BUSHING

21

208-63-66280

ELBOW

22

07000-13035

O-RING

23

01011-51000

BOLT

24

01643-31032

WASHER

25

208-63-65590

TUBE

26

07000-13038

O-RING

27

01010-51260

BOLT

28

01643-31232

WASHER

29

07282-03411

CLAMP

30

01010-51020

BOLT

31

01643-31032

WASHER
