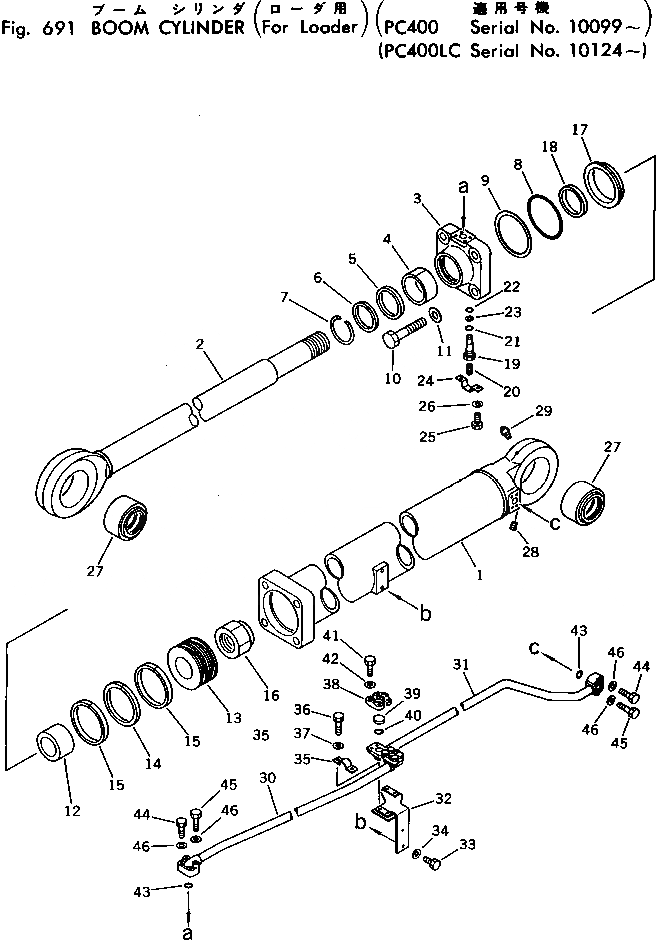

Запчасти Komatsu PC400LC-1 ЦИЛИНДР СТРЕЛЫ(ДЛЯ ПОГРУЗ.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

208-63-55300

CYLINDER ASS'Y,L.H.

|$1

208-63-55400

CYLINDER ASS'Y,R.H.

1

208-63-56142

CYLINDER

2

208-63-56121

ROD,PISTON

3

707-28-18010

HEAD

4

07177-01135

BUSHING

5

707-51-11110

PACKING

6

198-63-94170

SEAL,DUST

7

07179-00135

RING,SNAP

8

07000-15180

O-RING

9

07001-05180

RING

10

01011-83000

BOLT

11

01643-33080

WASHER

12

707-71-51210

PLUNGER

13

707-36-18270

PISTON

14

707-44-18080

RING,PISTON

15

07156-01822

RING,WEAR

16

07165-18583

NUT

17

707-71-11210

RING

18

707-71-31210

COLLAR

19

208-63-56160

CAPILLARY

20

07042-20108

PLUG

21

07002-11823

O-RING

22

07000-11009

O-RING

23

07001-01009

RING

24

208-63-56170

PLATE

25

01010-51425

BOLT

26

01602-21442

WASHER,SPRING

27

205-70-51320

BUSHING

28

07043-00108

PLUG

29

07020-00000

FITTING

30

208-72-16790

TUBE,L.H.

30

208-72-16830

TUBE,R.H.

31

208-72-16780

TUBE,L.H.

31

208-72-16820

TUBE,R.H.

32

707-88-10850

BRACKET,L.H.

32

707-88-10950

BRACKET,R.H.

33

01010-51230

BOLT

34

01643-31232

WASHER

35

07282-03411

CLAMP

36

01010-51025

BOLT

37

01643-31032

WASHER

38

07371-31049

FLANGE

39

07378-11000

HEAD,(FOR SHIPPING)

40

07000-13032

O-RING

41

07372-21035

BOLT

42

01643-51032

WASHER

43

07000-13035

O-RING

44

01010-51055

BOLT

45

01010-51060

BOLT

46

01643-31032

WASHER
