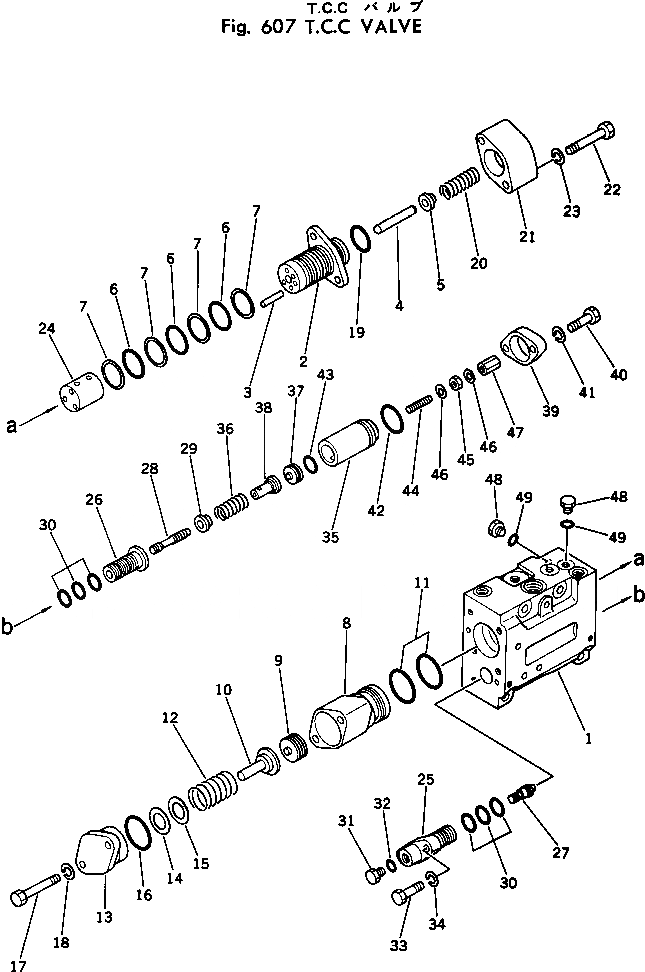

Запчасти Komatsu PC400LC-1 T.C.C КЛАПАН УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

706-46-20302

HYDRAULIC PUMP ASS'Y

|$1

706-46-20301

HYDRAULIC PUMP ASS'Y

|$2

706-46-20300

HYDRAULIC PUMP ASS'Y

|$3

706-46-51600

TCC VALVE ASS'Y

1

BODY ASS'Y

2

FLANGE

3

PISTON

4

PIN

5

RETAINER

6

O-RING

7

RING

8

FLANGE

9

PISTON

10

RETAINER

11

O-RING

12

SPRING

13

COVER

14

SHIM

15

SHIM

16

O-RING

17

BOLT

18

WASHER,SPRING

19

O-RING

20

SPRING

21

COVER

22

BOLT

23

WASHER,SPRING

24

SPOOL

25

COVER

26

SLEEVE

27

PISTON

28

SPOOL

28

SPOOL

29

RETAINER

30

O-RING

31

07040-11007

PLUG

32

07002-01023

O-RING

33

BOLT

34

WASHER,SPRING

35

SLEEVE

36

SPRING

37

STOPPER

38

RETAINER

39

PLATE

40

BOLT

41

WASHER,SPRING

42

O-RING

43

O-RING

44

SCREW

45

NUT

46

WASHER

47

NUT

48

07040-11007

PLUG

49

07002-01023

O-RING
