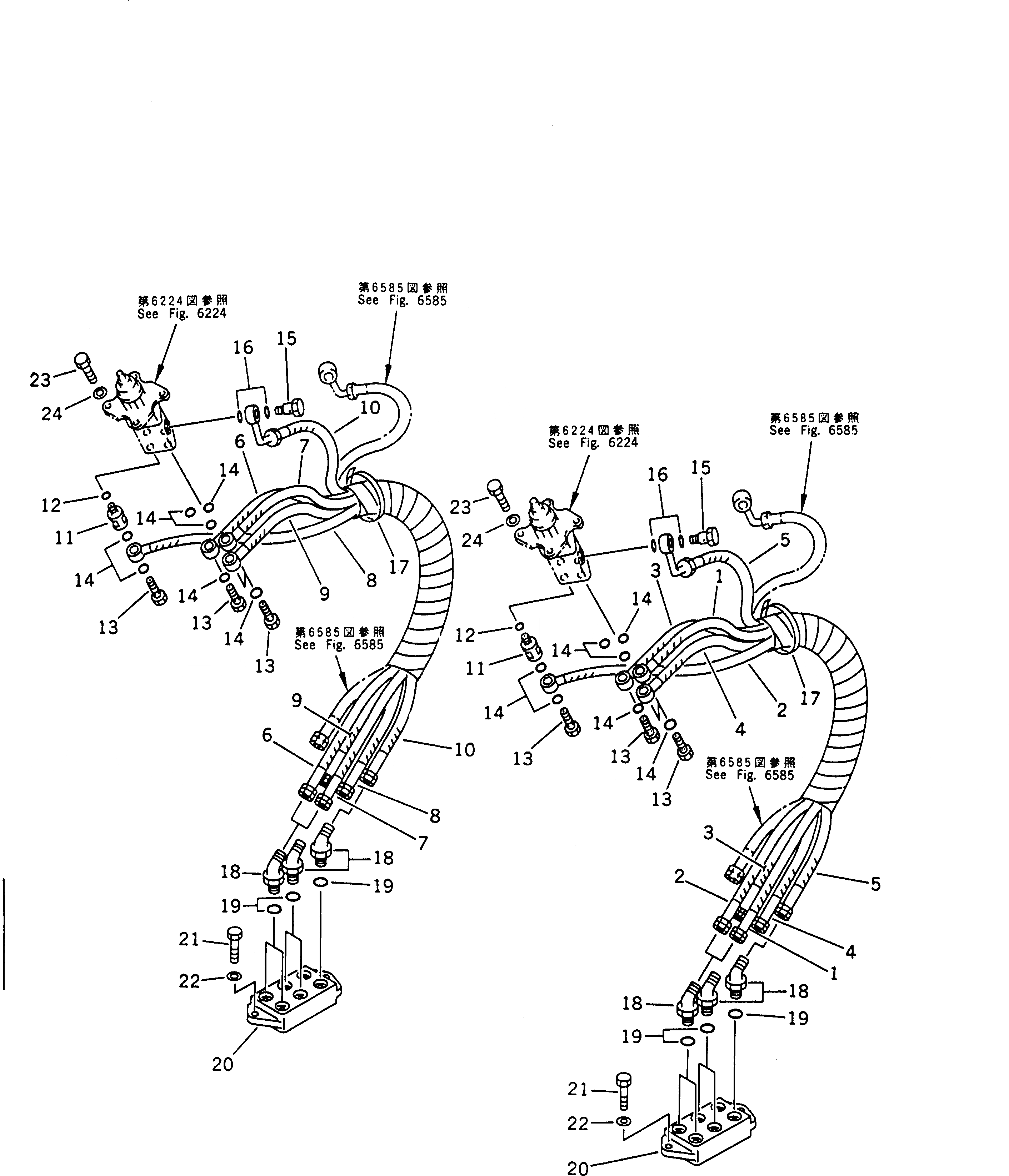

Запчасти Komatsu PC400HD-5K P.P.C. КЛАПАН ТРУБЫ (КЛАПАН PPCTO/FROM БЛОК)(ДЛЯ WRIST CONT УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

G-1

207-62-X1400

PIPING GROUP

1

20Y-62-16161

HOSE¤ 725MM,(YELLOW)

2

20Y-62-16151

HOSE¤ 750MM,(WHITE)

3

20Y-62-16151

HOSE¤ 750MM,(BLACK)

4

20Y-62-16161

HOSE¤ 725MM,(BROWN)

5

20Y-62-16131

HOSE¤ 670MM,(RED)

6

20Y-62-16151

HOSE¤ 750MM,(WHITE)

7

20Y-62-16161

HOSE¤ 725MM,(YELLOW)

8

20Y-62-16151

HOSE¤ 750MM,(BROWN)

9

20Y-62-16161

HOSE¤ 725MM,(BLACK)

10

20Y-62-16131

HOSE¤ 670MM,(RED)

11

20Y-62-16180

NIPPLE

12

07000-02015

O-RING

13

20Y-62-16170

BOLT,EYE

14

07000-02015

O-RING

15

706-46-56290

BOLT,EYE

16

07000-02018

O-RING

17

08034-00823

BAND

18

07236-10315

ELBOW

19

07002-02034

O-RING

20

20Y-62-16221

BLOCK

21

01010-51030

BOLT

22

01643-31032

WASHER

23

01010-50825

BOLT

24

01643-30823

WASHER
