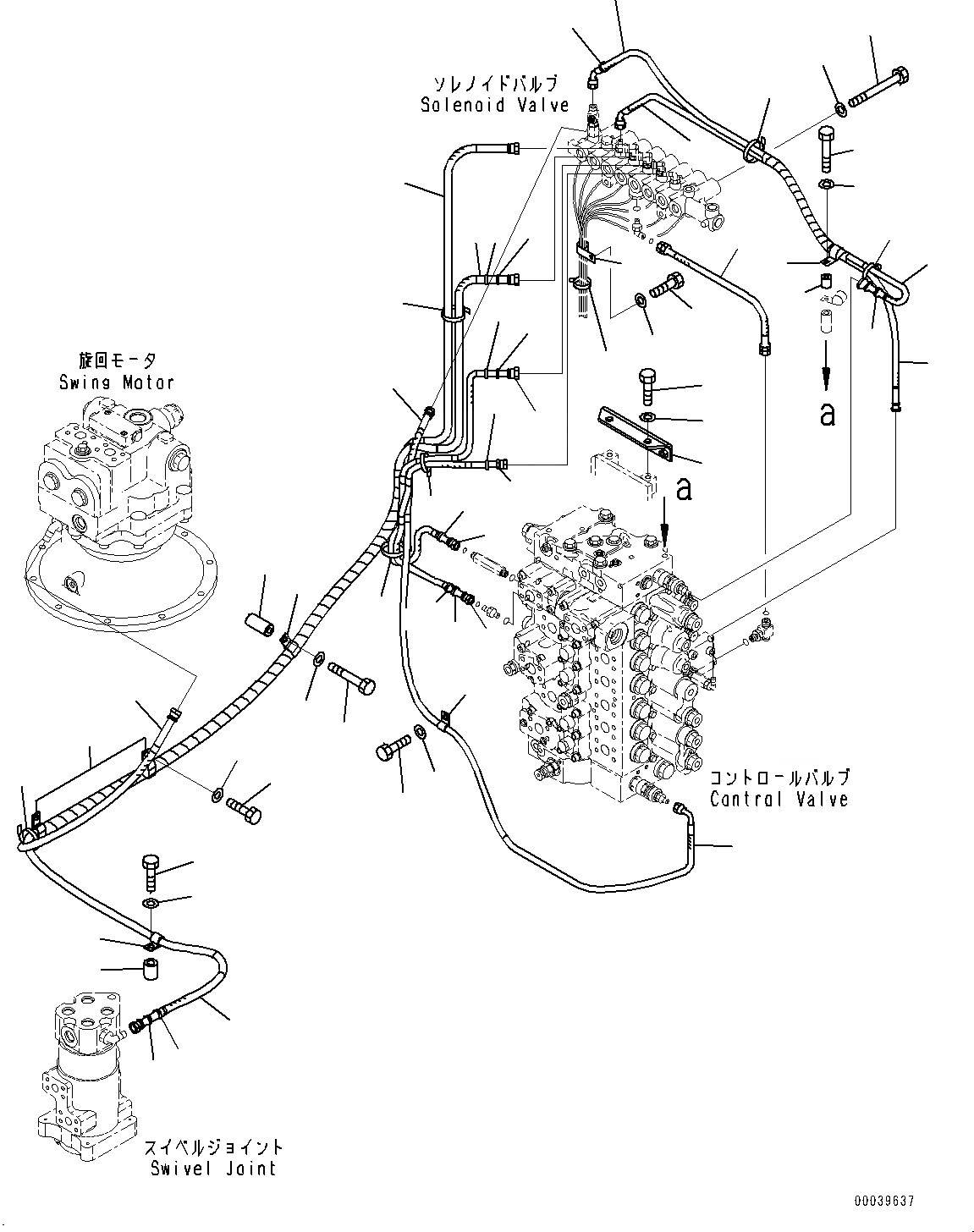

Запчасти Komatsu PC400-8 СОЛЕНОИДНЫЙ КЛАПАН ТРУБЫ, КОРПУС (№7-) СОЛЕНОИДНЫЙ КЛАПАН ТРУБЫ, ДЛЯ CHINA

1

208-62-71791

Bracket

2

01010-81090

Bolt

3

01643-31032

Washer

4

08034-20519

Band

5

02760-00325

Hose

6

02760-00324

Hose, Face Seal Type

7

20Y-62-22790

Band, Red

8

20Y-62-22810

Band, Yellow

9

08034-20536

Band

10

02760-00207

Hose, Face Seal Type

11

11Y-62-29480

Hose

12

02761-00214

Hose, Face Seal Type

13

20Y-62-22810

Band, Yellow

14

20Y-62-22820

Band, Blue

15

20Y-62-22860

Band, Brown

16

08034-20519

Band

17

02764-002A8

Hose, Face Seal Type

18

02764-00209

Hose, Face Seal Type

19

20Y-62-22820

Band, Blue

20

02760-00304

Hose, Face Seal Type

21

04434-51912

Clip

22

01010-81225

Bolt

23

01643-31232

Washer

24

08034-20536

Band

25

04435-51512

Clip

26

176-38-41350

Spacer

27

01010-81285

Bolt

28

01643-31232

Washer

29

04435-51512

Clip

30

01010-81225

Bolt

31

01643-31232

Washer

32

04434-51412

Clip

33

142-03-11160

Spacer

34

01010-81260

Bolt

35

01643-31232

Washer

36

04434-51012

Clip

37

01010-81220

Bolt

38

01643-31232

Washer

39

04435-51312

Clip

40

01643-31232

Washer

41

01011-81210

Bolt

42

195-33-11220

Spacer

43

01010-81230

Bolt

44

01643-31232

Washer
