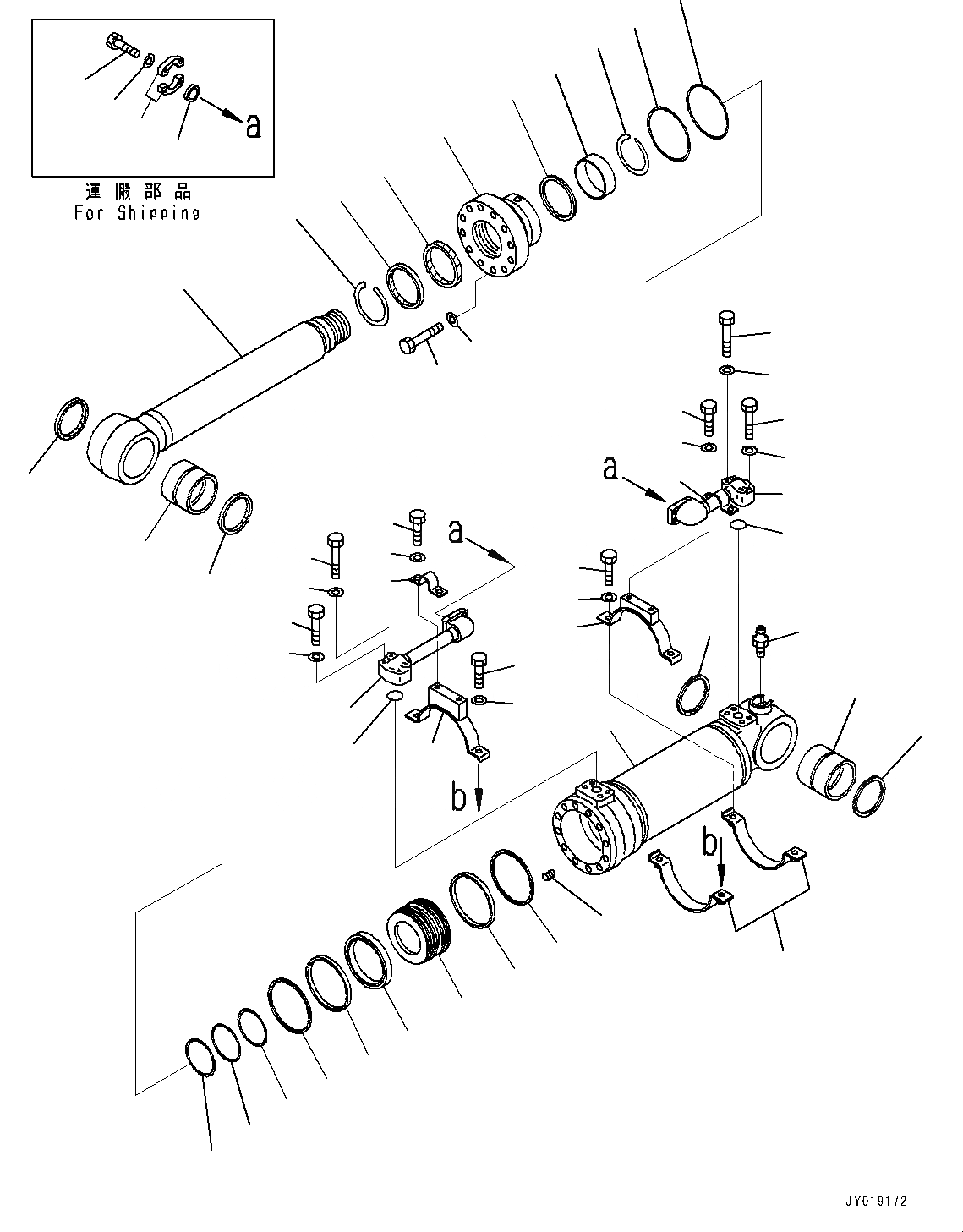

Запчасти Komatsu PC400-8 НИЖН. ГИДРОЦИЛИНДР КОВША, ЦИЛИНДР ЛЕВ. (№7-) НИЖН. ГИДРОЦИЛИНДР КОВША

|$0

707-01-0G400

Cylinder Assembly

1

707-13-13820

Cylinder

2

707-58-90E10

Rod

3

707-76-80010

Bushing

4

07145-00080

Seal, Dust, (Kit : K13)

5

07020-00000

Fitting, Grease

6

205-63-65271

Bushing

7

07145-00080

Seal, Dust, (Kit : K13)

8

707-27-13650

Cylinder Head

9

07179-13104

Ring, Snap

10

707-56-90740

Seal, Dust, (Kit : K13)

11

707-52-90681

Bushing

12

707-51-90030

Packing, Rod, (Kit : K13)

13

707-51-90640

Ring, Buffer, (Kit : K13)

14

07000-15120

O-ring, (Kit : K13)

15

707-35-91320

Ring, Back-up, (Kit : K13)

16

01010-81670

Bolt

17

01643-51645

Washer

18

707-75-90110

Ring, Snap

19

707-36-13780

Piston

20

707-44-13180

Ring, Piston, (Kit : K13)

21

707-39-13150

Ring, Wear, (Kit : K13)

22

707-44-13911

Ring

23

07000-15080

O-ring, (Kit : K13)

24

707-35-90940

Ring, Back-up, (Kit : K13)

25

01310-01216

Screw

26

707-86-67280

Tube

27

208-63-94380

Tube

28

07372-21045

Bolt

29

01643-51032

Washer

30

07372-21060

Bolt

31

01643-51032

Washer

32

07000-13030

O-ring, (Kit : K13)

33

707-88-25820

Bracket

34

707-88-87270

Band

35

07372-21035

Bolt

36

01643-51032

Washer

37

707-88-87280

Bracket

38

01010-81020

Bolt

39

01643-31032

Washer

40

07282-12793

Clamp

41

707-88-33030

Cap

42

07371-30640

Flange, Split

43

07372-21035

Bolt

44

01643-51032

Washer
