Запчасти Komatsu PC400-7 БЛОК В СБОРЕ (С КОНДИЦИОНЕРОМ)(№7-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

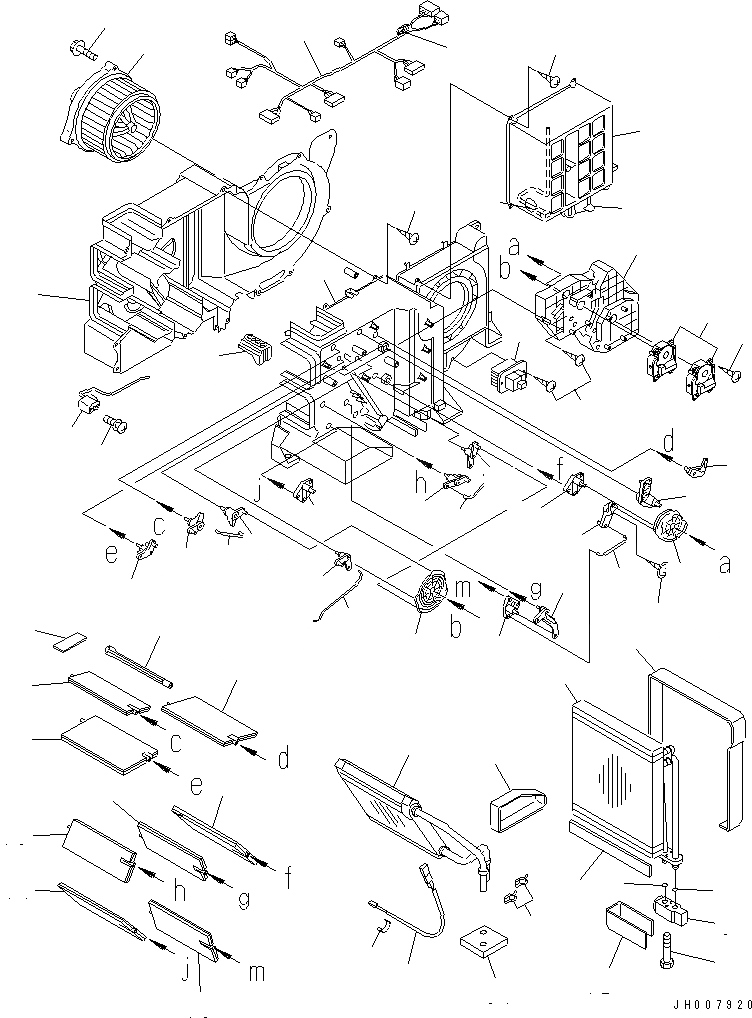

Схема запчастей Komatsu PC400-7 - БЛОК В СБОРЕ (С КОНДИЦИОНЕРОМ)(№7-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
14
15
15
15
15
16
16
17
18
18
19
19
19
20
20
21
21
22
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
38
38
39
40
41
42
43
44
45
46

Артикул

Название

Примечание

Количество

|$1

208-979-7611

AIR CONDITIONER

1

ND245450-9440

CASE,COOLING

2

ND245450-5840

CASE,COOLING

3

ND116576-3810

PLATE

4

ND116576-3820

PLATE

|$6

ND446010-3132

EVAPORATOR ASS'Y,PARTS

5

ND446600-0992

EVAPORATOR

6

ND949142-0020

O-RING

7

ND949142-0030

O-RING

8

ND447500-4760

VALVE,EXPANSION

8

ND447500-2750

VALVE,EXPANSION

9

ND949046-3100

BOLT

10

ND146657-8841

PACKING

11

ND146657-9811

PACKING

12

ND146657-8850

PACKING

13

ND116140-0050

CORE SUB ASS'Y,HEATER

14

ND116660-7570

DOOR SUB ASS'Y

15

ND116650-6850

DOOR SUB ASS'Y

16

ND116780-2481

LEVER SUB ASS'Y,LINK

17

ND116780-2491

LEVER SUB ASS'Y,LINK

18

ND116780-2501

LEVER SUB ASS'Y,LINK

19

ND116780-2510

LEVER SUB ASS'Y,LINK

20

ND116781-3000

LEVER

21

ND116780-3130

LEVER SUB ASS'Y,LINK

22

ND116662-7670

SHAFT

23

ND116662-7681

SHAFT

24

ND116576-3852

PLATE

25

ND116576-3862

PLATE

26

ND063800-0300

SERVO MOTOR ASS'Y

27

ND017231-0700

CLAMP

28

ND170400-4670

SENSOR ASS'Y,THERMO

29

ND145511-0040

HOLDER,REMOTE VALVE

30

ND077800-0750

POWER TRANSISTOR

31

ND146340-0560

BOX ASS'Y

32

ND063600-4580

SERVO MOTOR ASS'Y

33

ND077500-5650

THERMISTOR ASS'Y

34

ND146657-8860

PACKING

35

ND116340-7350

MOTOR ASS'Y,FAN

36

ND949008-0460

SCREW

37

ND949008-0330

SCREW,TAPPING

38

ND949001-1730

SCREW,TAPPING

39

ND246470-8590

HARNESS SUB ASS'Y,WIRE

40

ND93940-05002

FUSE

41

ND116662-8320

SHAFT

42

ND113550-1150

THERMOSTAT ASS'Y

43

ND91370-04101

SCREW

44

ND116780-3920

LEVER SUB ASS'Y

45

ND146667-0381

PACKING

46

ND146667-0440

PACKING

Выбрано товаров: 49
