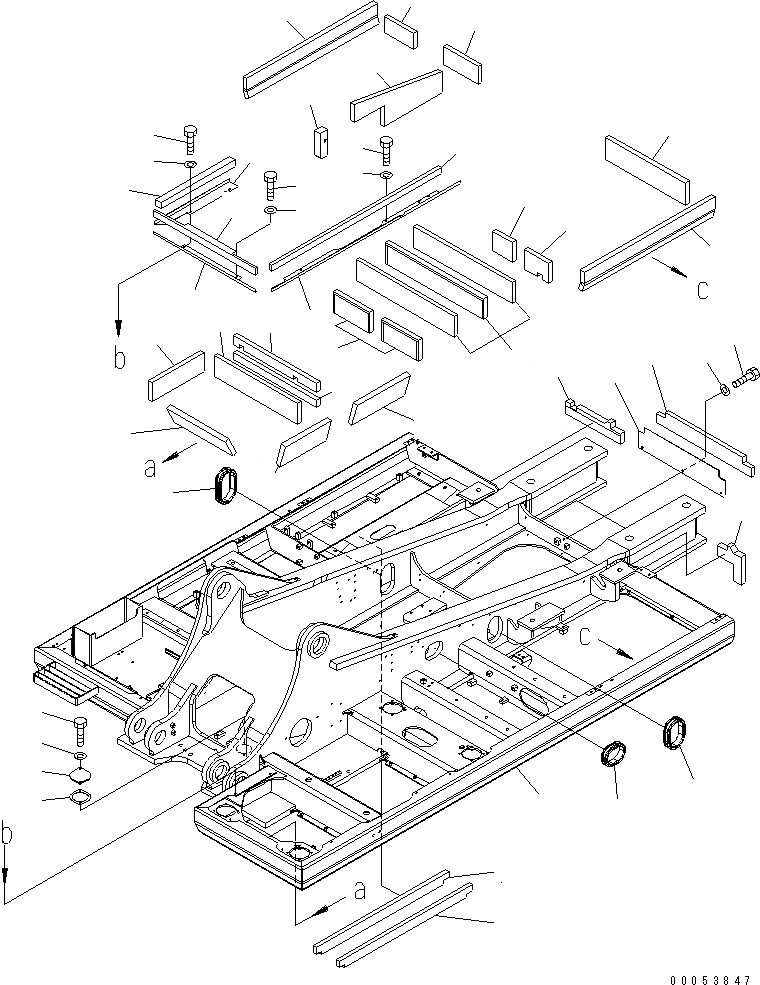

Запчасти Komatsu PC400-7 ОСНОВНАЯ РАМА (СПЕЦ-Я -40С)(№7-) ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

1

208-46-71503

FRAME

1

208-46-71502

FRAME

1

208-46-71501

FRAME

2

205-30-71181

COVER

3

205-30-71191

GASKET

4

01010-81230

BOLT

5

01643-31232

WASHER

6

208-46-73310

SHEET

7

208-46-73322

SHEET

8

208-46-73330

SHEET

9

208-03-71711

SEAL

10

208-46-71410

COVER

11

208-46-71420

SHEET

12

01010-81225

BOLT

13

01643-31232

WASHER

14

208-46-72410

SHEET

15

20Y-46-42310

SHEET

16

20Y-46-42320

SHEET

17

20Y-46-42330

SHEET

18

20Y-46-42340

SHEET

19

20Y-46-42350

SHEET

20

20Y-46-42360

SHEET

21

207-46-71510

SHEET

22

208-46-75650

SHEET

|$35

20Y-46-42412

COVER

23

COVER

24

20Y-46-42232

SEAL

|$39

20Y-46-42427

COVER

|$40

20Y-46-42423

COVER

25

COVER

25

COVER

26

20Y-46-42253

SEAL

26

20Y-46-42252

SEAL

|$47

207-46-71543

COVER

|$48

207-46-71542

COVER

27

COVER

27

COVER

28

207-46-71561

SEAL

28

207-46-71560

SEAL

29

01010-81035

BOLT

30

01643-31032

WASHER

31

208-62-72810

GROMMET

32

208-62-72820

GROMMET

33

208-62-72830

GROMMET

34

208-46-75110

SHEET

35

208-46-75140

SHEET

36

208-46-75220

SHEET

37

208-46-75240

SHEET

38

208-46-75250

SHEET

39

208-46-75280

SHEET

40

208-46-75290

SHEET

41

208-46-75640

SHEET
