Запчасти Komatsu PC400-6Z ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

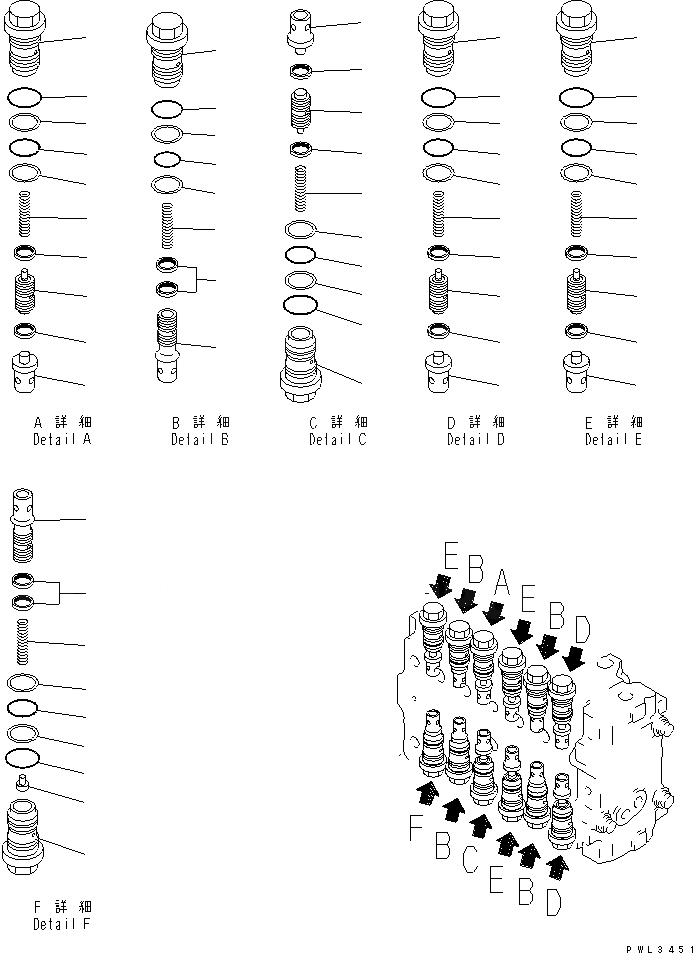

Схема запчастей Komatsu PC400-6Z - ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
1
1
1
2
3
4
5
5
6
7
7
8
9
10
11
12
13
14
14
15
16
17
18
19
19
20
21
21
22
23
24
25
26
26
27
28
28
29
30
31
32
33
33
34
35
35
36
37
38
39
40
41
42
42
43
44

Артикул

Название

Примечание

Количество

|$4

723-48-17801

CONTROL VALVE

|$5

723-48-17800

CONTROL VALVE

|$6

723-48-17502

CONTROL VALVE

|$7

723-48-17501

CONTROL VALVE

|$9

BODY SUB ASS'Y

|$10

BODY SUB ASS'Y

|$11

BODY SUB ASS'Y

|$12

BODY SUB ASS'Y

1

723-46-41110

VALVE

|$14

723-46-40100

VALVE ASS'Y

2

SLEEVE

3

PISTON SUB ASS'Y

4

SPRING

5

SEAL

6

700-93-11320

O-RING

7

723-46-41950

RING

8

07002-13634

O-RING

|$22

723-46-42500

VALVE ASS'Y

|$23

723-46-40901

VALVE ASS'Y

|$24

723-46-40900

VALVE ASS'Y

9

SLEEVE

9

SLEEVE

9

SLEEVE

10

VALVE

10

VALVE

10

VALVE

11

SPRING

12

SEAL

12

SEAL

13

700-93-11320

O-RING

14

723-46-41950

RING

15

07002-13634

O-RING

|$37

723-46-40601

VALVE ASS'Y

16

SLEEVE

17

PISTON SUB ASS'Y

18

SPRING

19

SEAL

20

700-93-11320

O-RING

21

723-46-41950

RING

22

07002-13634

O-RING

|$45

723-46-44100

VALVE ASS'Y

23

SLEEVE

24

PISTON SUB ASS'Y

25

SPRING

26

SEAL

27

700-93-11320

O-RING

28

723-46-41950

RING

29

07002-13634

O-RING

|$53

723-46-45100

VALVE ASS'Y

30

SLEEVE

31

PISTON SUB ASS'Y

32

SPRING

33

SEAL

34

700-93-11320

O-RING

35

723-46-41950

RING

36

07002-13634

O-RING

|$61

723-46-45200

VALVE ASS'Y

37

SLEEVE

38

VALVE SUB ASS'Y

39

SPRING

40

SEAL

41

700-93-11320

O-RING

42

723-46-41950

RING

43

07002-13634

O-RING

44

723-46-41980

RETAINER

Выбрано товаров: 65
