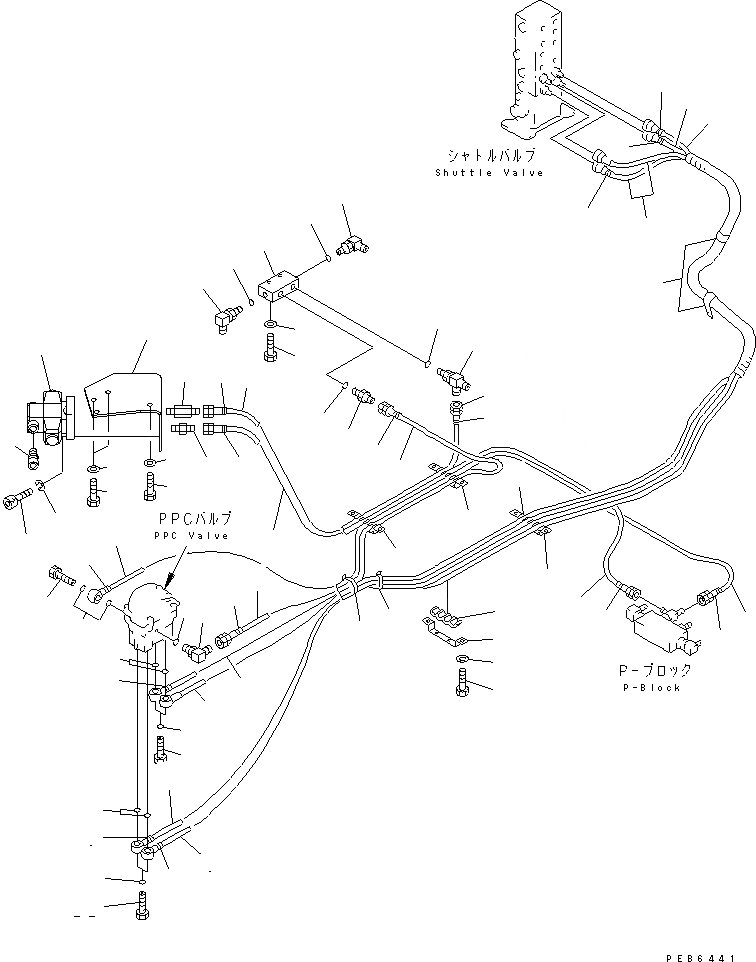

Запчасти Komatsu PC400-6Z ОСНОВН. КОНСТРУКЦИЯ (PPC ЛИНИЯ ХОДА) (ПОГРУЗ.)(№-999) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

08034-00536

BAND

2

207-62-62720

HOSE, 2950MM

3

207-62-62730

HOSE, 3000MM

4

207-62-62740

HOSE, 3050MM

5

20Y-62-22170

CLAMP

6

20Y-62-22790

BAND, RED

7

20Y-62-22820

BAND, BLUE

8

20Y-62-22850

BAND, GREEN

9

20Y-62-22870

HOSE, 1100MM

10

20Y-62-22790

BAND, RED

11

20Y-62-22880

HOSE, 980MM

12

20Y-62-22820

BAND, BLUE

13

20Y-62-23370

HOSE, 1200MM

14

20Y-62-22790

BAND, RED

15

20Y-62-23380

HOSE

16

20Y-62-22810

BAND, YELLOW

17

702-16-53240

PLUG

18

07000-02018

O-RING

19

207-62-33920

ELBOW

20

07002-01423

O-RING

21

08034-00519

BAND

22

20Y-62-18890

BOLT, JOINT

23

07000-02015

O-RING

24

20Y-62-22180

CLAMP

25

01010-81016

BOLT

26

01643-31032

WASHER

27

20Y-62-15831

BLOCK

28

207-62-33920

ELBOW

29

07002-01423

O-RING

30

207-62-33920

ELBOW

31

07002-01423

O-RING

32

205-62-55270

NIPPLE

33

07002-01423

O-RING

34

21T-62-29960

TEE

35

07002-01423

O-RING

36

01010-81045

BOLT

37

01643-31032

WASHER

38

04434-52712

CLIP

39

209-60-12830

VALVE ASS'Y

40

21T-06-12530

CONNECTOR

41

01252-40535

BOLT

42

01601-20513

WASHER

43

208-06-61230

BRACKET

44

01010-81025

BOLT

45

01010-81020

BOLT

46

01643-31032

WASHER

47

566-35-14370

UNION

48

21T-62-77410

CONNECTOR
