Запчасти Komatsu PC400-6Z ОСНОВН. ЛИНИЯ PPC (КЛАПАН ЛИНИИ PPC) ( И АКТУАТОР)(№77-999) ГИДРАВЛИКА

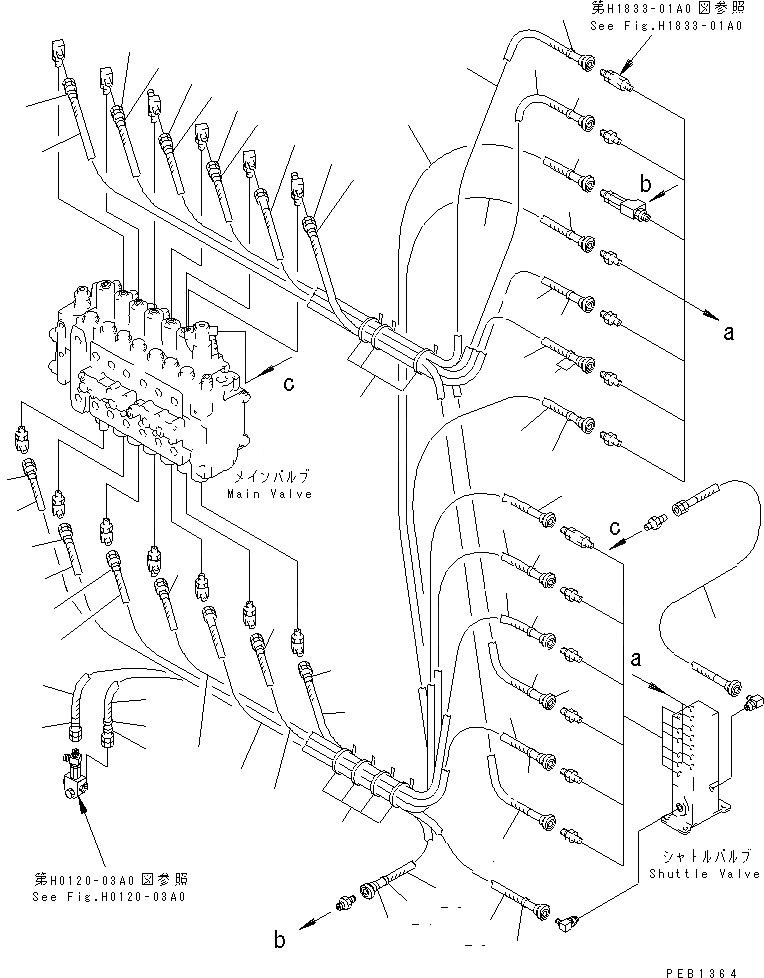

Схема запчастей Komatsu PC400-6Z - ОСНОВН. ЛИНИЯ PPC (КЛАПАН ЛИНИИ PPC) ( И АКТУАТОР)(№77-999) ГИДРАВЛИКА
1
2
2
3
3
4
4
5
5
6
6
7
7
7
8
8
9
9
10
10
11
11
12
12
13
14
14
15
15
15
15
16
16
17
17
18
18
19
19
20
20
21
21
21
21
22
22
23
23
24
24
25
25
26
26
27
28
28
29
29
30

Артикул

Название

Примечание

Количество

1

08034-00536

BAND

2

207-62-63630

HOSE, 470MM

3

20Y-62-22850

BAND, GREEN

4

207-62-63420

HOSE, 920MM

5

20Y-62-22830

BAND, WHITE

6

20Y-62-22680

HOSE, 520MM

7

20Y-62-22840

BAND, BLACK

8

20Y-62-22670

HOSE, 355MM

9

20Y-62-22790

BAND, RED

10

20Y-62-22660

HOSE, 470MM

11

20Y-62-22720

HOSE, 535MM

12

20Y-62-22820

BAND, BLUE

13

08034-00536

BAND

14

20Y-62-22720

HOSE, 535MM

15

20Y-62-22790

BAND, RED

16

20Y-62-22740

HOSE, 675MM

17

20Y-62-22860

BAND, BROWN

18

207-62-63640

HOSE, 620MM

19

20Y-62-22820

BAND, BLUE

20

20Y-62-22760

HOSE, 840MM

21

20Y-62-22830

BAND, WHITE

22

20Y-62-22770

HOSE, 700MM

23

20Y-62-22780

HOSE, 650MM

24

20Y-62-22850

BAND, GREEN

25

20Y-62-16540

HOSE, 800MM

26

20Y-62-22810

BAND, YELLOW

27

20Y-62-22840

BAND, BLACK

28

207-62-63410

HOSE, 570MM

29

20Y-62-22660

HOSE, 470MM

30

20Y-62-22680

HOSE, 520MM

Выбрано товаров: 30
