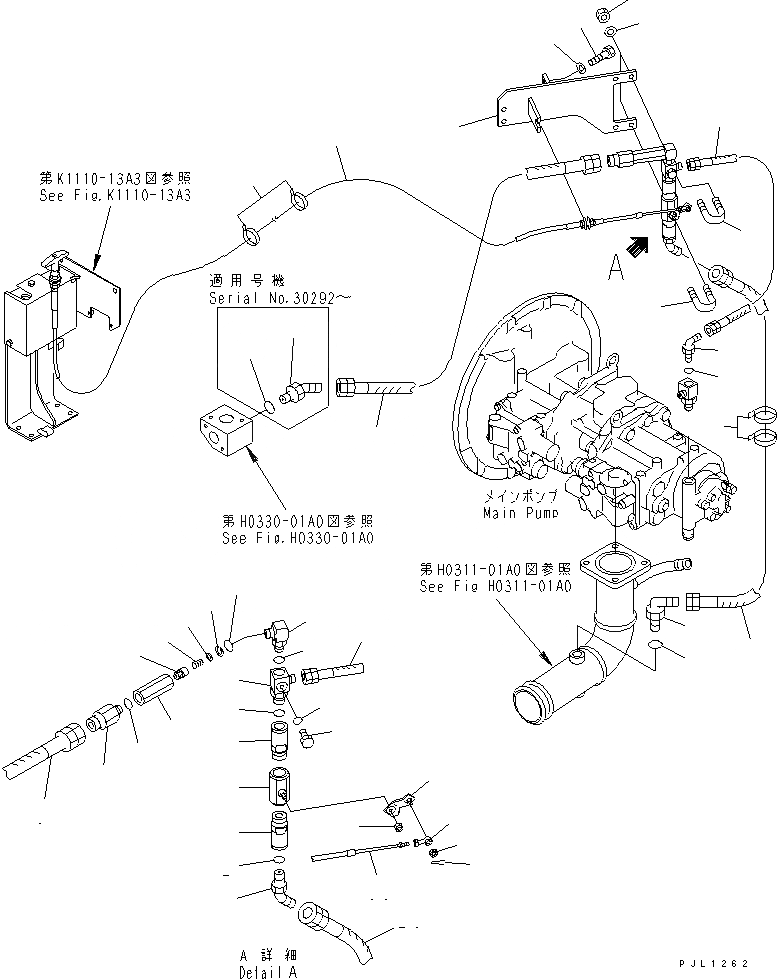

Запчасти Komatsu PC400-6C ВСАСЫВАЮЩАЯ ЛИНИЯ(BYPASS ДРЕНАЖН.)(№9-999) ГИДРАВЛИКА

1

07236-10628

ELBOW

2

07002-52434

O-RING

3

07102-30612

HOSE

4

207-62-32510

ADAPTER

5

208-62-19140

VALVE

6

208-62-62140

BRACKET

7

01010-81025

BOLT

8

01643-31032

WASHER

9

07283-23442

CLIP

10

01599-01011

NUT

11

01643-31032

WASHER

12

20Y-62-22341

TEE

13

07002-52434

O-RING

14

07002-51023

O-RING

15

07040-11007

PLUG

16

20Y-62-22310

ELBOW

17

07002-52034

O-RING

|$19

205-60-64300

CHECK VALVE ASS'Y

18

04065-01410

RING

19

205-60-64290

BODY

20

205-60-51390

POPPET

21

205-60-51410

SPRING

22

205-60-51420

SEAT

23

07002-52034

O-RING

24

20S-62-31340

UNION

25

07102-30307

HOSE

26

07235-10315

ELBOW

27

07002-52034

O-RING

28

07102-30608

HOSE

29

07235-10628

ELBOW

30

07002-52434

O-RING

30A

07236-10628

ELBOW

30B

07002-52434

O-RING

31

08034-00536

BAND

32

208-987-3910

LEVER

33

04250-40639

END

34

01590-10607

NUT

35

04050-11212

PIN

36

208-62-62151

CABLE

36

208-62-62150

CABLE

37

08034-00536

BAND
